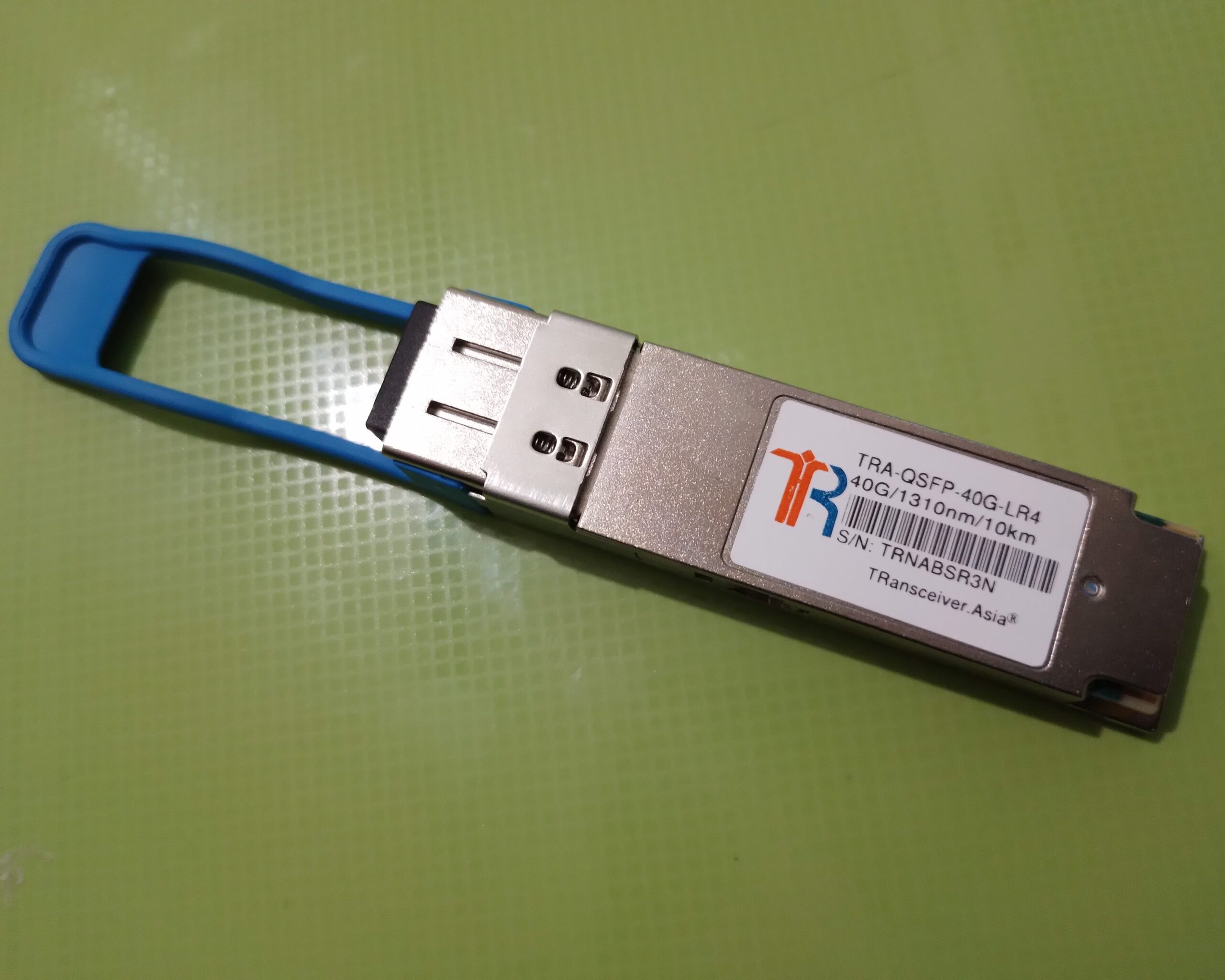

TRA-QSFP-40G-LR4
40GBASE-LR4 QSFP+ 1310nm 10km Module
- 40G QSFP+
- LC - Duplex PC
- 12.5 Mbit/s - 1.25 Gbit/s
- 41.2 Gbit/s
- Up to 10km
- Compliance Code: LR4
- ORDERING GUIDE
PART NUMBER
TRA-QSFP-40G-LR4
TRANSCEIVER DESCRIPTION
40GBASE-LR4 QSFP+ 1310nm 10km Module
- DATASHEET
- SPECIFICATIONS
FORM FACTOR:
QSFP+

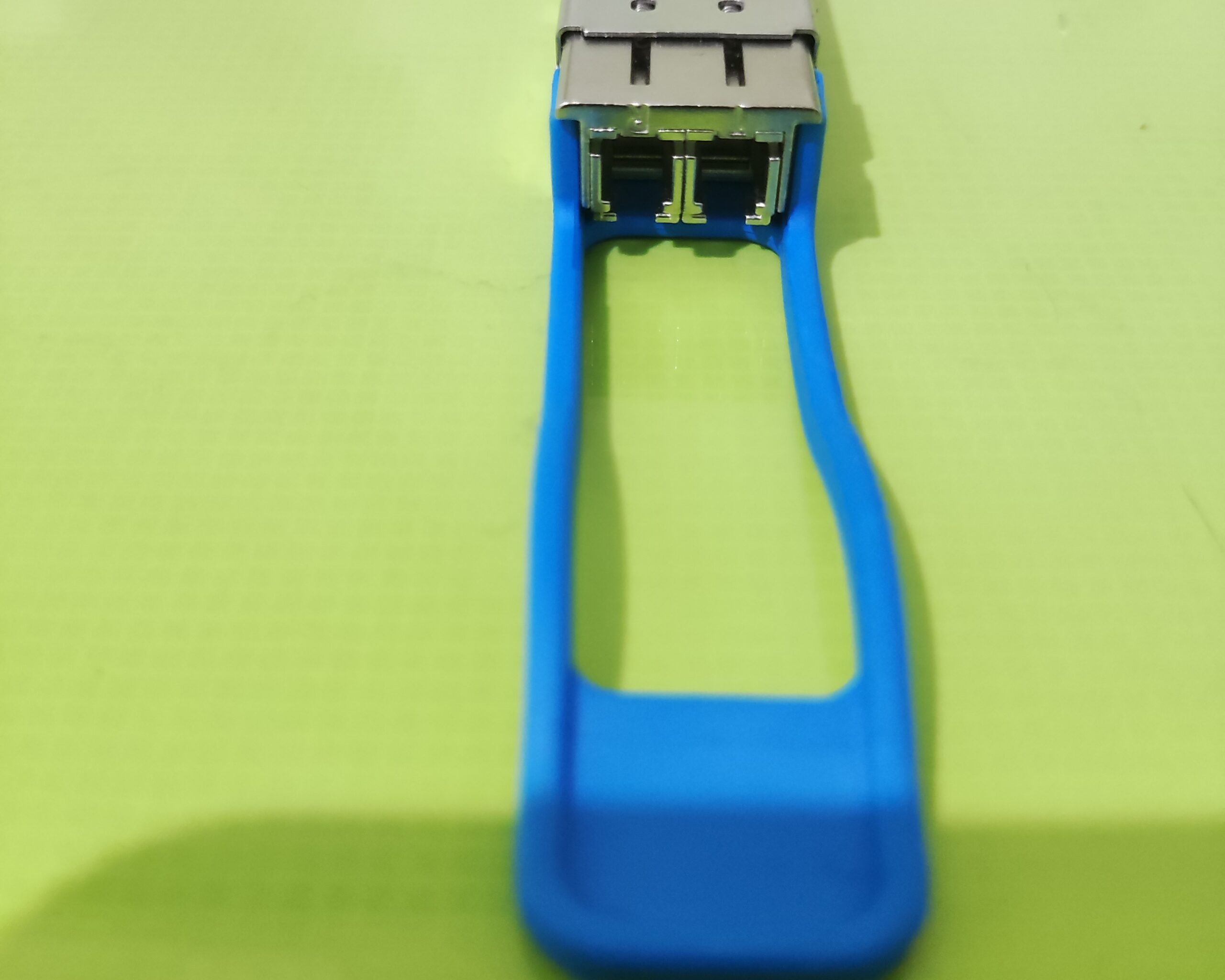

CONNECTOR / POLISH:
LC-Duplex PC
INTERFACE:
Singlemode
COMPLIANCE CODE:
LR4
OPERATING TEMPERATURE:
Standard
MODULATION:
NRZ
DISTANCE:
10 km
TEMPERATURE RANGE:
0°C - 70°C
LANE COUNT:
4x (Tx/Rx)
BANDWIDTH:
41.2 Gbit/s
BANDWIDTH PER LANE:
10.3 Gbit/s
DIGITAL DIAGNOSTIC MONITORING (DDM):
Yes, internally calibrated
POWER CONSUMPTION:
3.5 W
CDR:
noe
SGMII:
No
INBUILT FEC:
No
POWERBUDGET (DB):
4.5 dB
TRANSMIT MIN/MAX PER LANE:
-7 dBm / 2.3 dBm
RECEIVER MIN/MAX PER LANE:
-11.5 dBm / 2.3 dBm (overload) @40G
WAVELENGTH TX (TYPICAL):
1271 nm, 1291 nm, 1311 nm, 1331 nm
WAVELENGTH RX (TYPICAL):
1271 nm, 1291 nm, 1311 nm, 1331 nm
LASER:
DFB
RECEIVER TYPE:
PIN
MODULATION:
NRZ @40G
EXTINCTION RATIO:
3.5 dB
SUPPORTED PROTOCOLS:
40G Ethernet, 10G Ethernet
- COMPATIBLE WITH
- MSA Standard
- ADTRAN 1445500F2C
- Alcatel-Lucent Ent. QSFP-40G-LR
- Allied Telesis AT-QSFPLR4
- Arista 3rd_Party QSFP-40G-LR4
- Arista QSFP-40G-LR4
- Aruba Networks JH232A
- Avaya (ex. Nortel) AA1404001-E6
- Axon QSFP+ LR4
- Bittware QSFP+ LR4
- Brocade 40G-QSFP-LR4
- Check Point CPAC-TR-40LR-QSFP-10KM
- Chelsio SM40G-LR
- Ciena 160-9501-900
- Cisco (ex. Meraki) MA-QSFP-40G-LR4
- Cisco Systems QSFP-40G-LR4
- Cisco Systems QSFP-40G-LR4-S
- Cumulus Networks QSFP+ LR4
- Dell (ex. Force10) GP-QSFP-40GE-1LR
- Dell 407-BBGL
- Dell 407-BBGN
- Edge Core QSFP+ LR4
- Extreme (ex. Enterasys) 40GB-LR4-QSFP
- Extreme 10320
- F5 Networks OPT-0030
- Fluke Networks VX_00017
- Fortinet FG-TRAN-QSFP+LR
- Gigamon QSF-503
- Grassvalley QSFP+ LR4
- HP H3C JG661A
- Huawei QSFP-40G-LR4
- Juniper JNP-QSFP-40G-LR4
- Juniper QSFPP-40GBASE-LR4
- Juniper SRX-QSFP-40G-LR4
- Keymile QSFP+ LR4
- Keysight (ex. Ixia) QLR4-PLUS
- LANCOM SFP-LR-LC40
- Lenovo (ex. Blade Network) 00D6222
- MikroTik Q+85MP01D
- MRV QSFP-40G-LR
- napatech 802-0082-01-10
- Netgear AXLM762
- NetOptics QSFP+KT-LR
- Netscout 321-1659
- Nokia (ex. Alcatel-Lucent) 3FE46362AA
- Nokia (ex. Alcatel-Lucent) 3HE06485AA
- Nvidia (ex. Mellanox) MC2210511-LR4
- Packetlight QSFP+-LR-1102
- Palo Alto Networks PAN-QSFP-40GBASE-LR4
- Planet QSFP-40G-LR4
- Pure Storage FA-40Gb-Eth-SFP-LR
- Quanta QSFP+ LR4
- RAD QSFPP-1D
- Radware 9062216
- Raisecom UQSP-40G/S1/SW
- Ribbon (ex. ECI) OTP40_LR4
- Ruijie Networks 40G-QSFP-LR4-SM1310
- Solarflare QSFP+ LR4
- SonicWALL QSFP+ LR4
- Sophos QSFP-40G-SR4
- Spirent ACC-6077A
- Stormshield NA-TRANS-QSFP40-LR
- Telco Systems BTI-40GLR-DD-QSFP
- Trend Micro (ex. TippingPoint) TPNN0327
