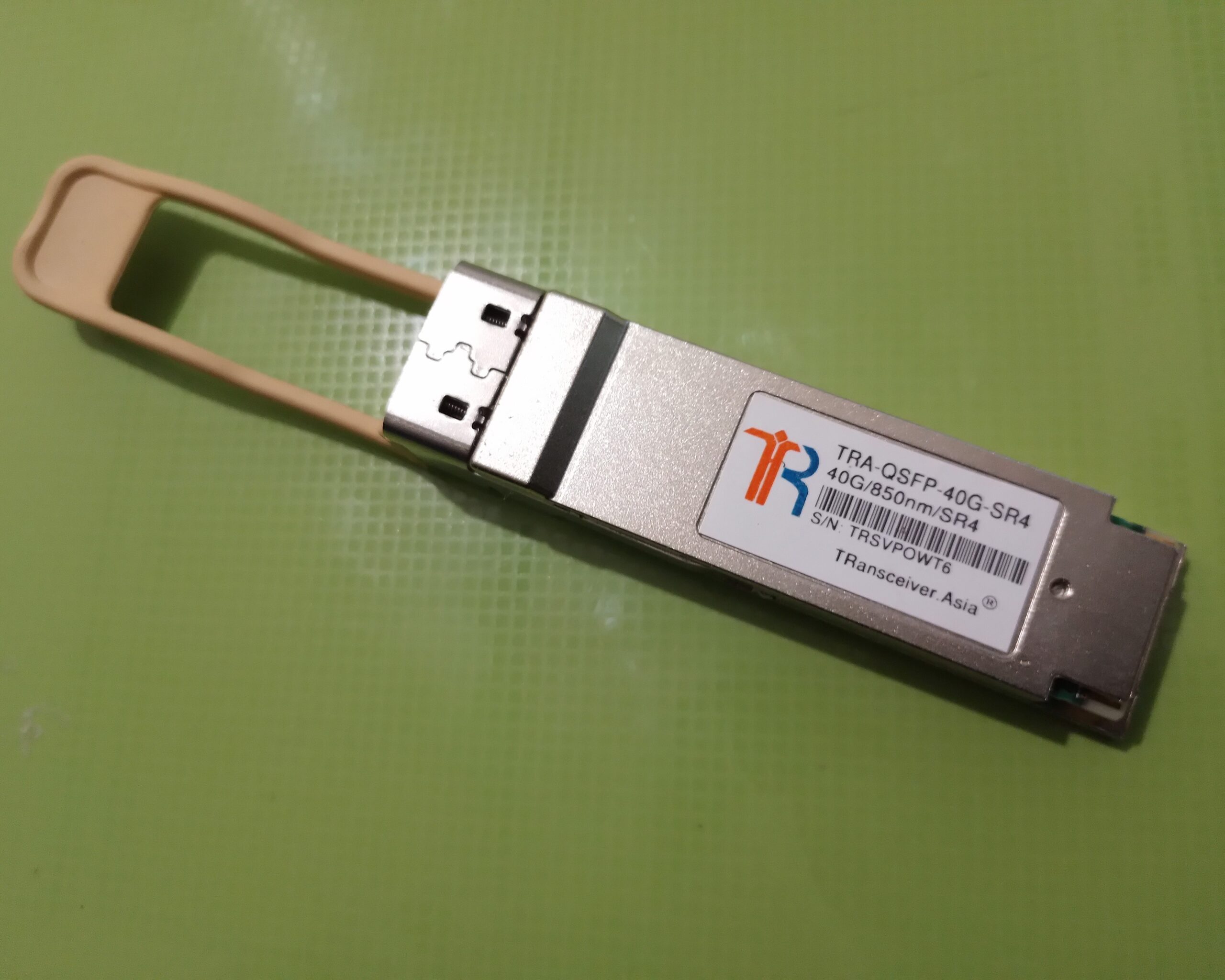

TRA-40G-SR4(A)

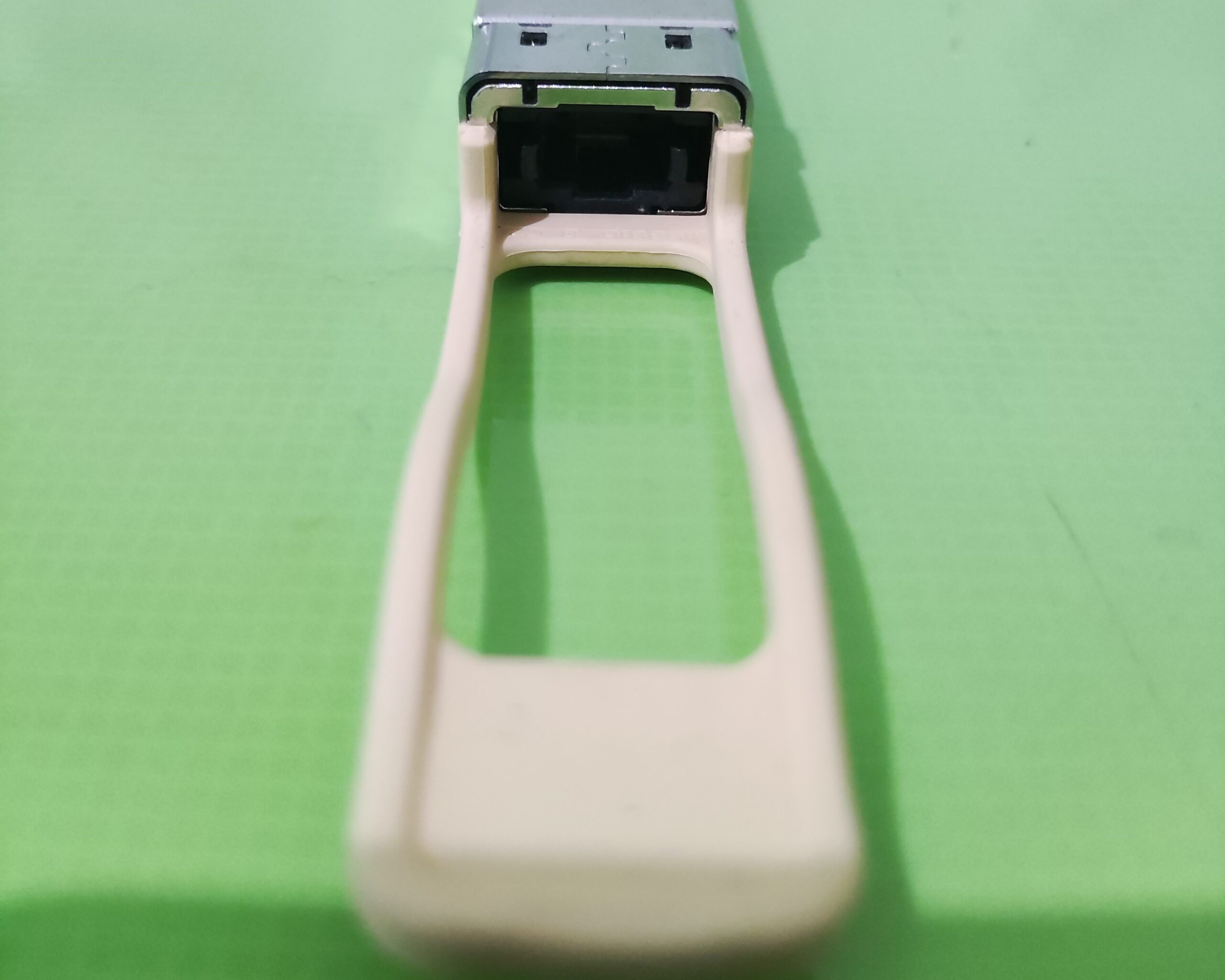

TRA-40G-SR4(B)
Instagram 40G SR

TRA-QSFP-40G-SR4

40GBASE-SR4 QSFP+ 850nm 100m Module, MPO Connector
TRA-QSFP-40G-SR4
QSFP 40G
MULTIMODE
  • 40G QSFP+
  • LC - Duplex
  • 41.2 Gbit/s
  • 0° C - 70° C
  • Up to 100 m
  • Compliance Code: SR4
λ 4x 850 nm
100m
↓↑ 40G
MTP/MPO-8/12
  • ORDERING GUIDE
PART NUMBER
TRA-QSFP-40G-SR4
TRANSCEIVER DESCRIPTION
40GBASE-SR4 QSFP+ 850nm 150m Module, MPO Connector
  • DATASHEET

📄 Datasheet TRA-QSFP-40G-SR4

  • SPECIFICATIONS
FORM FACTOR:
QSFP+
CONNECTOR / POLISH:
MTP/MPO-8/12 PC
INTERFACE:
Multimode
COMPLIANCE CODE:
SR4
OPERATING TEMPERATURE:
Standard
MODULATION:
NRZ
DISTANCE:
100 m
TEMPERATURE RANGE:
0°C - 70°C
LANE COUNT:
4x (Tx/Rx)
BANDWIDTH:
41.2 Gbit/s
BANDWIDTH PER LANE:
10.3 Gbit/s
DIGITAL DIAGNOSTIC MONITORING (DDM):
Yes, internally calibrated
POWER CONSUMPTION:
1.5 W
CDR:
none
SGMII:
No
INBUILT FEC:
No
POWERBUDGET (DB):
1.9 dB
TRANSMIT MIN/MAX PER LANE:
-7.6 dBm / 2.4 dBm
RECEIVER MIN/MAX PER LANE:
-9.5 dBm / 2.4 dBm (overload) @40G
WAVELENGTH TX (TYPICAL):
4x 850 nm
WAVELENGTH TX (RANGE):
840 - 860 nm
WAVELENGTH RX (TYPICAL):
4x 850 nm
WAVELENGTH RX (RANGE):
840 - 860 nm
RECEIVER TYPE:
PIN
MODULATION:
NRZ @40G
LASER:
VCSEL
EXTINCTION RATIO:
3.5 dB
SUPPORTED PROTOCOLS:
40G Ethernet, 10G Ethernet
  • COMPATIBLE WITH
  • MSA Standard
  • A10networks
  • AXSK-QSFP-SR
  • ADVA 1061800774-01
  • ADVA 1061800790-01
  • Alcatel-Lucent Ent. QSFP-40G-SR
  • Alcatel-Lucent Ent. QSFP-4X10G-SR
  • Allied Telesis AT QSFPSR4
  • Arista 3rd Party QSFP-40G-SR4
  • Arista QSFP-40G-SR4
  • Aruba Networks (ex HP Network) JH231A_CX
  • Aruba Networks (ex HP Network) JH231A_ProCurve
  • Avaya (ex Nortel) AA1404005-E6
  • Brocade 40G-QSFP-SR4
  • Brocade 40G-QSFP-SR4-INT
  • Brocade XBR-40G-SR4-INT-0286
  • Check Point CPAC-TR-40SR-QSFP-300m
  • Check Point CPAC-TR-40SR-SSM160-QSFP
  • Chelsio SM40G-SR
  • Ciena 160-9503-900
  • Cisco (ex Meraki) MA-QSFP-40G-SR4
  • Cisco Systems QSFP-40G-SR4
  • Cisco Systems QSFP-40G-SR4-S
  • Cumulus Networks QSFP+ SR4
  • Dell (ex Force10) GP-QSFP-40GE-1SR
  • Dell (ex Force10) QSFP-40G-SR4
  • Dell 407-10929
  • Dell 407-BBOZ
  • Dell 430-4593
  • Edge Core QSFP+ SR4
  • Emcore QSFP+ SR4
  • Extreme (ex Enterasys) 40GB-SR4-QSFP
  • Extreme 10319
  • F5 Networks OPT-0025
  • F5 Networks OPT-0036
  • Forcepoint IAC-QSFP-FOT
  • Fortinet FN-TRAN-QSFP+SR
  • Gigamon QSF-502
  • HP H3C JG325A
  • HP H3C JG325B
  • Huawei QSFP-40G-iSR4
  • Huawei QSFP-40G-SR4
  • Intel E40GQSFPSR
  • Juniper JNP-QSFP-40G-SR4
  • Juniper QFX-QSFP-40G-SR4
  • Juniper QFX-QSFP-40GE-ESR4
  • Juniper QFX-QSFP-40GE-SR4
  • Juniper QSFPP-40GBASE-SR4
  • Juniper QSFPP-4X10GE-SR
  • Juniper SRX-QSFP-40G-SR4
  • Kemp Technologies LM-QSFP-40G-SR
  • Keysight (ex Ixia) QMM850-PLUS
  • LANCOM SFP-SR-MPO40
  • Lenovo 49Y7885
  • MikroTik Q+85MP01D
    MRV QSFP-40G-SX
  • NetApp X-QSFP-40G-SR4-R6
  • NetApp X65402
  • NetOptics QSFP+KT-50SR4
  • Netscout 321-1646
  • Nokia (ex Alcatel-Lucent) 3HE07928AA
  • Nokia Networks 1AB474800006
  • Nokia Networks P317805 (FOCX)
    NoviFlow 400000509
  • Nvidia (ex Mellanox) MC2210411-SR4
  • Nvidia (ex Mellanox) MMA1B00-B150D
    Oracle X2124A-N
  • Packetlight QSFP+-SR-1102
  • Palo Alto Networks PAN-QSFP-40GBASE-SR4
  • Penguin Computing QSFP+ SR4
  • Planet QSFP-40G-SR4
  • Pure
  • Storage FA-40Gb-Eth-SFP-SR
  • QLogic QSFP+ SR4
  • Quanta QSFP+ SR4
  • Radware 9062226
  • Solarflare SFM40G-SR4
    SonicWALL 02-SSC-0381
  • Spirent ACC-6076A
  • Spirent ACC-6089A
  • Stormshield NA-TRANS-QSFP40-SR
  • Supermicro AOM-TQSFP-79EQPZ-AVG
  • Telco Systems BTI-40GSR-DD-QSFP
  • Trend Micro (ex TippingPoint) TPNN0067
    VSS Monitoring VX_00003
    WatchGuard WG8022
