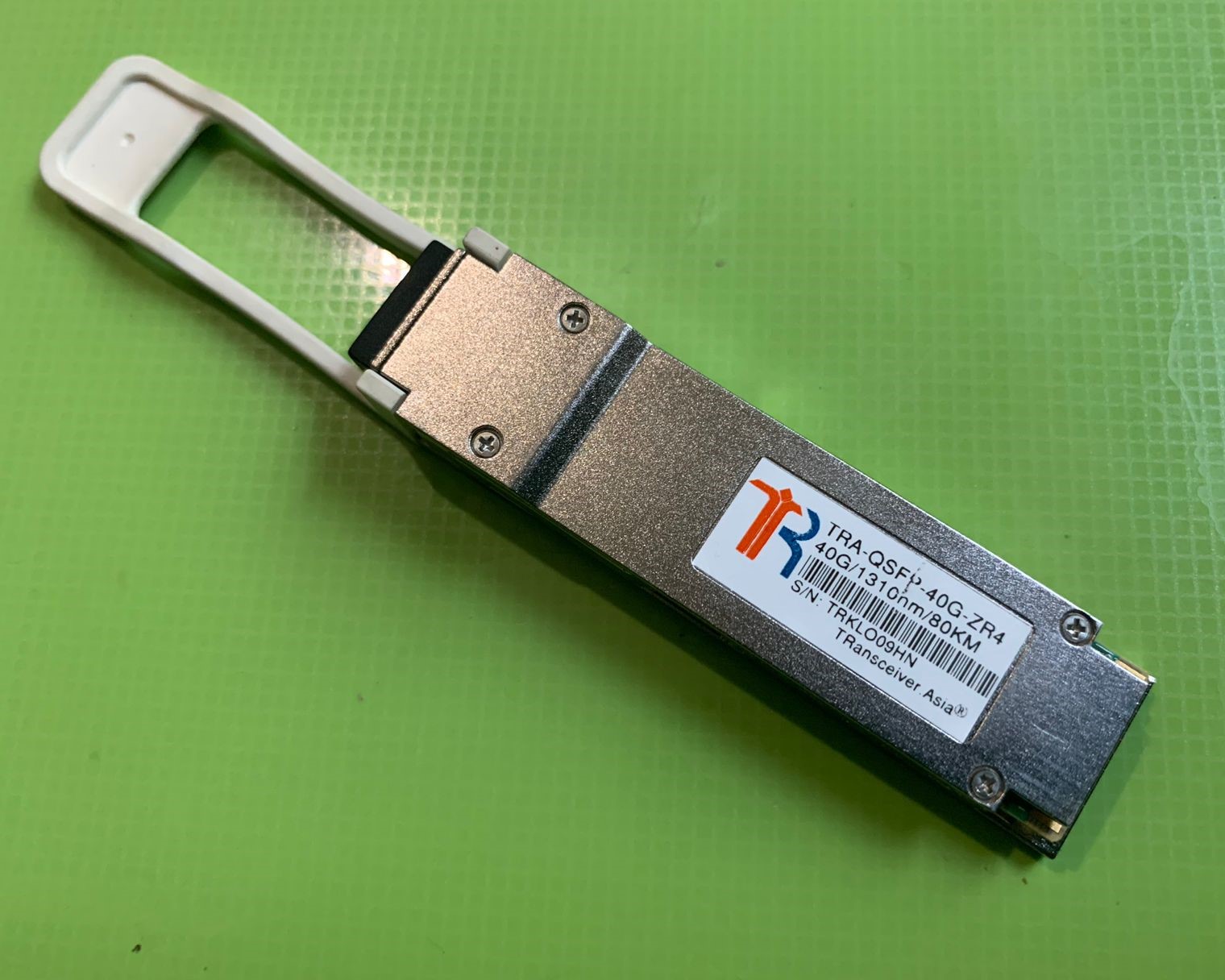

QSFP TRA 40G-ZR4

TRA-100G-ZR4(B)

Instagram 40G-ZR

TRA-QSFP-40G-ZR4

40GBASE-ZR4 QSFP+ 1310nm 80km Module

PART NUMBER

TRA-QSFP-40G-ZR4

TRANSCEIVER DESCRIPTION

40GBASE-ZR4 QSFP+ 1310nm 80km Module

📄 Datasheet TRA-QSFP-40G-ZR4

FORM FACTOR:

QSFP+

CONNECTOR / POLISH:

LC-Duplex PC

INTERFACE:

Singlemode

COMPLIANCE CODE:

ZR4

OPERATING TEMPERATURE:

Standard

MODULATION:

NRZ

DISTANCE:

80 km

TEMPERATURE RANGE:

0°C - 70°C

LANE COUNT:

4x (Tx/Rx)

BANDWIDTH:

41.25 Gbit/s - 44.8 Gbit/s

BANDWIDTH PER LANE:

10.31 Gbit/s - 11.2 Gbit/s

DIGITAL DIAGNOSTIC MONITORING (DDM):

Yes, internally calibrated

POWER CONSUMPTION:

5 W

CDR:

none

SGMII:

No

INBUILT FEC:

No

POWERBUDGET (DB):

26 dB

TRANSMIT MIN/MAX PER LANE:

3 dBm / 7 dBm

RECEIVER MIN/MAX PER LANE:

-23 dBm / -6 dBm (overload) @40G

WAVELENGTH TX (TYPICAL):

1295.6 nm, 1300 nm, 1304.6 nm, 1309.1 nm

WAVELENGTH TX (RANGE):

1295.6 nm, 1300 nm, 1304.6 nm, 1309.1 nm

LASER:

EML

RECEIVER TYPE:

APD

MODULATION:

NRZ @40G

EXTINCTION RATIO:

5.5 dB

SUPPORTED PROTOCOLS:

40G Ethernet

MSA Standard
Alcatel-Lucent Ent. QSFP-40G-LR
Arista 3rd_Party QSFP-40G-ER4
Arista QSFP-40G-ER4
Aruba Networks JH232A_ProCurve
Aruba Networks (ex. HP Network) JH232A_CX
Avaya (ex. Nortel) AA1404003-E6
Brocade 40G-QSFP-ER4
Cisco Systems QSFP-40G-ER4
Cumulus Networks QSFP+ ER4
Dell 407-BBVI
Edge Core QSFP+ ER4
Extreme 10335
HP H3C JG661A
Huawei QSFP-40G-ER4
Juniper JNP-QSFP-40GE-ER4
Juniper SRX-40G-QSFP-ER4
MikroTik Q+85MP01D
NetOptics QSFP+KT-LR
Nokia (ex. Alcatel-Lucent) 3HE11240AA
NoviFlow 400000514
Nvidia (ex. Mellanox) MC2210511-LR4
Packetlight QSFP+-LR-1102
Palo Alto Networks PAN-QSFP-40GBASE-ER4
Solarflare QSFP+ ER4
