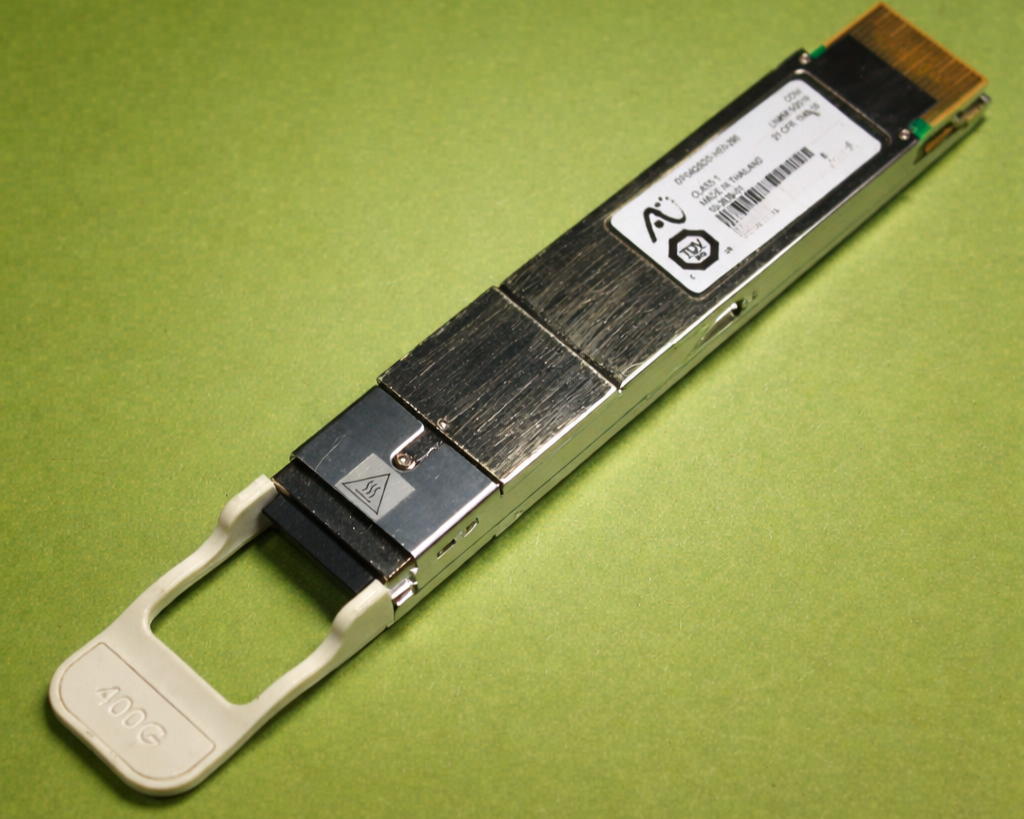

ACACIA-QSFP-DD-400G-COHERENT HIGH POWER
400GBASE-ZR Coherent QSFP-DD transceiver module for SMF, High Power, Tx (tunable), Rx (coherent), dual LC duplex connector, 480km
- 400G QSFP-DD
- LC - Duplex
- 425 Gbit/s
- 0° C - 70° C
- Up to 480Km
- Compliance Code: ZR+
- ORDERING GUIDE
PART NUMBER
ACACIA-QSFP-DD-400G-COH
TRANSCEIVER DESCRIPTION
Acacia - 400GBASE-ZR Coherent QSFP-DD transceiver module for SMF, Low Power, Tx (tunable), Rx (coherent), dual LC duplex connector, 480km
- DATASHEET
- SPECIFICATIONS
FORM FACTOR:
QSFP - DD
CONNECTOR / POLISH:
LC - Duplex PC
INTERFACE:
Singlemode high-power DWDM
COMPLIANCE CODE:
ZR+
OPERATING TEMPERATURE:
Standard
MODULATION:
DP-16QAM
DISTANCE:
480 Km
TEMPERATURE RANGE:
0°C - 70°C
BANDWIDTH:
425 Gbit/s
DIGITAL DIAGNOSTIC MONITORING (DDM):
Yes, internally calibrated
POWER CONSUMPTION:
22.5 W
CDR:
TX and RX
SGMII:
No
INBUILT FEC:
Yes, cFEC, OFEC
POWERBUDGET (DB):
13 dB
TRANSMIT MIN/MAX PER LANE:
-5 dBm / 1 dBm
RECEIVER MIN/MAX PER LANE:
-12 dBm / 0 dBm (overload) @400G
WAVELENGTH TX (TYPICAL):
tunable Coherent high-power DWDM
TX TUNABLE (RANGE):
1528.77 - 1567.13 nm
WAVELENGTH RX (RANGE):
1528.8 - 1567.1 nm
LASER:
EML
RECEIVER TYPE:
Coherent
MODULATION:
DP-16QAM @400G
EXTINCTION RATIO:
0.5 dB
SUPPORTED PROTOCOLS:
300G Ethernet, 4x 100G Ethernet, 400G Ethernet, 200G Ethernet, 100G Ethernet
- COMPATIBLE WITH
- Cisco Systems DP04QSDD-HE0
- Juniper JCO400-QDD-ZR-M-HP
- Nokia (ex. Alcatel-Lucent) 3HE18360AA compatible
