Products

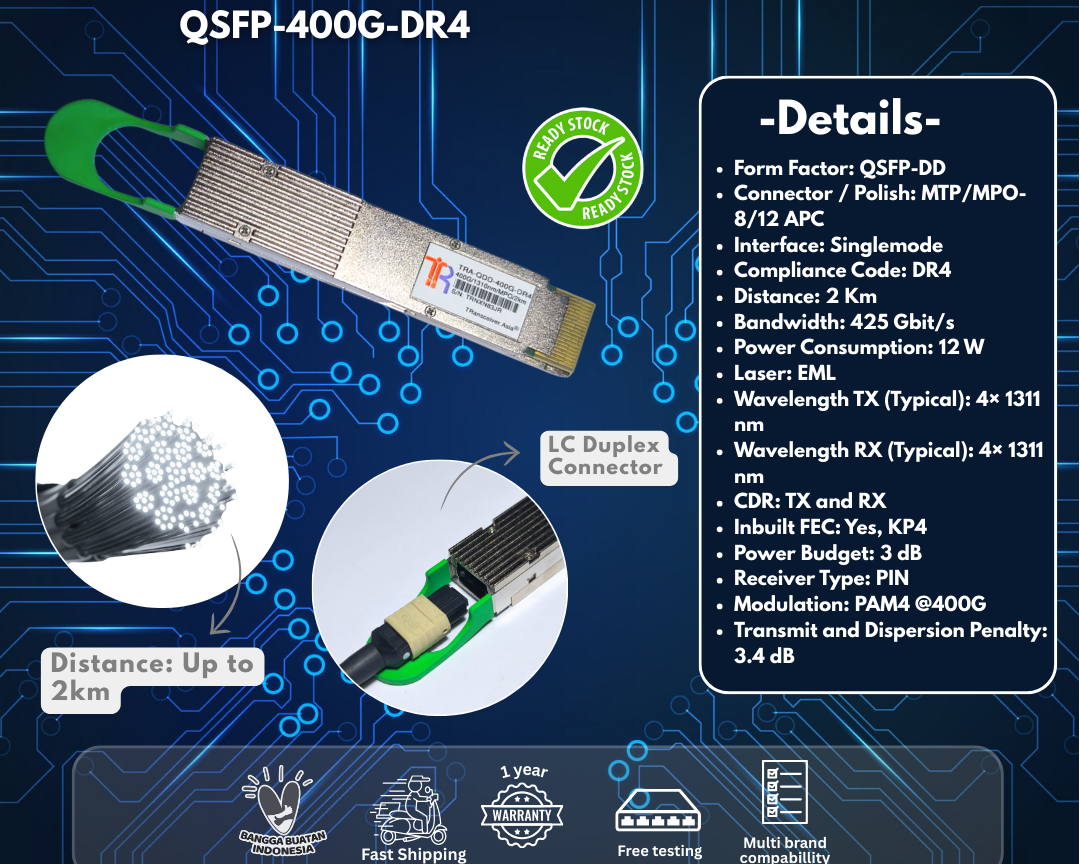

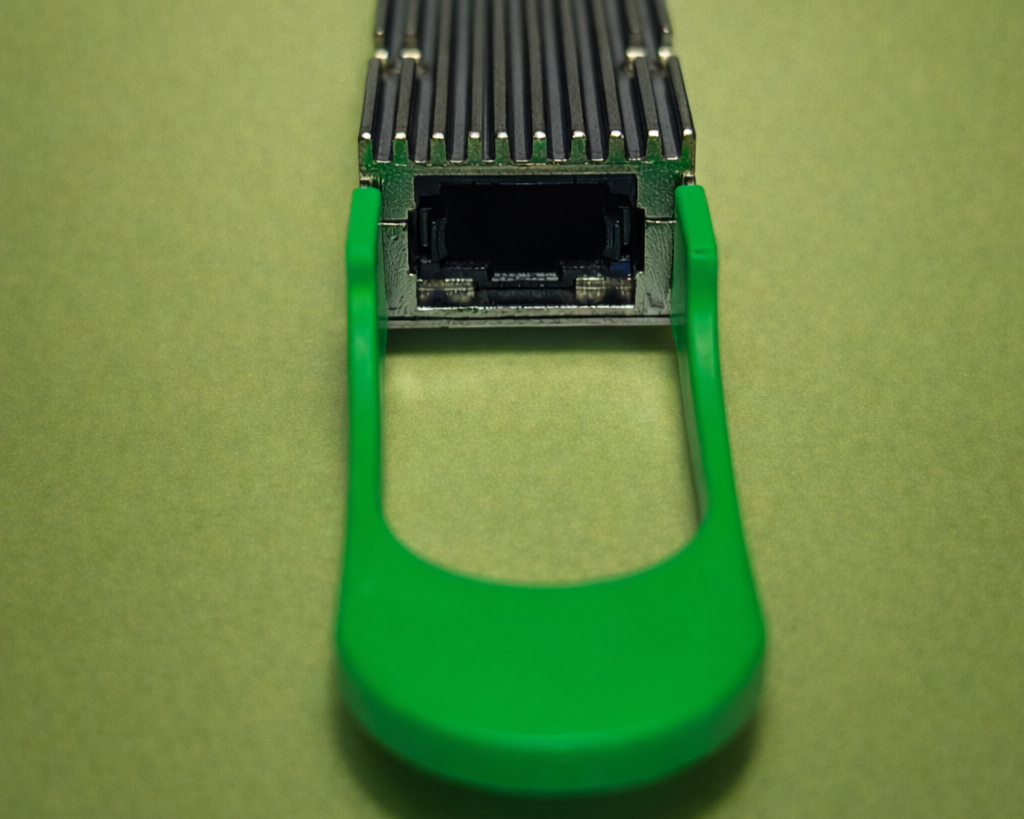

TRA-QDD-400G-DR4
400GBASE-DR4 QSFP-DD 1310nm 500m MPO
- 400G QSFP-DD
- MTP/MPO-8/12 APC
- 425 Gbit/s
- 0° C - 70° C
- Up to 2Km
- Compliance Code: DR4
- ORDERING GUIDE
PART NUMBER
TRA-QDD-400G-DR4
TRANSCEIVER DESCRIPTION
400GBASE-DR4 QSFP-DD 1310nm 2Km MPO
- DATASHEET
- SPECIFICATIONS
FORM FACTOR:
QSFP-DD
CONNECTOR / POLISH:
MTP/MPO-8/12 APC
INTERFACE:
Singlemode
COMPLIANCE CODE:
DR4
OPERATING TEMPERATURE:
Standard
MODULATION:
PAM4
DISTANCE:
2Km m
TEMPERATURE RANGE:
0°C - 70°C
LANE COUNT:
4x (Tx/Rx)
BANDWIDTH:
425 Gbit/s
BANDWIDTH PER LANE:
106.25 Gbit/s
DIGITAL DIAGNOSTIC MONITORING (DDM):
Yes, internally calibrated
POWER CONSUMPTION:
12 W
CDR:
TX and RX
SGMII:
No
INBUILT FEC:
Yes, KP4
POWERBUDGET (DB):
3 dB
TRANSMIT MIN/MAX PER LANE:
-5.9 dBm / 4 dBm (overload) @400G
RECEIVER MIN/MAX PER LANE:
-5.9 dBm / 4 dBm (overload) @400G
WAVELENGTH TX (TYPICAL):
4x 1310 nm
WAVELENGTH TX (RANGE):
1304.5 - 1317.5 nm
WAVELENGTH RX (TYPICAL):
4x 1310 nm
LASER:
EML
RECEIVER TYPE:
PIN
MODULATION:
PAM4 @400G
EXTINCTION RATIO:
3.5 dB
SUPPORTED PROTOCOLS:
4x 100G Ethernet, 400G Ethernet, 100G Ethernet
- COMPATIBLE WITH
- Arista 3rd_Party
- QDD-400G-DR4
- Arista QDD-400G-DR4
- Cisco Systems QDD-400G-DR4-S
- Juniper QDD-400G-DR4
- Nokia (ex. Alcatel-Lucent) 3HE15271AA
- Nvidia (ex. Mellanox) MMS1V00-WM
- Supermicro QDD-400G-DR4
