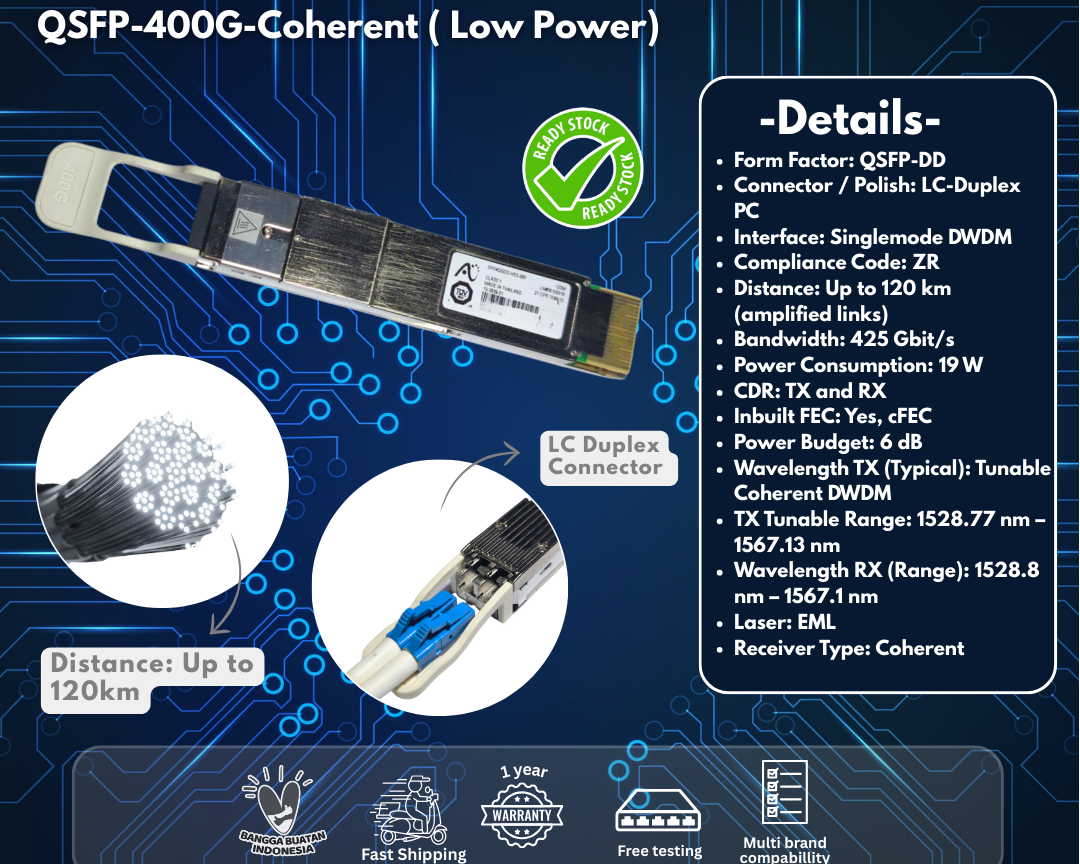

ACACIA-QSFP-DD-400G-COHERENT LOW POWER
400GBASE-ZR Coherent QSFP-DD transceiver module for SMF, Low Power, Tx (tunable), Rx (coherent), dual LC duplex connector, 120km
- 400G QSFP-DD
- LC - Duplex
- 425 Gbit/s
- 0° C - 70° C
- Up to 120 Km
- Compliance Code: ZR
- ORDERING GUIDE
PART NUMBER
ACACIA-QSFP-DD-400G-COH
TRANSCEIVER DESCRIPTION
400GBASE-ZR Coherent QSFP-DD transceiver module for SMF, Low Power, Tx (tunable), Rx (coherent), dual LC duplex connector, 120km
- DATASHEET
- SPECIFICATIONS
FORM FACTOR:
QSFP - DD
CONNECTOR / POLISH:
LC - Duplex PC
INTERFACE:
Singlemode DWDM
COMPLIANCE CODE:
ZR
OPERATING TEMPERATURE:
Standard
MODULATION:
DP-16QAM
DISTANCE:
120 Km
TEMPERATURE RANGE:
0°C - 70°C
BANDWIDTH:
425 Gbit/s
DIGITAL DIAGNOSTIC MONITORING (DDM):
Yes, internally calibrated
POWER CONSUMPTION:
19 W
CDR:
TX and RX
SGMII:
No
INBUILT FEC:
Yes, cFEC
POWERBUDGET (DB):
6 dB
TRANSMIT MIN/MAX PER LANE:
-10 dBm / -6 dBm
RECEIVER MIN/MAX PER LANE:
-12 dBm / 0 dBm (overload) @400G
WAVELENGTH TX (TYPICAL):
tunable Coherent DWDM
TX TUNABLE(RANGE):
1528.77 - 1567.13 nm
WAVELENGTH RX (RANGE):
1528.8 - 1567.1 nm
LASER:
EML
RECEIVER TYPE:
COHERENT
MODULATION:
DP-16QAM @400G
TRANSMIT AND DISPERSION PENALTY :
0.5 dB
CHROMATIC DISPERSION TOLERANCE :
0 ps/nm to 2,400 ps/nm @400G
SUPPORTED PROTOCOLS:
400G Ethernet
- COMPATIBLE WITH
- Cisco Systems DP04QSDD-E20-190
- Juniper QDD-400G-ZR
- Juniper QSFP-DD 400G-FR4
- Nokia Networks 3HE16564AA
