TRA-QSFP-DD-400G-FR4

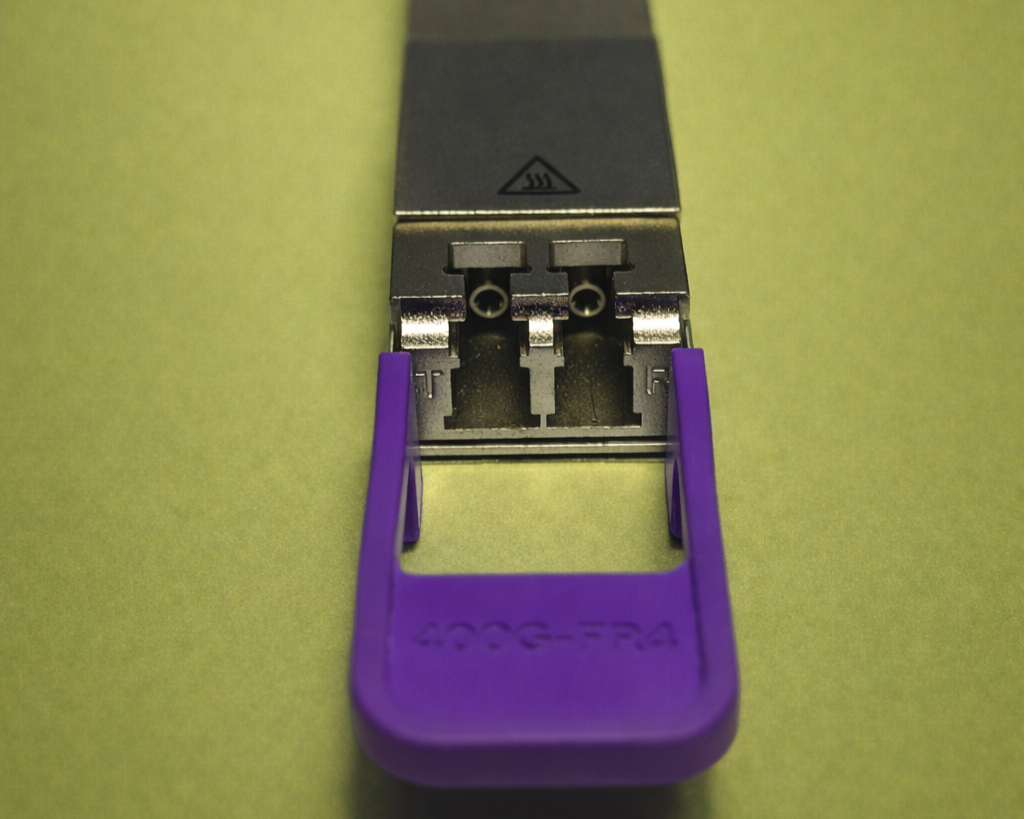

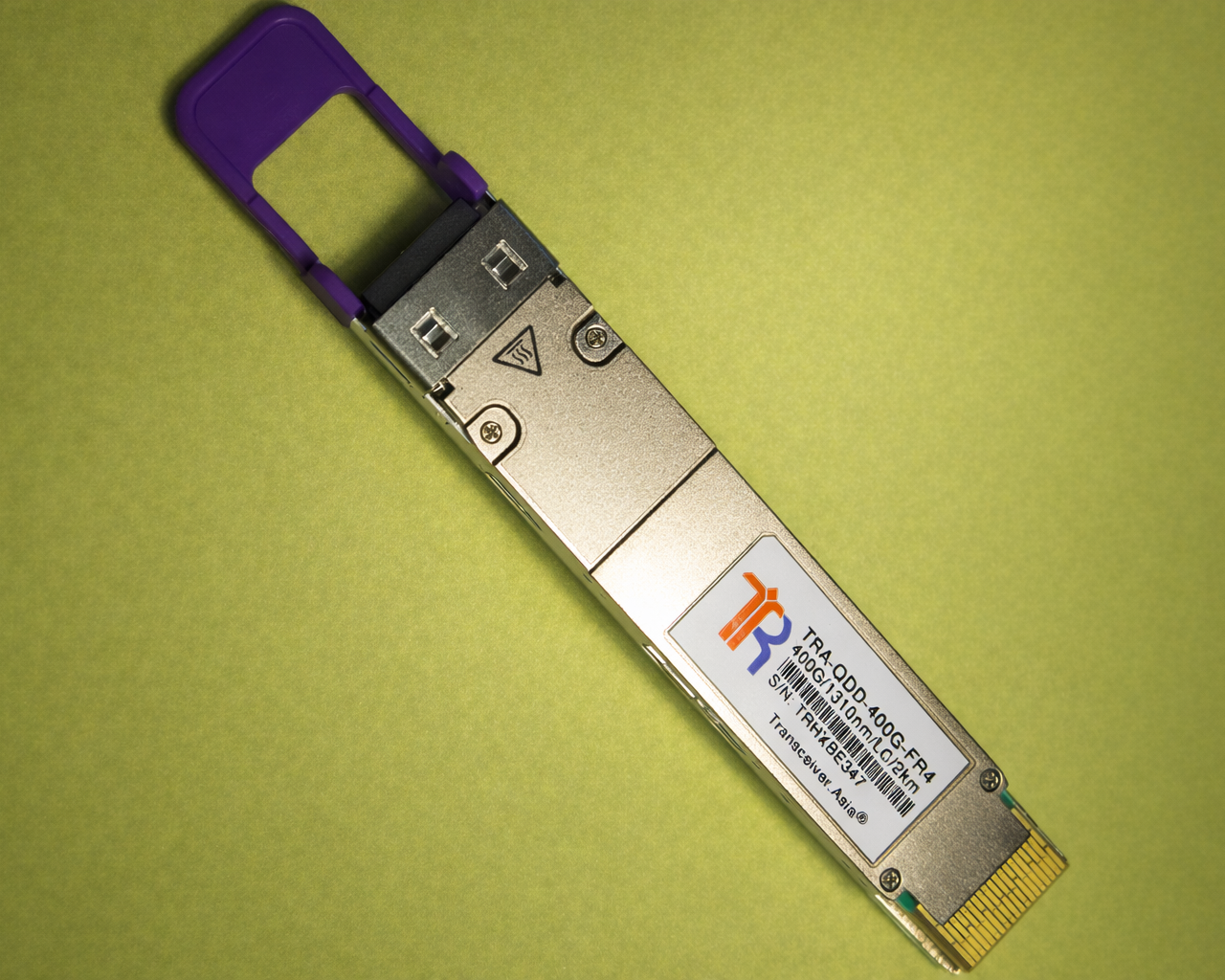

400GBASE-FR4 QSFP-DD transceiver module for SMF, 1310-nm, LC duplex connector, 2km
- 400G QSFP-DD
- LC - Duplex
- 425 Gbit/s
- 0° C - 70° C
- Up to 2Km
- Compliance Code: FR4
- ORDERING GUIDE
PART NUMBER
TRA-QSFP-DD-400G-FR4
TRANSCEIVER DESCRIPTION
1000BASE-T SFP Copper RJ-45 100m Module
- DATASHEET
- SPECIFICATIONS

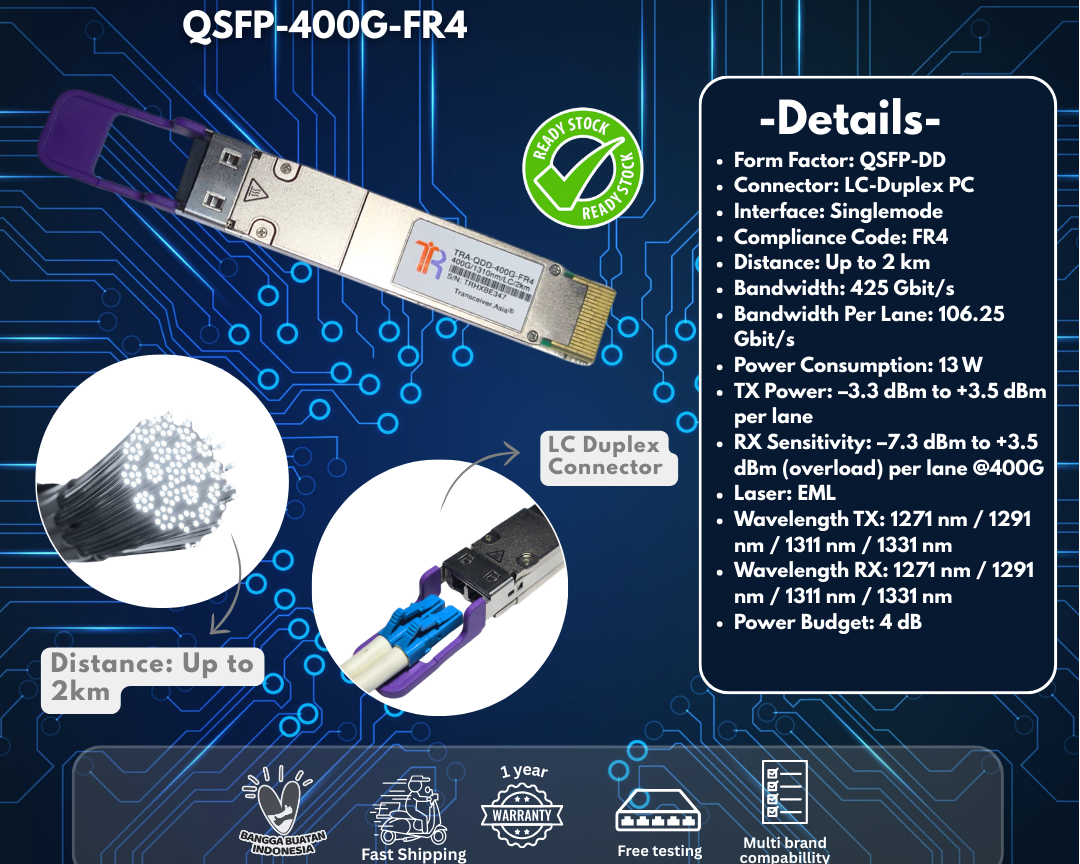

FORM FACTOR:
QSFP - DD
CONNECTOR / POLISH:
LC -Duplex PC
INTERFACE:
Singlemode
COMPLIANCE CODE:
T
OPERATING TEMPERATURE:
Standard
MODULATION:
PAM4
DISTANCE:
2Km
TEMPERATURE RANGE:
0°C - 70°C
LANE COUNT:
4x (Tx/Rx)
BANDWIDTH:
425 Gbit/s
BANDWIDTH PER LANE:
106.25 Gbit/s
DIGITAL DIAGNOSTIC MONITORING (DDM):
Yes, internally calibrated
POWER CONSUMPTION:
13 W
CDR:
TX and RX
SGMII:
No
INBUILT FEC:
No
POWERBUDGET (DB):
4 dB
TRANSMIT MIN/MAX PER LANE:
-3.3 dBm / 3.5 dBm
RECEIVER MIN/MAX PER LANE:
-7.3 dBm / 3.7 dBm (overload) @400G
WAVELENGTH TX (TYPICAL):
1271 nm, 1291 nm, 1311 nm, 1331 nm
WAVELENGTH RX (TYPICAL):
1271 nm, 1291 nm, 1311 nm, 1331 nm
LASER:
EML
RECEIVER TYPE:
PIN
MODULATION:
PAM @400G
EXTINCTION RATIO:
3.5 dB
SUPPORTED PROTOCOLS:
400G Ethernet
- COMPATIBLE WITH
- Arista 3rd_Party QDD-400G-FR4
- Arista QDD-400G-FR4
- Cisco Systems QDD-400G-FR4-S
- Juniper QDD-400G-FR4
- Nokia (ex. Alcatel-Lucent) 3AL82188AA
- Nokia (ex. Alcatel-Lucent) 3HE15272AA
- Nvidia (ex. Mellanox) MMS1V50-WM
- Ribbon (ex. ECI) OTR400Q56DD_FR4
