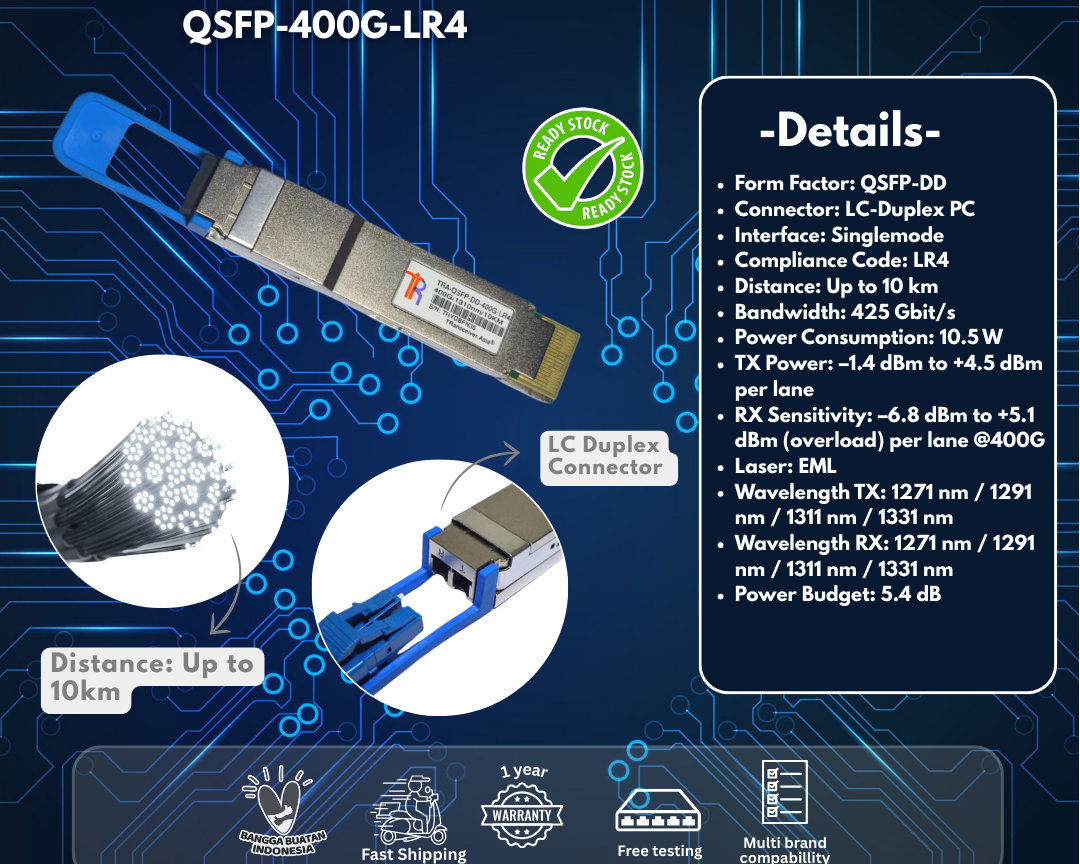

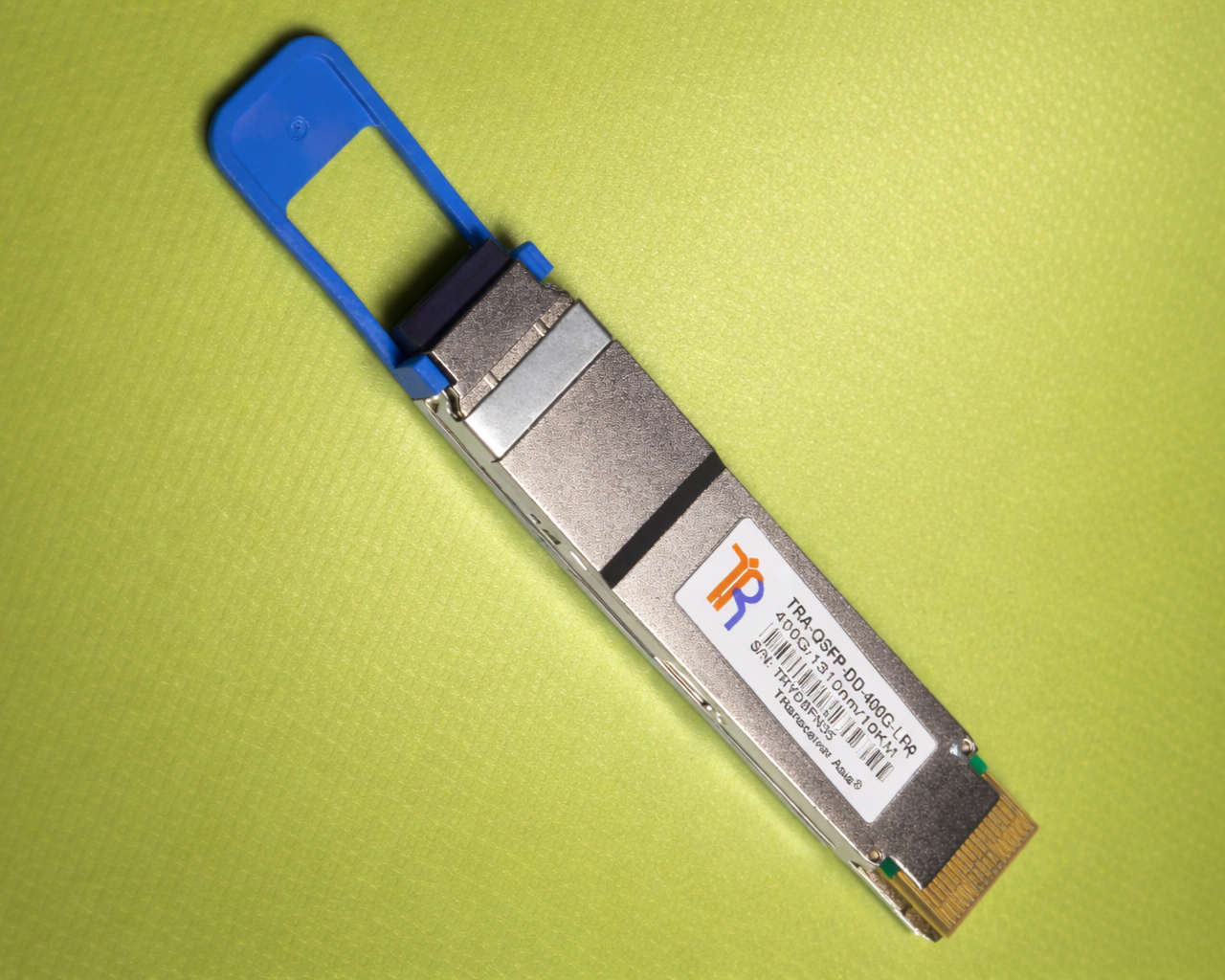

TRA-QSFP-DD-400G-LR4
400GBASE-LR4 QSFP-DD transceiver module for SMF, 1310-nm, LC duplex connector,
- 400G QSFP-DD
- LC - Duplex
- 425 Gbit/s
- 0° C - 70° C
- Up to 10 Km
- Compliance Code: LR4
- ORDERING GUIDE
PART NUMBER
TRA-QSFP-DD-400G-LR4
TRANSCEIVER DESCRIPTION
400GBASE-LR4 QSFP-DD transceiver module for SMF, 1310-nm, LC duplex connector,
- DATASHEET
- SPECIFICATIONS
FORM FACTOR:
QSFP-DD
CONNECTOR / POLISH:

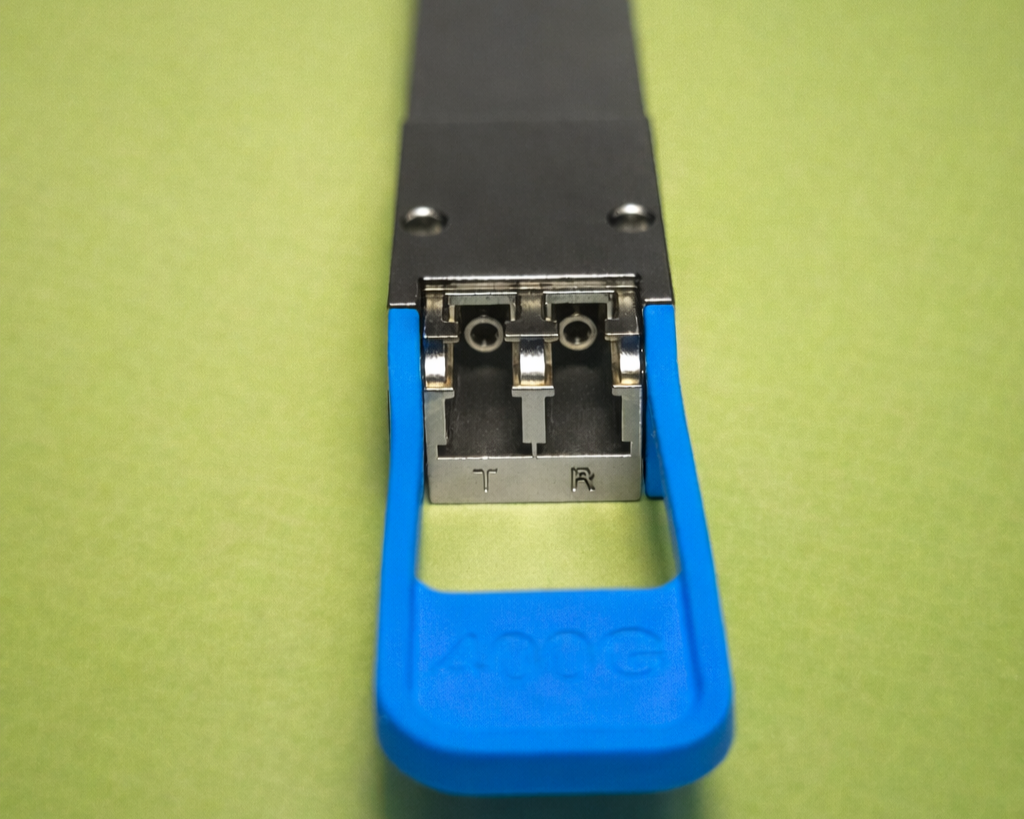

LC - Duplex PC
INTERFACE:
Singlemode
COMPLIANCE CODE:
LR4
OPERATING TEMPERATURE:
Standard
MODULATION:
PAM4
DISTANCE:
10 Km
TEMPERATURE RANGE:
0°C - 70°C
LANE COUNT:
4x (Tx/Rx)
BANDWIDTH:
425 Gbit/s
BANDWIDTH PER LANE:
106.25 Gbit/s
DIGITAL DIAGNOSTIC MONITORING (DDM):
Yes, internally calibrated
POWER CONSUMPTION:
10.5 W
CDR:
TX and RX
SGMII:
No
INBUILT FEC:
No
POWERBUDGET (DB):
5.4 dB
TRANSMIT MIN/MAX PER LANE:
-1.4 dBm / 4.5 dBm
RECEIVER MIN/MAX PER LANE:
-6.8 dBm / 5.1 dBm (overload) @400G
WAVELENGTH TX (TYPICAL):
1271 nm, 1291 nm, 1311 nm, 1331 nm
WAVELENGTH RX (TYPICAL):
1271 nm, 1291 nm, 1311 nm, 1331 nm
LASER:
EML
RECEIVER TYPE:
PIN
MODULATION:
PAM4 @400G
EXTINCTION RATIO:
3.5 dB
SUPPORTED PROTOCOLS:
400G Ethernet
- COMPATIBLE WITH
- Arista 3rd_Party QDD-400G-LR4
- Arista QDD-400G-LR4
Ciena 160-9603-900 - Cisco Systems QDD-400G-LR4-S
- Huawei 34160024-001
- Juniper QDD-400G-LR4-10
- Nokia (ex. Alcatel-Lucent) 3HE16568AA
- Nvidia (ex. Mellanox) MMS1V90-WR
- Ribbon (ex. ECI) OTR400Q56DD_LR4L
