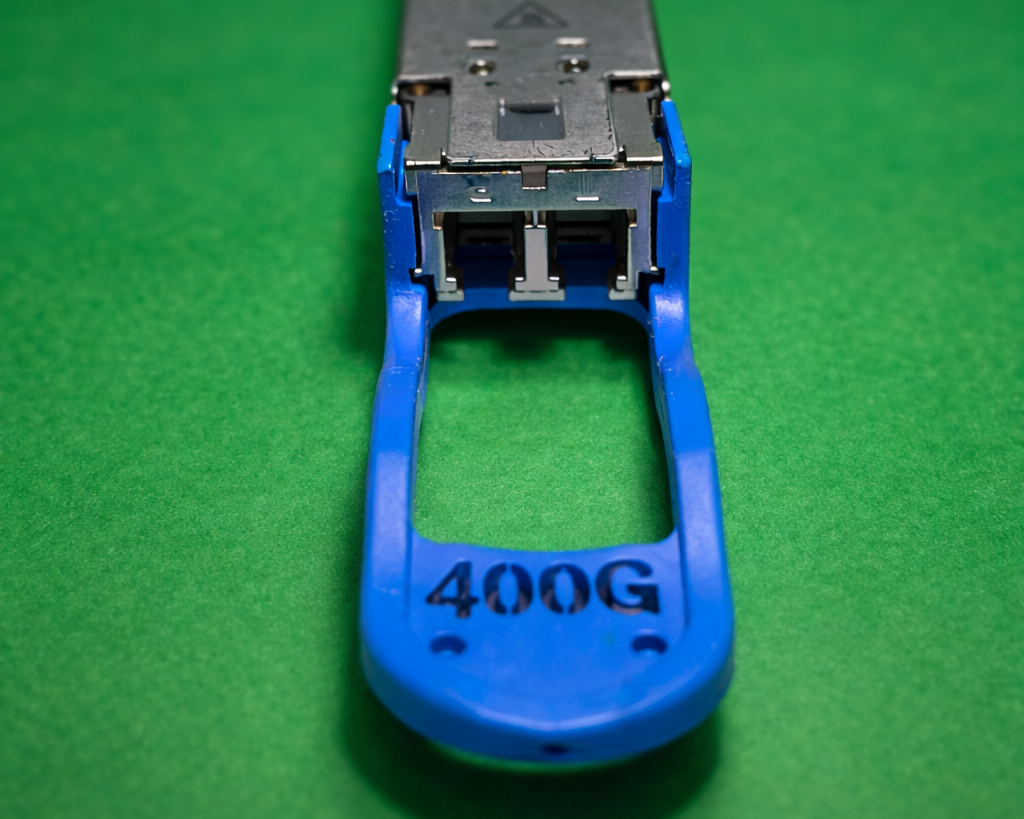

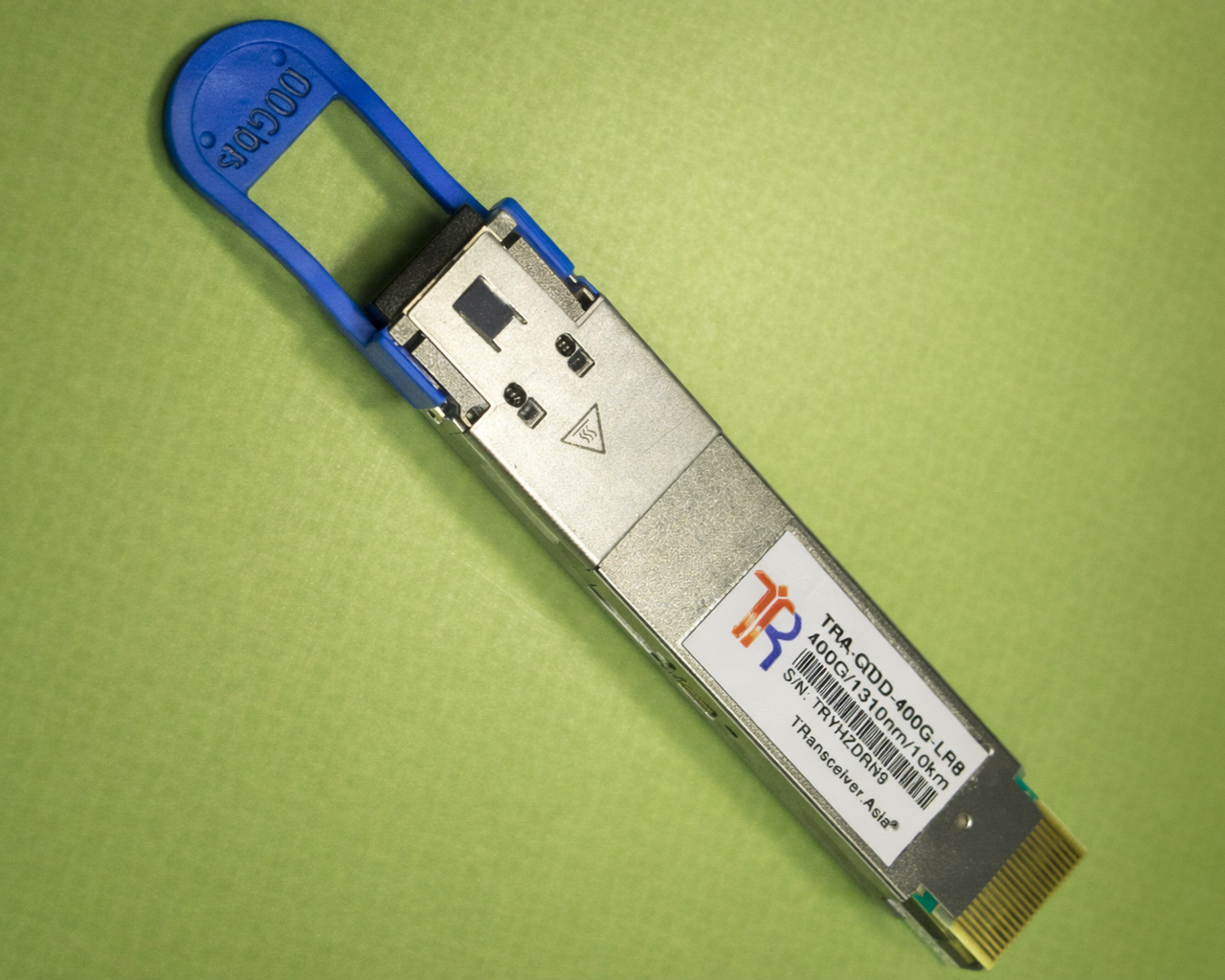

TRA-QSFP-DD-400G-LR8
TRansceiver Asia - 400GBASE-LR8 QSFP-DD 1310nm 10KM LC DDM
- 400G QSFP-DD
- LC - Duplex
- 425 Gbit/s
- 0° C - 70° C
- Up to 10 Km
- Compliance Code: LR8
- ORDERING GUIDE
PART NUMBER
TRA-QSFP-DD-400G-LR8
TRANSCEIVER DESCRIPTION
TRansceiver Asia - 400GBASE-LR8 QSFP-DD 1310nm 10KM LC DDM
- DATASHEET
- SPECIFICATIONS
FORM FACTOR:
QSFP-DD
CONNECTOR / POLISH:
LC - Duplex PC
INTERFACE:
Singlemode
COMPLIANCE CODE:
LR8
OPERATING TEMPERATURE:
Standard
MODULATION:
PAM4
DISTANCE:
100 m
TEMPERATURE RANGE:
0°C - 70°C
LANE COUNT:
8x (Tx/Rx)
BANDWIDTH:
425 Gbit/s
BANDWIDTH PER LANE:
53.13 Gbit/s
DIGITAL DIAGNOSTIC MONITORING (DDM):
Yes, internally calibrated
POWER CONSUMPTION:
14.5 W
CDR:
TX and RX
SGMII:
No
INBUILT FEC:
No
POWERBUDGET (DB):
6.3 dB
TRANSMIT MIN/MAX PER LANE:
-2.8 dBm / 5.7 dBm
RECEIVER MIN/MAX PER LANE:
-9.1 dBm / 5.3 dBm (overload) @400G
WAVELENGTH TX (TYPICAL):
1273.5 nm, 1277.9 nm, 1282.3 nm, 1286.7 nm, 1295.6 nm, 1300 nm, 1304.6 nm, 1309.1 nm
WAVELENGTH RX (TYPICAL):
1273.5 nm, 1277.9 nm, 1282.3 nm, 1286.7 nm, 1295.6 nm, 1300 nm, 1304.6 nm, 1309.1 nm
LASER:
EML
RECEIVER TYPE:
PIN
MODULATION:
NRZ @400G
EXTINCTION RATIO:
3.5 dB
SUPPORTED PROTOCOLS:
400G Ethernet
- COMPATIBLE WITH
- Cisco Systems QDD-400G-LR8-S
- Juniper QDD-400G-LR8
