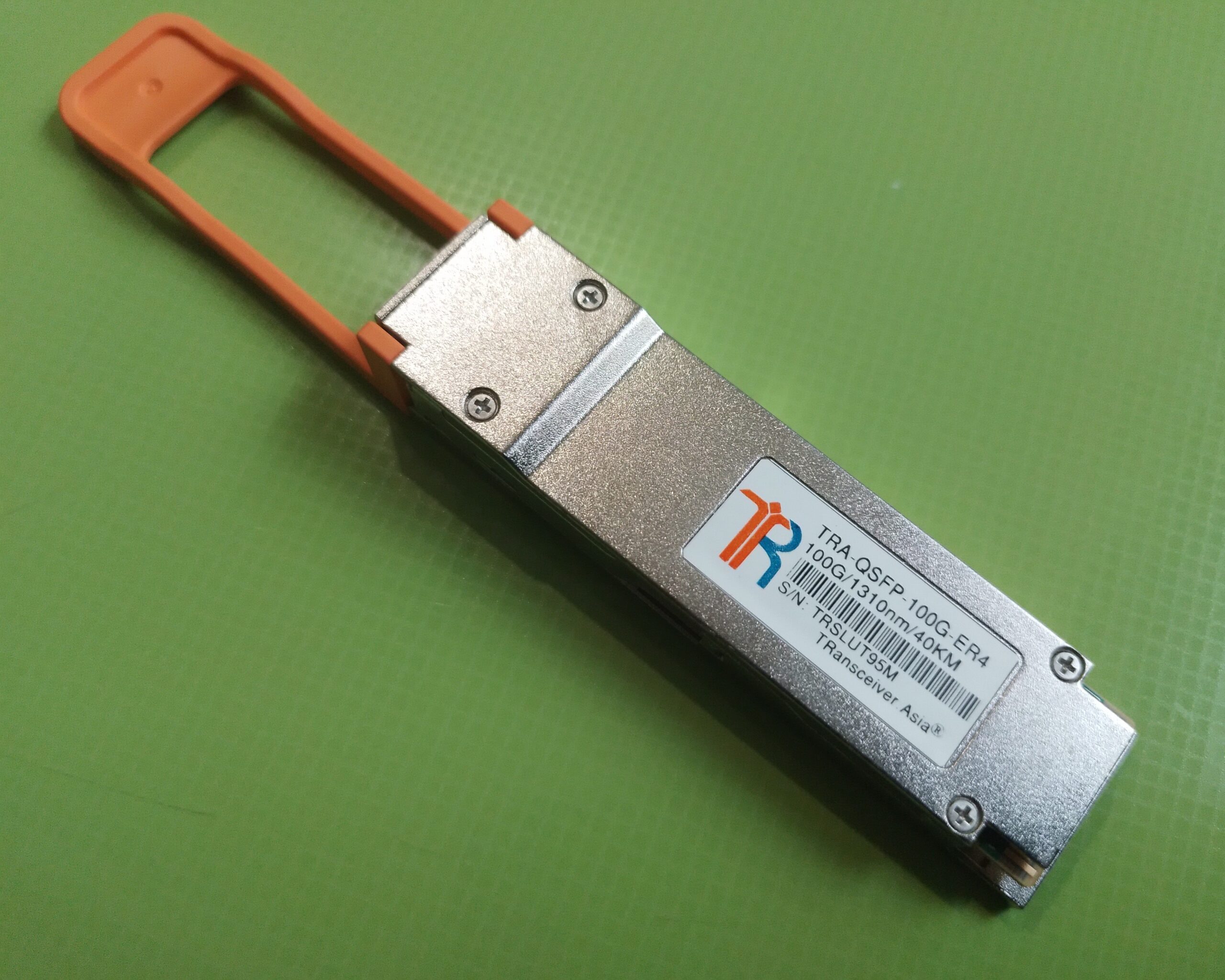

TRA QSFP 100G-ER4 (A)

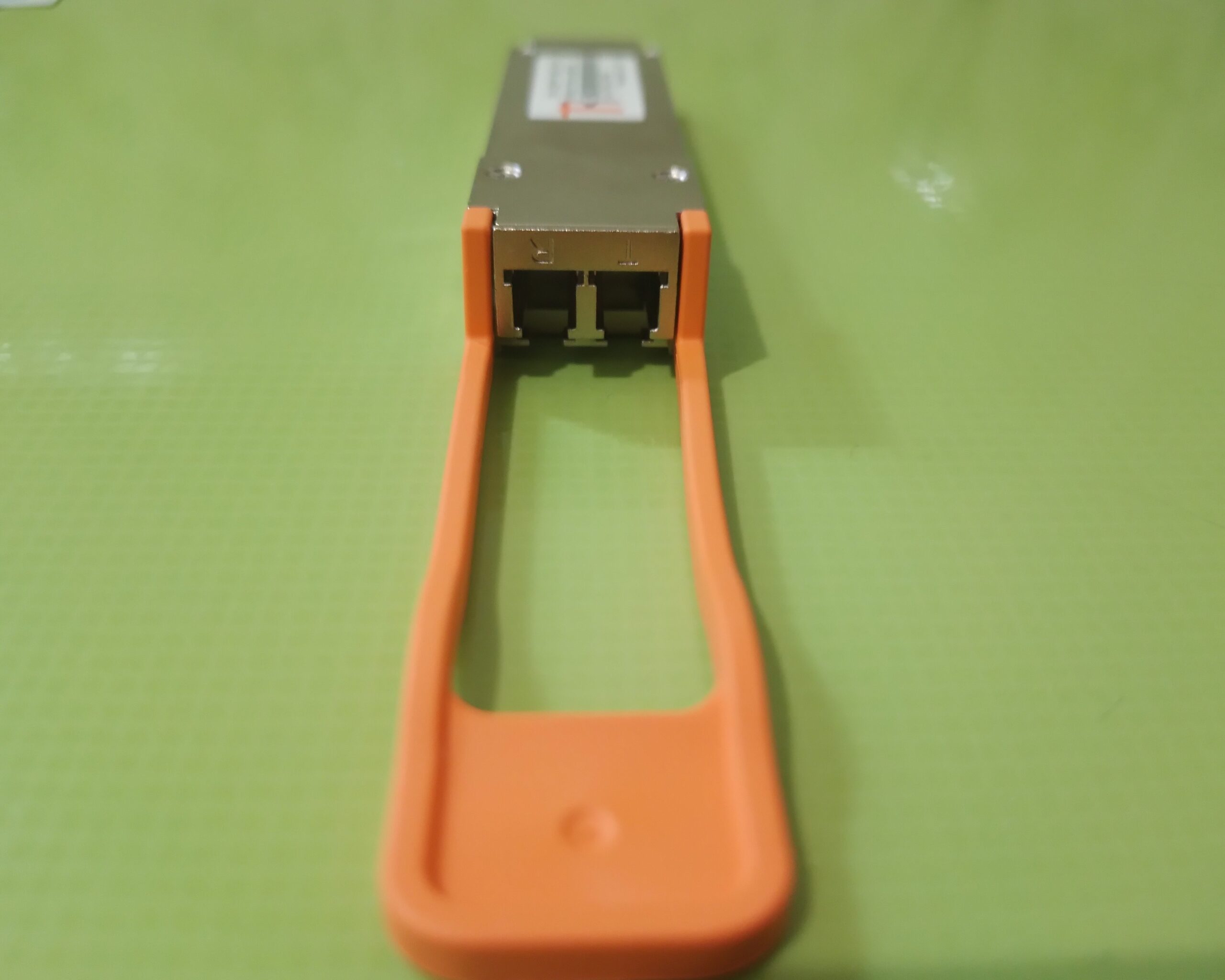

TRA QSFP 100G-ER4 (B)
Instagram 100G-ER

QSFP28 100G-ER4

100GBASE-ER4 QSFP28 1310nm 40km Module, Singlemode LC Connector
TRA-QSFP-100G-ER4
QSFP28 100G
ER4
  • 100G QSFP
  • ER4
  • 103.12 Gbit/s
  • 0° C - 70° C
  • Up to 40km
  • Compliance Code: ER4
λ 1310nm
40km
↓↑ 100G
LC
  • ORDERING GUIDE
PART NUMBER
TRA-QSFP-100G-ER4
TRANSCEIVER DESCRIPTION
100GBASE-ER4 QSFP28 1310nm 40km Module, Singlemode LC Connector
  • DATASHEET

📄 Datasheet TRA-QSFP-100G-ER4

  • SPECIFICATIONS
FORM FACTOR:
QSFP28
CONNECTOR / POLISH:
LC
INTERFACE:
Singlemode
COMPLIANCE CODE:
ER4
OPERATING TEMPERATURE:
Standard
MODULATION:
NRZ
DISTANCE:
40km
TEMPERATURE RANGE:
0°C - 70°C
LANE COUNT:
4x (Tx/Rx)
BANDWIDTH:
103.12 Gbit/s
BANDWIDTH PER LANE:
25.78 Gbit/s
DIGITAL DIAGNOSTIC MONITORING (DDM):
Yes, internally calibrated
POWER CONSUMPTION:
5 W
CDR:
TX and RX
SGMII:
No
INBUILT FEC:
No
POWERBUDGET (DB):
18 dB
TRANSMIT MIN/MAX PER LANE:
-2.9 dBm / 2.9 dBm
RECEIVER MIN/MAX PER LANE:
-20.9 dBm / -3.5 dBm (overload) @100G
WAVELENGTH TX (TYPICAL):
1300 nm, 1304.6 nm, 1309.1 nm
WAVELENGTH RX (TYPICAL):
1300 nm, 1304.6 nm, 1309.1 nm
LASER:
EML
RECEIVER TYPE:
PIN
MODULATION:
NRZ @100G
EXTINCTION RATIO:
8 dB
SUPPORTED PROTOCOLS:
100G Ethernet
  • COMPATIBLE WITH

• MSA Standard
• Arista QSFP-100G-ER4
• Ciena 160-9405-900
• Cisco Systems QSFP-100G-ER4L-S
• Extreme 100G-ER4LT-QSFP40KM
• Fortinet FG-TRAN-QSFP28-LR4
• HP H3C JL275A
• Huawei QSFP-100G-ER4-Lite
• Juniper QSFP-100G-ER4L
• Nokia (ex. Alcatel-Lucent) 3AL82152AA
• Nokia (ex. Alcatel-Lucent) 3HE11239AA
• Nokia (ex. Alcatel-Lucent) 3HE17189AA
• Nvidia (ex. Mellanox) MMA1L10-CR
• Palo Alto Networks PAN-QSFP28-100GBASE-LR4
• RAD QSFP28-1D
• Ribbon (ex. ECI) OTR100Q28_LR4
• any barands, contact me
