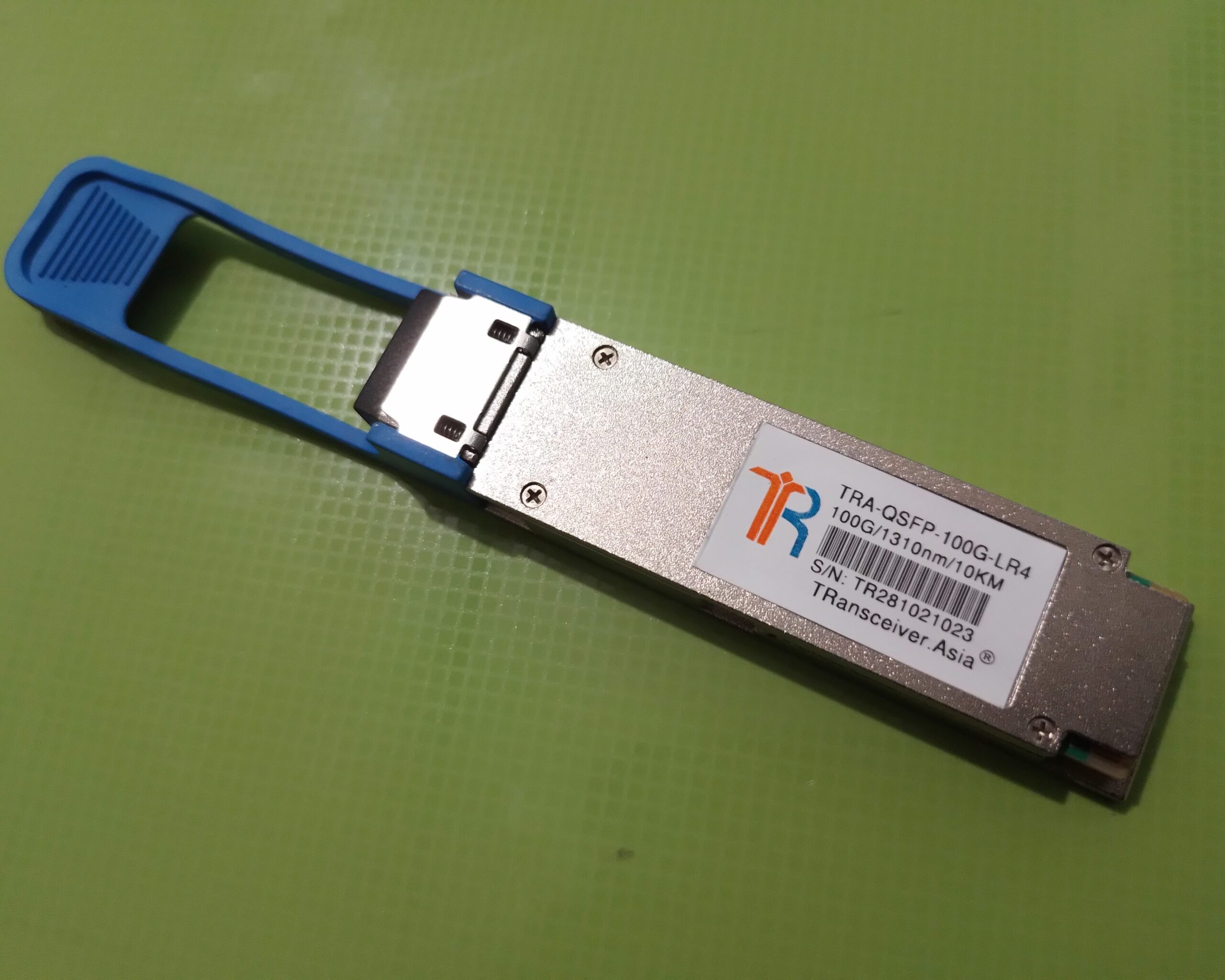

TRA-100G-LR4(A)

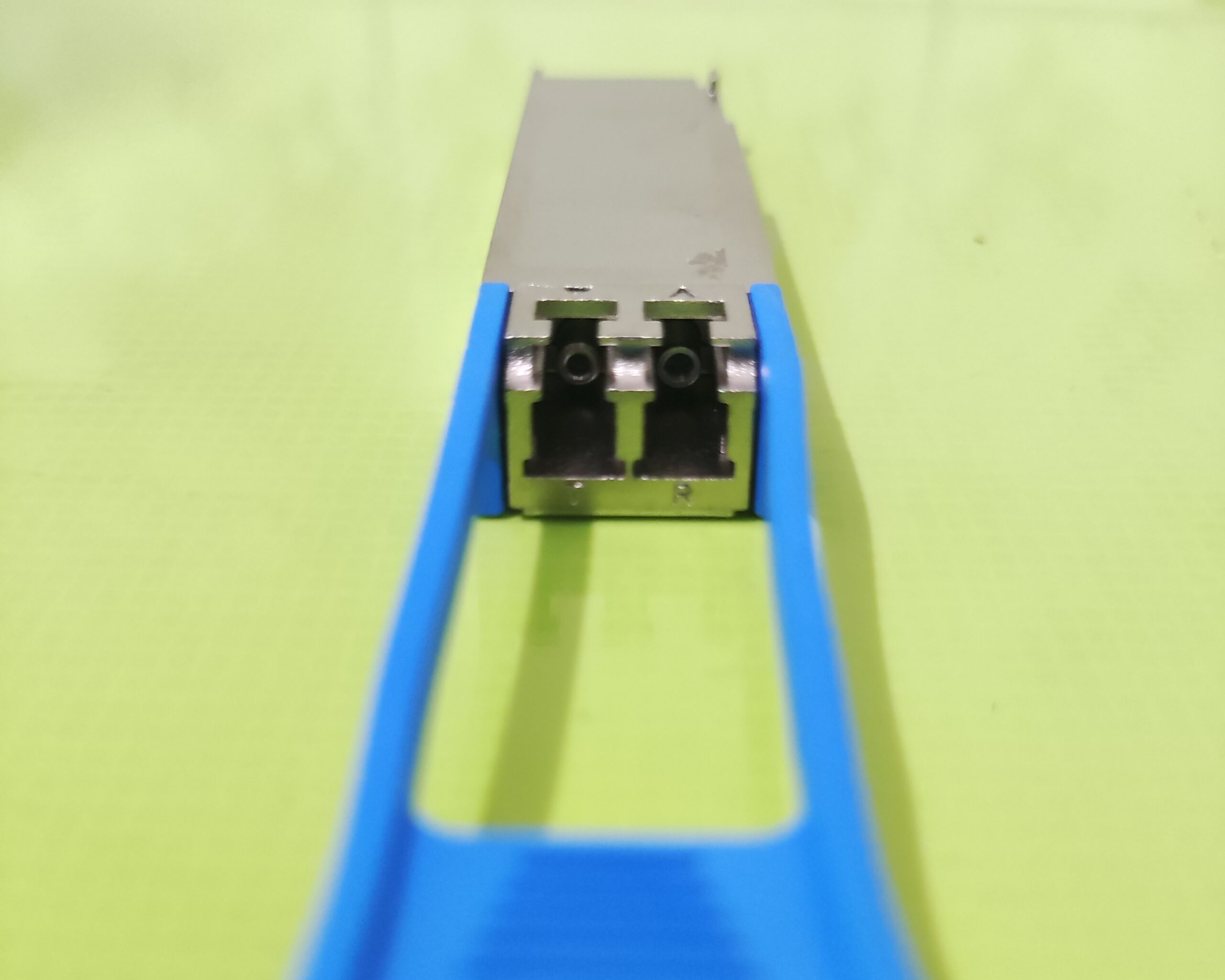

TRA-100G-LR4(B)
Instagram 100G-LR

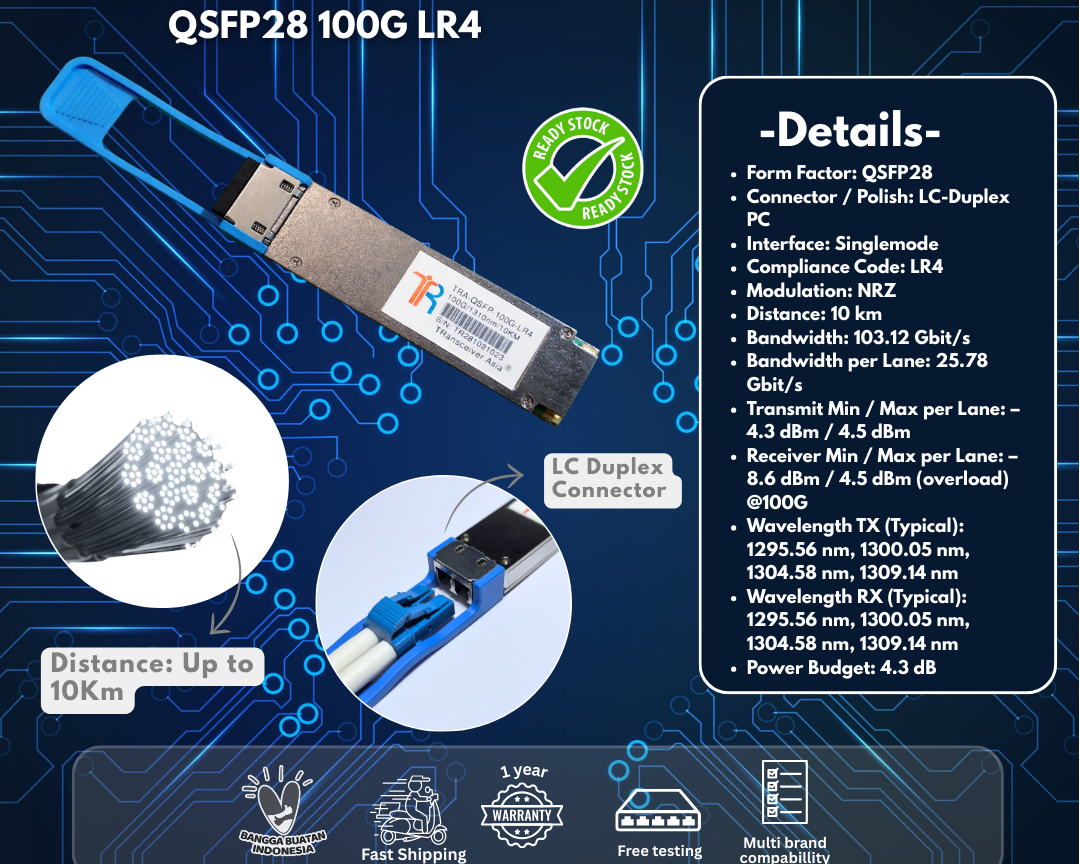

QSFP28 100G-LR4

100GBASE-LR4 QSFP28 1310nm 10km Module LR4, Singlemode LC Connector
TRA-QSFP-100G-LR4
QSFP28 100G
LR4
  • 100G QSFP
  • 100GBASE-LR Ethernet links
  • 103 Gbit/s
  • 0° C - 70° C
  • Up to 10km
  • Compliance Code: LR4
λ 1310nm
10 km
↓↑ 100G
LC
  • ORDERING GUIDE
PART NUMBER
TRA-QSFP-100G-LR4
TRANSCEIVER DESCRIPTION
100GBASE-LR4 QSFP28 1310nm 10km Module LR4, Singlemode LC Connector
  • DATASHEET

📄 TRA-QSFP-100G-LR4

  • SPECIFICATIONS
FORM FACTOR:
QSFP28
CONNECTOR / POLISH:
LC
INTERFACE:
Singlemode
COMPLIANCE CODE:
LR4
OPERATING TEMPERATURE:
Standard
MODULATION:
NRZ
DISTANCE:
10 km
TEMPERATURE RANGE:
0°C - 70°C
BANDWIDTH:
103.12 Gbit/s
DIGITAL DIAGNOSTIC MONITORING (DDM):
Yes, internally calibrated
POWER CONSUMPTION:
4.5 W
CDR:
TX and RX
SGMII:
No
INBUILT FEC:
No
POWERBUDGET (DB):
4.6 dB
TRANSMIT MIN/MAX PER LANE:
-1.4 dBm / 4.5 dBm
RECEIVER MIN/MAX PER LANE:
-6 dBm / 4.5 dBm (overload) @100G
WAVELENGTH TX (TYPICAL):
1304.5 - 1311 nm
WAVELENGTH TX (RANGE):
1310nm
WAVELENGTH RX (TYPICAL):
1304.5 - 1311 nm​
LASER:
EML
RECEIVER TYPE:
PIN
MODULATION:
NRZ @100G
EXTINCTION RATIO:
3.5 dB
SUPPORTED PROTOCOLS:
100G Ethernet
  • COMPATIBLE WITH

• MSA Standard
• ADVA 1061800720-01
• ADVA 1061800740-01
• Alcatel-Lucent Ent. QSFP-100G-LR4
• Arista 3rd_Party QSFP-100G-LR4
• Arista QSFP-100G-LR4
• Aruba Networks (ex. HP Network) 845966-B21
• Aruba Networks (ex. HP Network) JL310A
• Asterfusion OT-100G-QSFP-LR4
• Avaya (ex. Nortel) AA1405001-E6
• Axon QSFP28 LR4
• Bittware QSFP28 LR4
• Blackmagic Design QSFP28 LR4
• Brocade 100G-QSFP28-LR4L-10KM
• Check Point CPAC-TR-100LR-B
• Check Point CPAC-TR-100LR-D
• Check Point CPAC-TR-100SR
• Chelsio QSFP28 LR4
• Chelsio SM100G-LR
• Ciena 160-9401-900
• Ciena 160-9401-901
• Ciena XCVR-Q10V01
• Ciena XCVR-Q10V31
• Cisco (ex. Meraki) MA-QSFP-100G-LR4
• Cisco Systems ONS-QSFP28-LR4
• Cisco Systems QSFP-100G-LR4-S
• CommScope (ex. Arris) 1000626
• Cumulus Networks QSFP28 LR4
• Dell 407-BBSL
• Dell 407-BCDH
• Dell QSFP28-100G-LR4
• Edge Core ET7402-LR4
• Extreme 100G-LR4-QSFP10KM
• Extreme 10403
• F5 Networks OPT-0039-01
• Forcepoint SFPQ100LR
• Fortinet FG-TRAN-QSFP28-LR4
• Fortinet FN-TRAN-QSFP28-LR
• Gigamon Q28-503
• Grassvalley QSFP28 LR4
• HP H3C JL275A
• Huawei OSN010N11
• Infinera (ex. Coriant) ZXS-Q8L-4ZZZZ-00
• Infinera TOM-100G-Q-LR4
• Infinera TOM-100G-Q-LR4L
• IP Infusion IPI-EN-QSF28-LR4
• Juniper JNP-QSFP-100G-LR4
• Juniper QSFP-100G-LR4-2
• Juniper QSFP-100G-LR4-C
• Juniper QSFP-100G-LR4-T2
• Juniper QSFP-100GBASE-LR4
• Keysight (ex. Ixia) QSFP28 LR4
• LANCOM SFP-LR-LC100
• Lenovo 7G17A03540
• MikroTik XQ+31LC10D
• NetApp X65405
• Netgear ACM762
• Netscout 321-2132
• Netscout 321-2202
• Nokia (ex. Alcatel-Lucent) 3FE73400AA
• Nokia (ex. Alcatel-Lucent) 3HE10550AA
• Nokia Networks 3AL82074AA
• NoviFlow 400000515
• NoviFlow 400000518
• Nvidia (ex. Mellanox) MMA1L10-CR
• Nvidia (ex. Mellanox) MMA1L10-MSN3420
• Packetlight QSFP28-LR4-S-1102
• Palo Alto Networks PAN-QSFP28-100GBASE-LR4
• Planet QSFP-100G-LR4
• RAD QSFP28-1D
• Ribbon (ex. ECI) OTR100Q28_LR4
• SonicWALL QSFP28 LR4
• Spirent ACC-6096A
• Ubiquiti Networks UACC-OM-QSFP28-LR4
• ZTE 33030600023
• Zyxel QSFP100G-LR4-ZZ0101F
• Accedian Networks 7QN-000
• ADTRAN 1445510F2C
