Products
QSFP28 100G-SR4

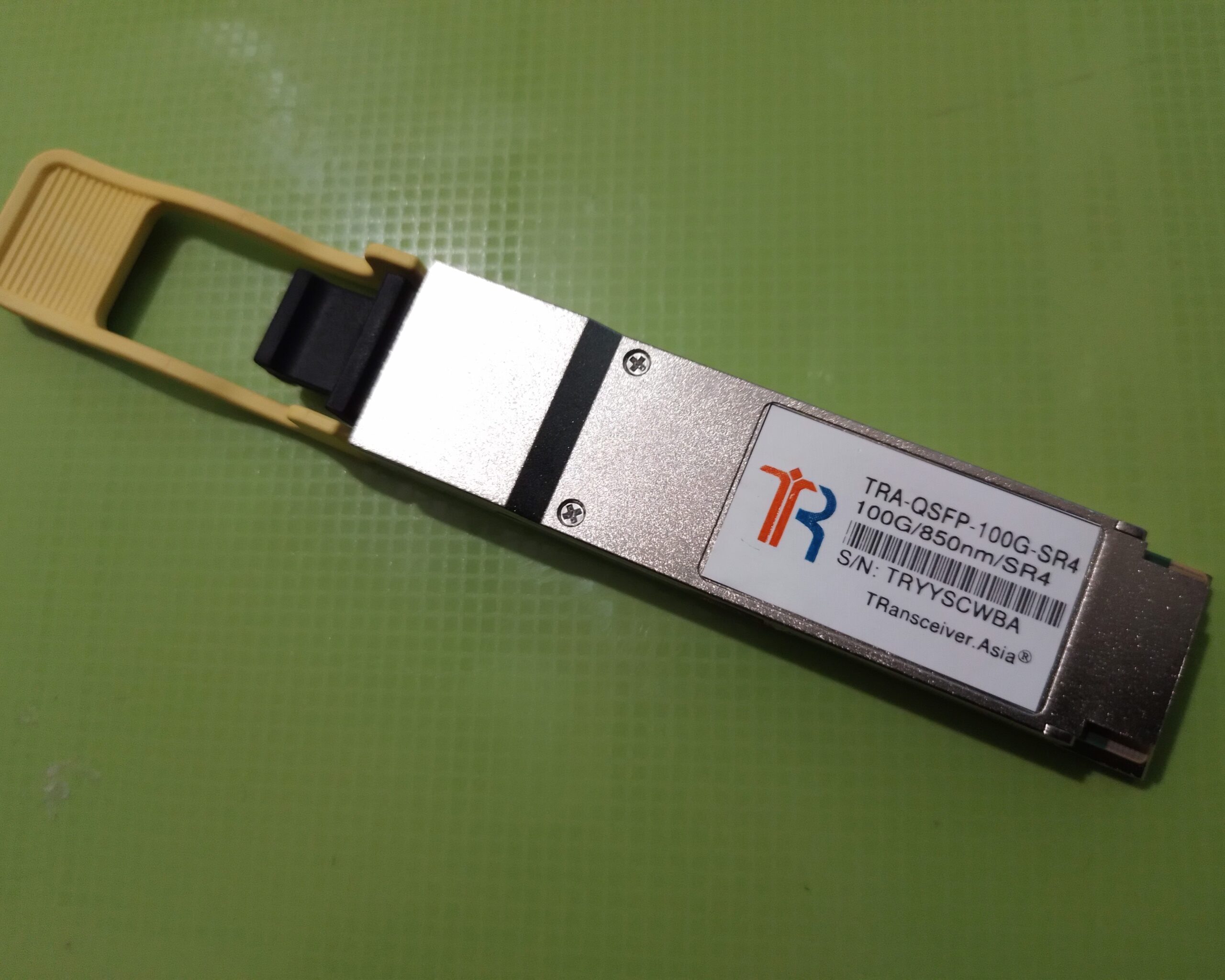

100GBASE-SR4 QSFP28 850nm 100m Module, Multimode MPO Connector
- 100G QSFP28

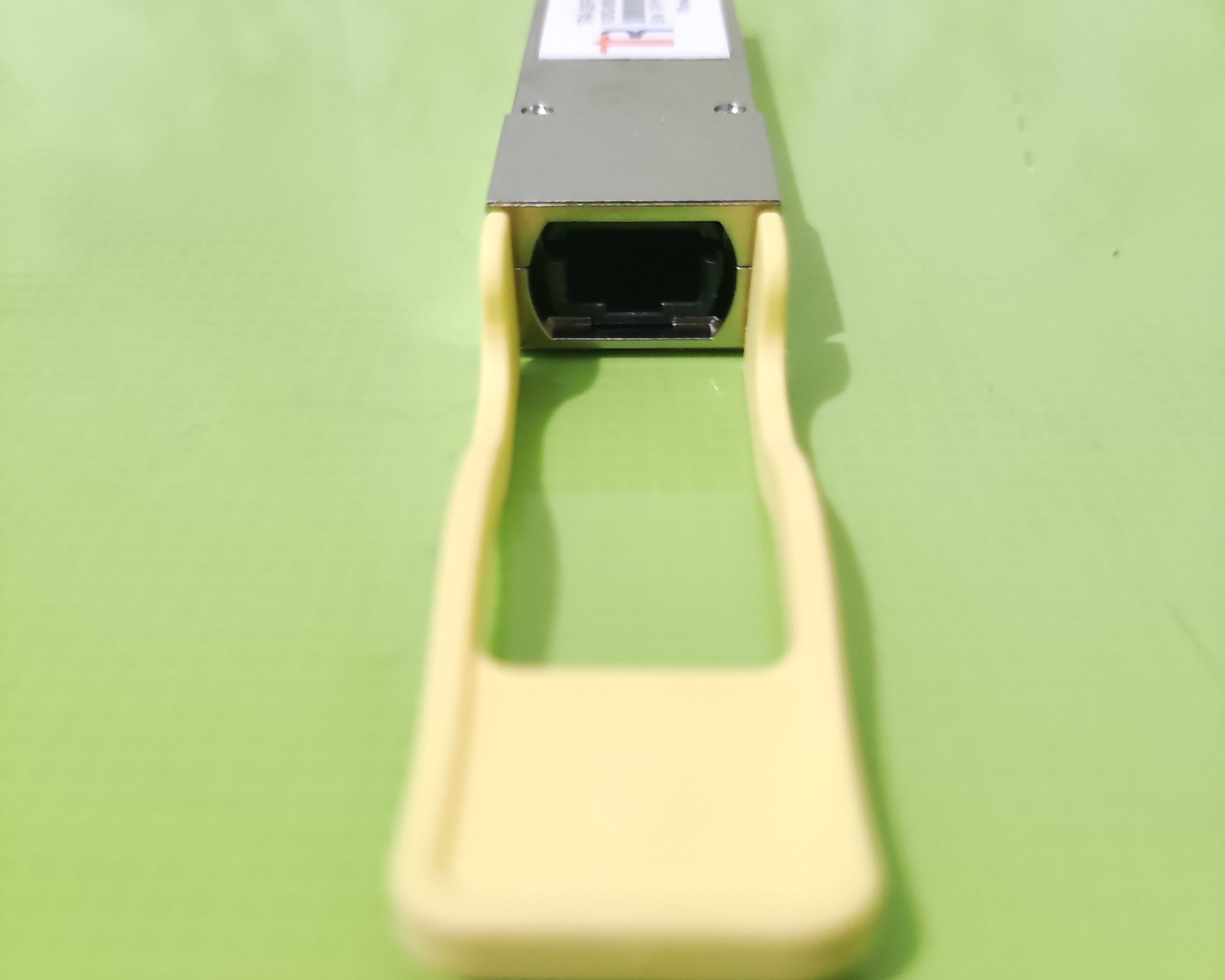

- MTP/MPO-8/12 Connector
- 100Gbit/s (4x 25.78 Gbit/s)
- 0° C - 70° C
- Up to 100 m
- Compliance Code: SR4
- ORDERING GUIDE
PART NUMBER
TRA-QSFP-100G-SR
TRANSCEIVER DESCRIPTION
100GBASE-SR4 QSFP28 850nm 100m Module, Multimode MPO Connector
- DATASHEET
- SPECIFICATIONS
FORM FACTOR:
QSFP28
CONNECTOR / POLISH:
MTP/MPO-8/12 PC
INTERFACE:
Multimode
COMPLIANCE CODE:
SR4
OPERATING TEMPERATURE:
Standard
MODULATION:
NRZ
DISTANCE:
100 m
TEMPERATURE RANGE:
0°C - 70°C
LANE COUNT:
4x (Tx/Rx)
BANDWIDTH:
103.12 Gbit/s
BANDWIDTH PER LANE:
25.78 Gbit/s
DIGITAL DIAGNOSTIC MONITORING (DDM):
Yes, internally calibrated
POWER CONSUMPTION:
3.5 W
CDR:
TX and RX
SGMII:
No
INBUILT FEC:
No
POWERBUDGET (DB):
1.2 dB
TRANSMIT MIN/MAX PER LANE:
-9.1 dBm / 2.4 dBm
RECEIVER MIN/MAX PER LANE:
-10.3 dBm / 2.4 dBm (overload) @100G
WAVELENGTH TX (TYPICAL):
4x 850 nm
WAVELENGTH TX (RANGE):
840 - 860 nm
WAVELENGTH RX (TYPICAL):
4x 850 nm
LASER:
VCSEL
RECEIVER TYPE:
PIN
MODULATION:
NRZ @100G
EXTINCTION RATIO:
2 dB
SUPPORTED PROTOCOLS:
100G Ethernet
- COMPATIBLE WITH
- MSA Standard
- Alcatel-Lucent Ent. QSFP-100G-SR4
- Arista 3rd_Party QSFP-100G-SR4
- Arista QSFP-100G-SR4
- Aruba Networks(ex. HP
- Network) 845966-B21
- Aruba Networks(ex. HP Network) JL309A
- Avaya (ex. Nortel) AA1405005-E6
- Broadcom AFBR-89CDHZ
- Broadcom QSFP28 SR4
- Brocade / Ruckus E100G-QSFP28-SR4
- Brocade 100G-QSFP28-SR4
- Calix 100-04650
- Check Point CPAC-TR-100SR-B
- Chelsio SM100G-SR
- Ciena 160-9400-900
- Cisco Systems QSFP-100G-SR4-S
- Cumulus Networks QSFP28 SR4
- Dell 407-BBSM
- Dell 407-BBWV
- Dell QSFP28-100G-SR4
- Edge Core ET7402-SR4
- Evertz QSFP-25G-MM-M
- Extreme 100G-SR4-QSFP100M
- Extreme 10401
- F5 Networks OPT-0031-01
- Fortinet FG-TRAN-QSFP28-SR4
- Gigamon Q28-502
- HP H3C JL275A
- Huawei QSFP-100G-SR4
- Infinera (ex. Coriant) ZXS-Q8AOCZDR-01
- Infinera TOM-100G-Q-SR4
- Intel E100GQSFPSR
- Juniper JNP-QSFP-100G-SR4
- Juniper QSFP-100G-SR4-T2
- Juniper QSFP-100GBASE-SR4
- Kemp Technologies LM-QSFP28-100G-SR
- Keysight (ex. Ixia) QSFP28-SR4-XCVR
- LANCOM SFP-SR-MPO100
- Lenovo 7G17A03539
- MikroTik XQ+85MP01D
- NetApp X65405
- Netgear ACM761
- Netscout 321-2133
- Nokia (ex. Alcatel-Lucent) 1AB474800004
- Nokia (ex. Alcatel-Lucent) 3AL82099AA
- Nokia (ex. Alcatel-Lucent) 3HE10551AA
- NoviFlow 400000511
- Nvidia (ex. Mellanox) MMA1B00-C100D
- Nvidia (ex. Mellanox) MMA1B00-E100
- Packetlight QSFP28-100G-SR4-PC
- Palo Alto Networks PAN-QSFP28-100GBASE-SR4
- Planet QSFP-100G-SR4
- Pure Storage QSFP28-100G-SR4
- RAD QSFP28-2D
- Radware 9062236
- Ribbon (ex. ECI) OTR100Q28_SR4DR
- SonicWALL 02-SSC-5806
- Spirent ACC-6065A
- Supermicro AOM-100GBE-SR4-FT
- Ubiquiti Networks UACC-OM-QSFP28-SR4
- Viavi (ex. JDSU) QSFP28 SR4
