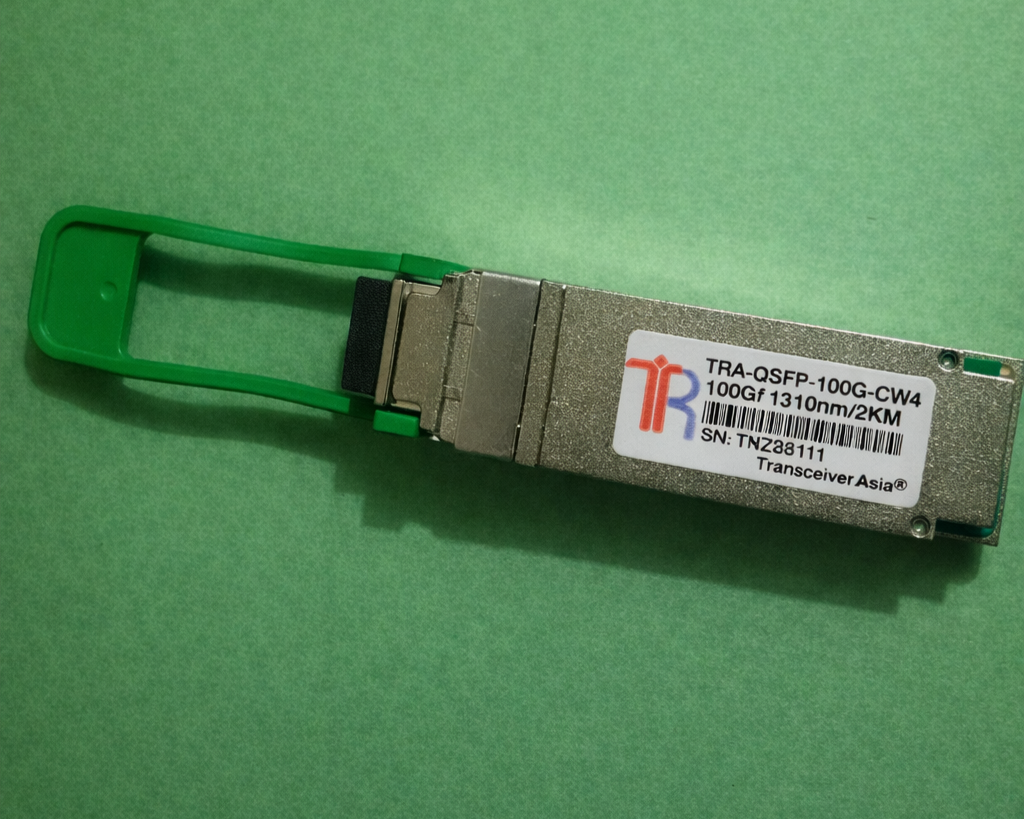

ChatGPT Image Feb 24, 2026, 02_34_08 PM

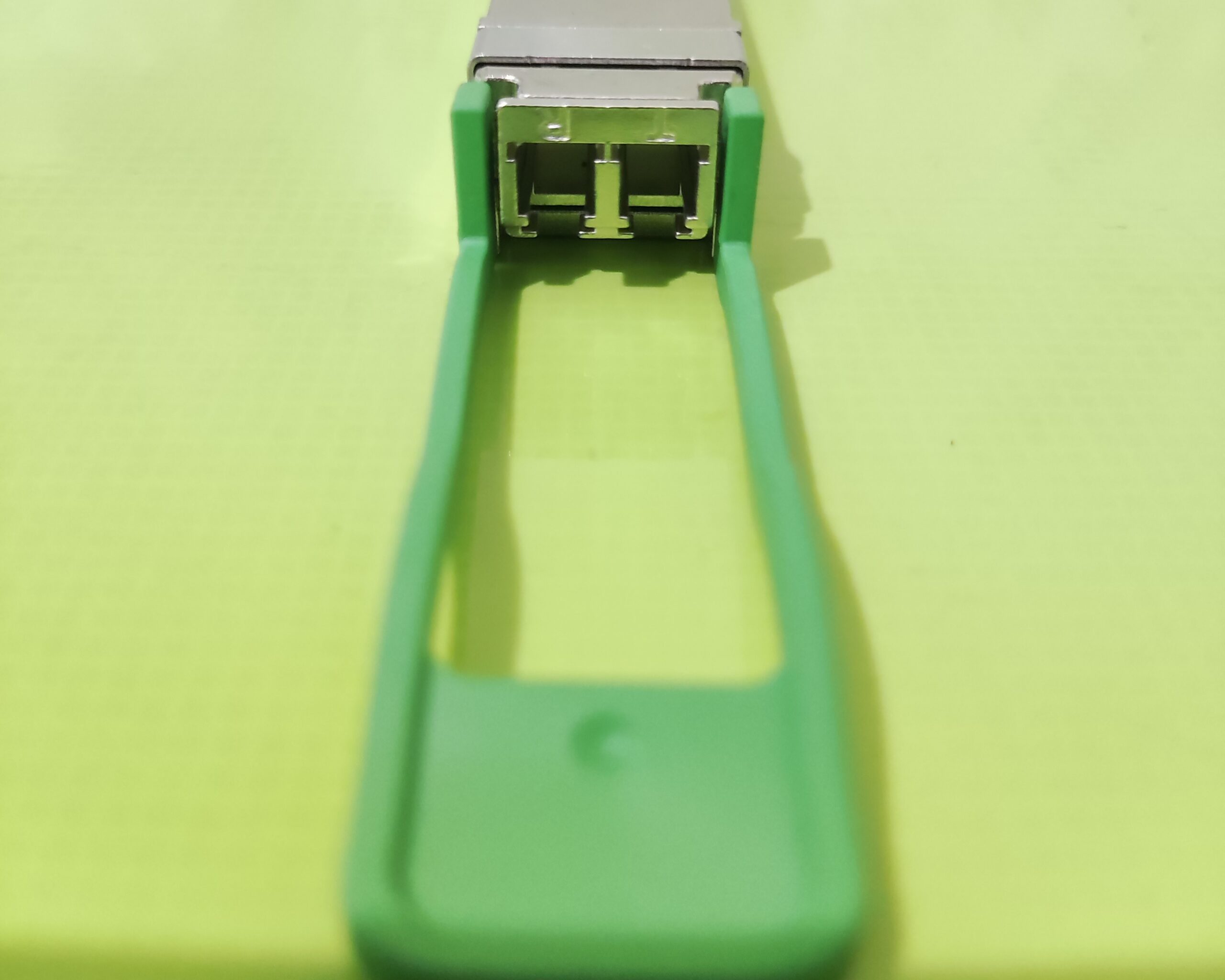

IMG_20230620_160133

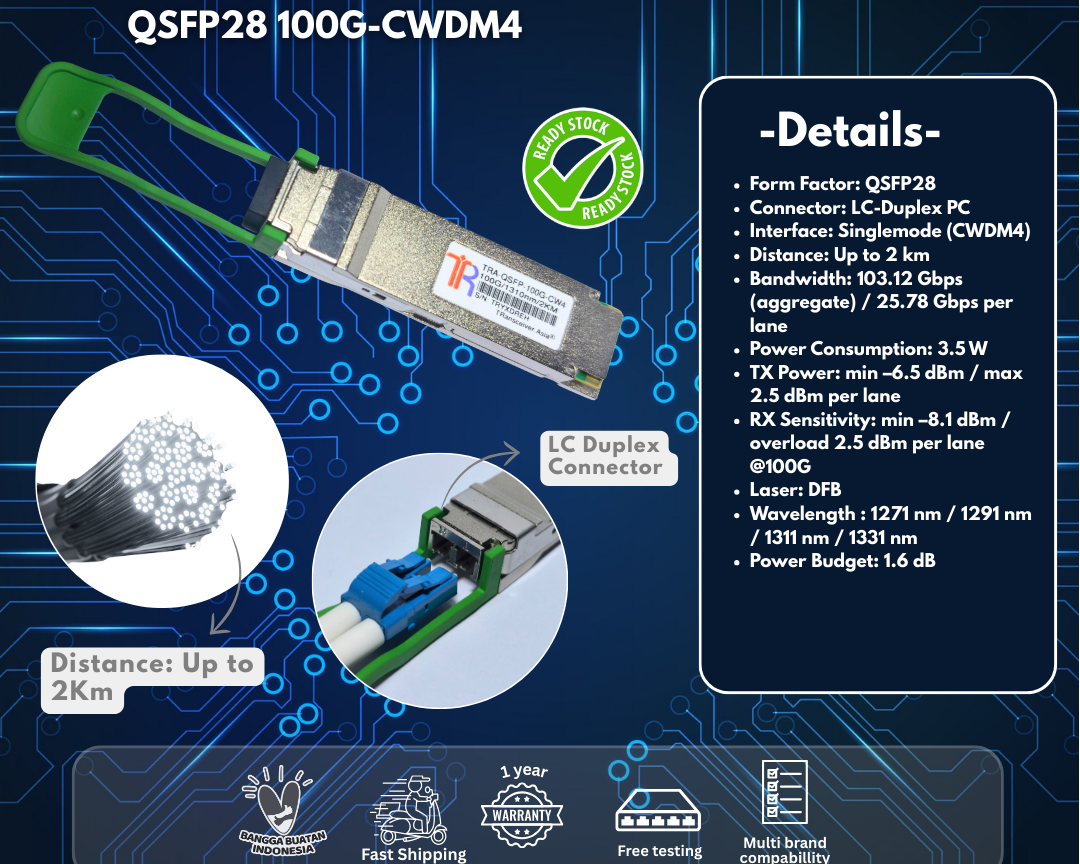

Instagram 100G-CW4

TRA-QSFP-100G-CW4

100GBASE-CWDM4 QSFP28 1310nm 2km CWDM, Singlemode LC Connector
TRA-SFP-100G-CW4
SFP 100G
LC
  • 100G SFP
  • LC - Duplex
  • 103.12 Gbit/s
  • 0° C - 70° C
  • Up to 2Km
  • Compliance Code: CWDM4
λ 1310 nm
2Km
↓↑100G
Lc duplex singlemode
  • ORDERING GUIDE
PART NUMBER
TRA-QSFP-100G-CW4
TRANSCEIVER DESCRIPTION
100GBASE-CWDM4 QSFP28 1310nm 2km CWDM, Singlemode LC Connector
  • DATASHEET

📄 Datasheet-QSFP-100G-CW4

  • SPECIFICATIONS
FORM FACTOR:
QSFP28
CONNECTOR / POLISH:
LC - Duplex PC
INTERFACE:
Singlemode
COMPLIANCE CODE:
CWDM4
OPERATING TEMPERATURE:
Standard
MODULATION:
NRZ
DISTANCE:
2 Km
TEMPERATURE RANGE:
0°C - 70°C
LANE COUNT:
4x (Tx/Rx)
BANDWIDTH:
103.12 Gbit/s
BANDWIDTH PER LANE:
25.78 Gbit/s
DIGITAL DIAGNOSTIC MONITORING (DDM):
Yes, internally calibrated
POWER CONSUMPTION:
3.5 W
CDR:
TX and RX
SGMII:
No
INBUILT FEC:
No
POWERBUDGET (DB):
1.6 dB
TRANSMIT MIN/MAX PER LANE:
-6.5 dBm / 2.5 dBm
RECEIVER MIN/MAX PER LANE:
-8.1 dBm / 2.5 dBm (overload) @100G
WAVELENGTH TX (TYPICAL):
1271 nm, 1291 nm, 1311 nm, 1331 nm
WAVELENGTH RX (TYPICAL):
1271 nm, 1291 nm, 1311 nm, 1331 nm
LASER:
DFB
RECEIVER TYPE:
PIN
MODULATION:
NRZ @100G
EXTINCTION RATIO:
3.5 dB
SUPPORTED PROTOCOLS:
100G Ethernet
  • COMPATIBLE WITH
  • Alcatel-Lucent Ent. QSFP-100G-CWDM4
  • Arista 3rd_Party QSFP-100G-CWDM4
  • Arista QSFP-100G-CWDM4
  • Aruba Networks (ex. HP Network) R0Z30A
  • Brocade / Ruckus E100G-QSFP28-CWDM4-2km
  • Brocade 100G-QSFP28-CWDM4-2KM
  • Cisco Systems QSFP-100G-CWDM4-S
  • Cisco Systems QSFP-100G-SM-SR
  • CommScope (ex. Arris) 1000669
  • Cumulus Networks QSFP28 CWDM4
  • Dell (ex. Force10) QSFP28-100G-CWDM
  • Dell 407-BBVO
    Edge Core ET7402-
  • CWDM4
  • Extreme 100G-CWDM4-QSFP2KM
  • Extreme 10404
  • Fortinet FG-TRAN-QSFP28-LR4
  • Fortinet FN-TRAN-QSFP28-CWDM4
  • Huawei QSFP-100G-CWDM4-ISP
  • Infinera TOM-100G-Q-CWDM4
  • Intel SPTSBP3CLCCO
  • Juniper JNP-QSFP-100G-CWDM
  • Juniper JNP-QSFP-100G-LR4
  • Juniper QSFP-100G-LR4
  • MikroTik XQ+31LC02D
  • Net Insight NPA0144-CW40
  • NetApp 100G CWDM4
  • Netgear ACM764
  • Nokia (ex. Alcatel-Lucent) 3AL82075AA
  • Nokia (ex. Alcatel-Lucent) 3HE10552AA
  • Nvidia (ex. Mellanox)
  • MMA1L30-CM
  • Palo Alto Networks PAN-QSFP28-100GBASE-CWDM4
  • Ribbon (ex. ECI)
  • OTR100Q28_CWDM4
  • Viavi (ex. JDSU) QSFP28 CWDM4
