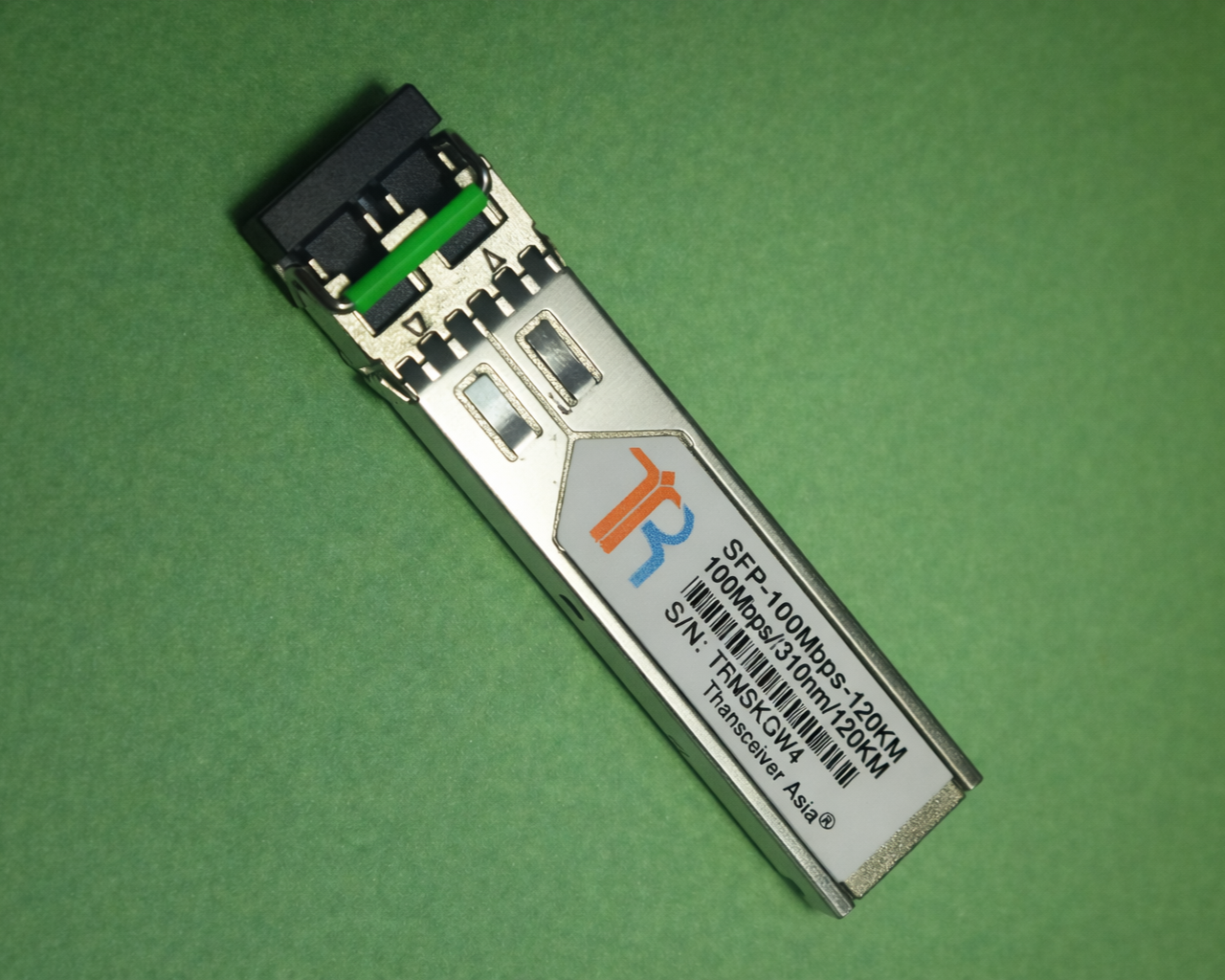

SFP-100Mbps-120Km
SFP transceiver module for SMF, STM-1 1550nm wavelength, LC duplex connector, 120km
- 100Mbps SFP
- LC - Duplex
- 100 Mbit/s - 155 Mbit/s
- 0° C - 70° C
- Up to 120 Km
- Compliance Code: EZX
- ORDERING GUIDE
PART NUMBER
TRA-SFP-100Mbps-120Km
TRANSCEIVER DESCRIPTION
SFP transceiver module for SMF, STM-1 1550nm wavelength, LC duplex connector, 120km
- DATASHEET
- SPECIFICATIONS
FORM FACTOR:
SFP
CONNECTOR / POLISH:
LC - Duplex PC
INTERFACE:
Singlemode
COMPLIANCE CODE:
EZX
OPERATING TEMPERATURE:
Standard
MODULATION:
NRZ
DISTANCE:
120 Km
TEMPERATURE RANGE:
0°C - 70°C
BANDWIDTH:
100 Mbit/s - 155 Mbit/s
DIGITAL DIAGNOSTIC MONITORING (DDM):
Yes, internally calibrated
POWER CONSUMPTION:
1 W
CDR:
None
SGMII:
No
INBUILT FEC:
No
POWERBUDGET (DB):
34 dB
TRANSMIT MIN/MAX PER LANE:
2 dBm / 7 dBm
RECEIVER MIN/MAX PER LANE:
-32 dBm / -10 dBm (overload) @100M - 800M
WAVELENGTH TX (TYPICAL):
1550 nm
WAVELENGTH TX (RANGE):
1520 - 1580 nm
WAVELENGTH RX (TYPICAL):
1550 nm
WAVELENGTH RX (RANGE):
1260 - 1600 nm
LASER:
DFB
RECEIVER TYPE:
PIN
MODULATION:
NRZ @100M - 800M
EXTINCTION RATIO:
10 dB
SUPPORTED PROTOCOLS:
Fast Ethernet, STM-1
- COMPATIBLE WITH
- Cisco Systems GLC-FE-100ZX
- Cisco Systems SFP-OC12-120
- Marconi SU67AC
