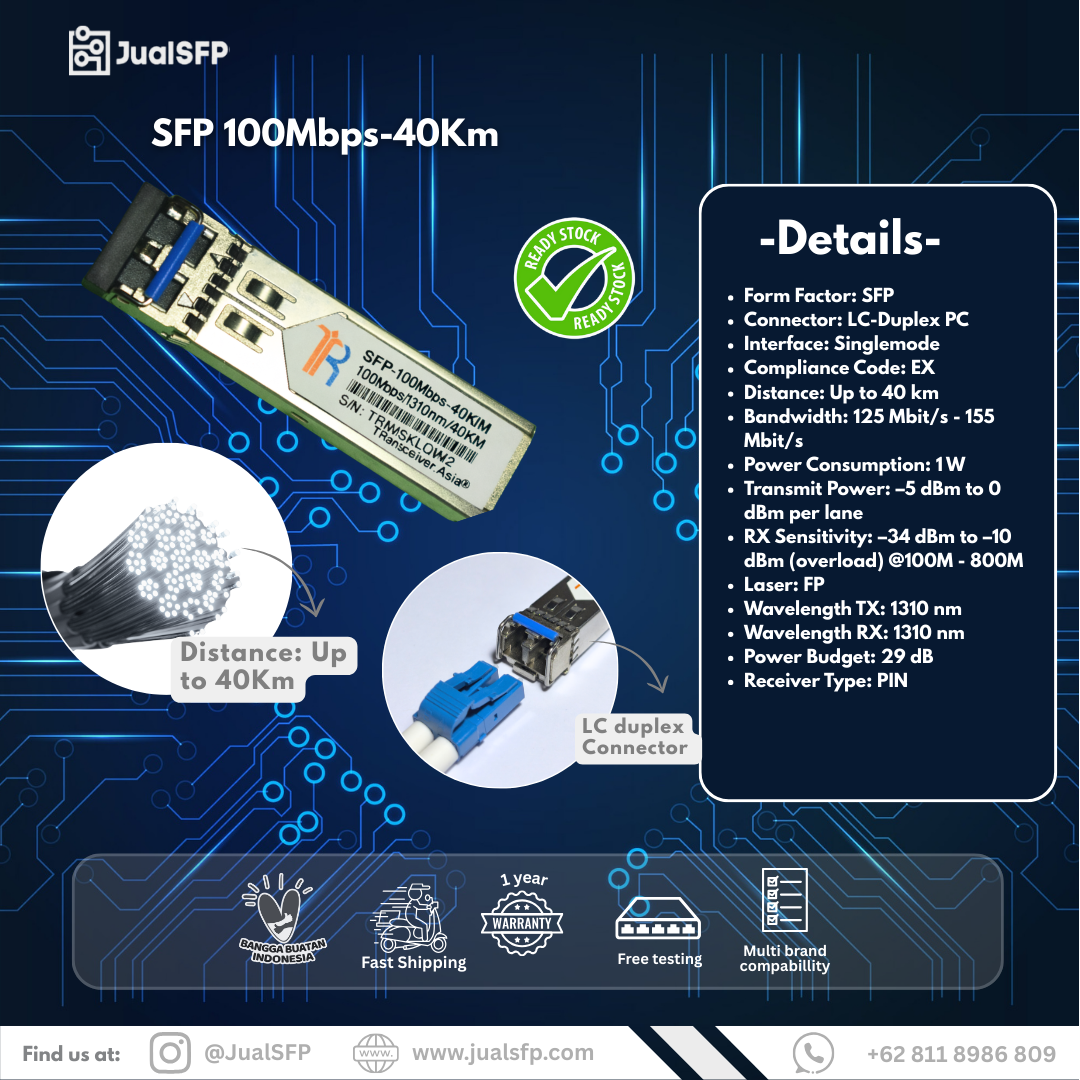

Instagram 100Mb-40km

SFP-100Mbps-40Km

SFP transceiver module for SMF, STM-1 1310nm wavelength, LC duplex connector, 40km
TRA-SFP-100Mbps-40km
SFP 100mbps
LC
  • 100Mbps SFP
  • LC - Duplex
  • 100 Mbit/s - 155 Mbit/s
  • 0° C - 70° C
  • Up to 40 Km
  • Compliance Code: STM-1
λ 1310 nm
40 Km
↓↑ 100 Mbit/s
LC duplex singlemode
  • ORDERING GUIDE
PART NUMBER
TRA-SFP-100Mbps-40Km
TRANSCEIVER DESCRIPTION
SFP transceiver module for SMF, STM-1 1310nm wavelength, LC duplex connector, 40km
  • DATASHEET

📄 TRA-SFP-100Mbps-40Km

  • SPECIFICATIONS
FORM FACTOR:
SFP
CONNECTOR / POLISH:
LC - Duplex PC
INTERFACE:
Singlemode
COMPLIANCE CODE:
EX
OPERATING TEMPERATURE:
Standard
MODULATION:
NRZ
DISTANCE:
40 Km
TEMPERATURE RANGE:
0°C - 70°C
BANDWIDTH:
125 Mbit/s - 155 Mbit/s
DIGITAL DIAGNOSTIC MONITORING (DDM):
Yes, internally calibrated
POWER CONSUMPTION:
1 W
CDR:
None
SGMII:
No
INBUILT FEC:
No
POWERBUDGET (DB):
29 dB
TRANSMIT MIN/MAX PER LANE:
-5 dBm / 0 dBm
RECEIVER MIN/MAX PER LANE:
-34 dBm / -10 dBm (overload) @100M - 800M
WAVELENGTH TX (TYPICAL):
1310 nm
WAVELENGTH TX (RANGE):
1260 - 1360 nm
WAVELENGTH RX (TYPICAL):
1310 nm
WAVELENGTH RX (RANGE):
1260 - 1600 nm
LASER:
FP
RECEIVER TYPE:
PIN
MODULATION:
NRZ @100M - 800M
EXTINCTION RATIO:
10 dB
SUPPORTED PROTOCOLS:
Fast Ethernet, STM-1
  • COMPATIBLE WITH
  • ADTRAN 1184543P1
  • ADTRAN 1184543PG1
  • ADVA 0061003003
  • Advantech SFP-FXS/LC-30E
  • Alcatel-Lucent Ent. SFP-100-SM40
  • Allied Telesis AT-SPFX40
  • Barnfind BTSFP-LX-SM-0140
  • Brocade / Ruckus E1MG-100FX-LR-OM
  • Brocade / Ruckus OC3-SFP-LR1
  • Ciena (ex. Nortel) NTTP02ED
  • Ciena (ex. Nortel) NTTP08EDE6
  • Ciena XCVR-040X31
  • Cisco Systems GLC-FE-100EX
  • Cisco Systems ONS-SI-155-L1
  • Cisco Systems SFP-OC3-LR1
  • ComNet SFP-4
  • Coriant (ex. Tellabs) TR-0002
  • Ericsson RDH90120/B0228
  • Extreme 10066
  • FiberPlex SFP-SC03XC-3131-C
  • Hirschmann M-FAST SFP-SM/LC
  • HP H3C JD090A
  • Huawei eSFP-1310nm-L-1.1
  • Huawei eSFP-FE-LH40-SM1310
  • Huawei S-SFP-FE-LH40-SM1310
  • Keymile 37973053
  • Korenix SFP100SM30
  • KTI Networks SFP-FCD-S30-A
  • LevelOne SFP-1411
  • Marconi SU66AB
  • MRV SFP-O3D-LR1
  • Net Insight NPA0016-LL11
  • Nexans 88645907
  • Nokia (ex. Alcatel-Lucent) 1AB194670005
  • Nokia (ex. Alcatel-Lucent) 1AB376350002
  • Nokia (ex. Alcatel-Lucent) 3HE00036AA
  • Nokia (ex. Alcatel-Lucent) OM155M-L1.1
  • Nokia Siemens Networks V50017-U324-K500
  • Nokia-Siemens (ex. Atrica) AT10015-ID-R
  • Perle PSFP-100D-S2LC40
  • Planet MFB-F40
  • RAD SFP-3D
  • Ribbon (ex. ECI) OTFE_SM
  • Ribbon (ex. ECI) OTR1_L3
  • SagemCOM 252586245
  • Siemens 6GK6000-8FE50-0AA0
  • Telco Systems BTI-SFP-FEX-DD-LC
  • Transition Networks TN-SFP-OC3S3
  • Volktek FPM-107-30
  • Westermo 1100-0133
