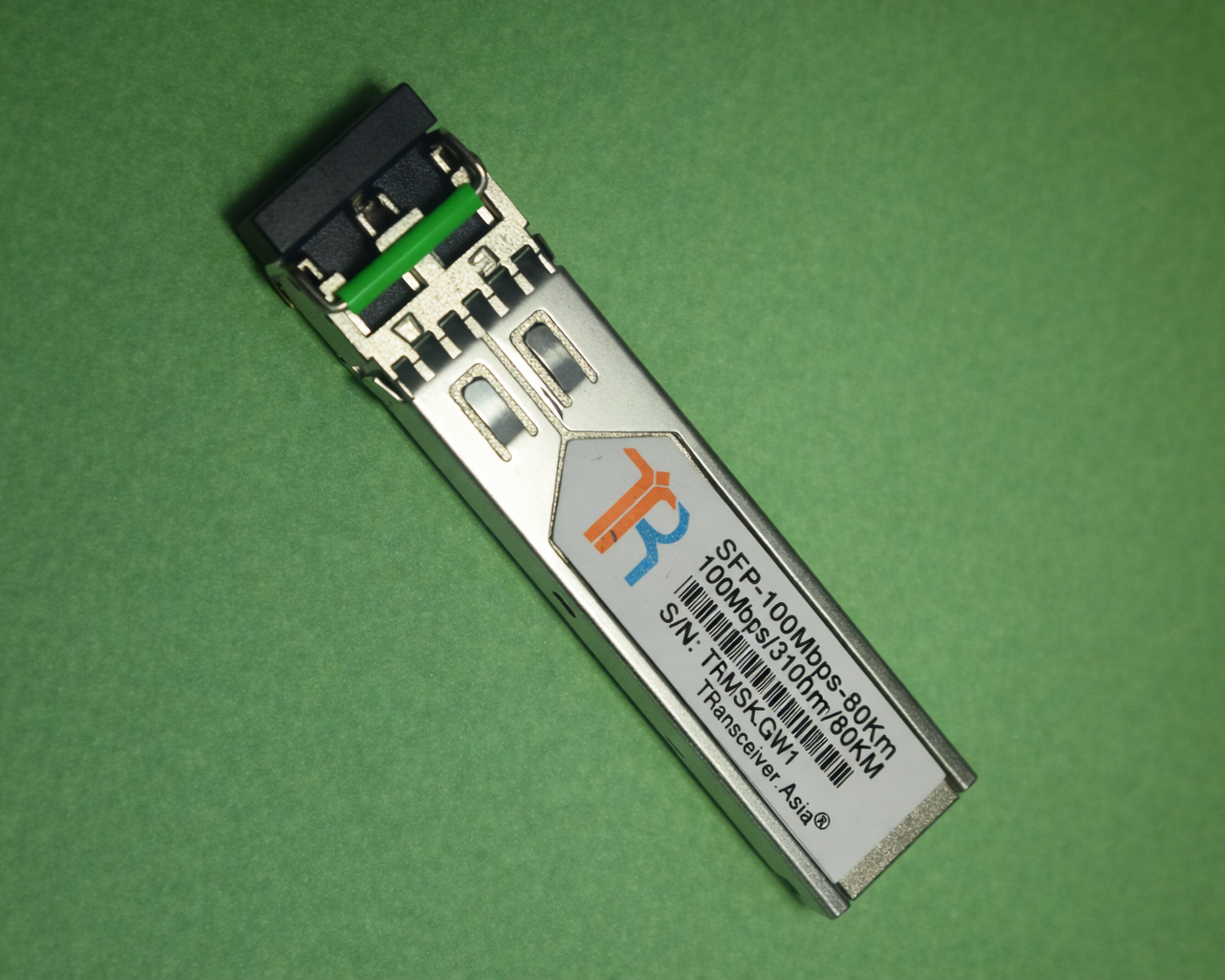

SFP-100Mbps-80Km
SFP transceiver module for SMF, STM-1 1550nm wavelength, LC duplex connector, 80km
- 100Mbps SFP
- LC - Duplex
- 100 Mbit/s - 155 Mbit/s
- 0° C - 70° C
- Up to 80 Km
- Compliance Code: ZX
- ORDERING GUIDE
PART NUMBER
TRA-SFP-100mbps-80km
TRANSCEIVER DESCRIPTION
SFP transceiver module for SMF, STM-1 1550nm wavelength, LC duplex connector, 80km
- DATASHEET
- SPECIFICATIONS
FORM FACTOR:
SFP
CONNECTOR / POLISH:
LC - Duplex PC
INTERFACE:
Singlemode
COMPLIANCE CODE:
ZX
OPERATING TEMPERATURE:
Standard
MODULATION:
NRZ
DISTANCE:
80 Km
TEMPERATURE RANGE:
0°C - 70°C
BANDWIDTH:
100 Mbit/s - 155 Mbit/s
DIGITAL DIAGNOSTIC MONITORING (DDM):
Yes, internally calibrated
POWER CONSUMPTION:
1 W
CDR:
None
SGMII:
No
INBUILT FEC:
No
POWERBUDGET (DB):
25 dB
TRANSMIT MIN/MAX PER LANE:
-3 dBm / 2 dBm
RECEIVER MIN/MAX PER LANE:
-28 dBm / -8 dBm (overload) @100M - 800M
WAVELENGTH TX (TYPICAL):
1550 nm
WAVELENGTH TX (RANGE):
1520 - 1580 nm
WAVELENGTH RX (TYPICAL):
1550 nm
WAVELENGTH RX (RANGE):
1260 - 1600 nm
LASER:
DFB
RECEIVER TYPE:
PIN
MODULATION:
NRZ @100M - 800M
EXTINCTION RATIO:
10 dB
SUPPORTED PROTOCOLS:
Fast Ethernet, STM-1
- COMPATIBLE WITH
- ADTRAN 1184544P5
- Barnfind BTSFP-ZX-SM-0680
- Ciena (ex. Nortel) NTTP05FF
- Cisco Systems GLC-FE-100ZX
- Cisco Systems SFP-OC12-LR2
- ComNet SFP-5
- Coriant (ex. Tellabs) TR-0006
Ericsson - RDH90120/B0213
Ericsson - RDH90120/C1428
- Hirschmann M-FAST SFP-LH/LC
- Huawei eSFP-1550nm-L-1.2
- Huawei eSFP-1550nm-L-4.2
- Keymile 37973053
- KTI Networks SFP-FCD-S60-A
- Marconi SU67AC
- Marconi SU67AE
- Moxa SFP-1FELLC-T
- Net Insight NPA0014-VL21
- Nexans 88645908
- Nokia (ex. Alcatel-Lucent) 1AB194670006
- Nokia (ex. Alcatel-Lucent) 1AB196360007
- Nokia (ex. Alcatel-Lucent) 1AB376360003
- Nokia (ex. Alcatel-Lucent) 1AZ672410001
- Nokia (ex. Alcatel-Lucent) 3HE00042AA
- Nokia Siemens Networks V50017-U332-K500
- Perle PSFP-100D-S2LC80
- RAD SFP-16
- SagemCOM 252709947
- Transition Networks TN-SFP-OC12S8
- Westermo 1100-0534
