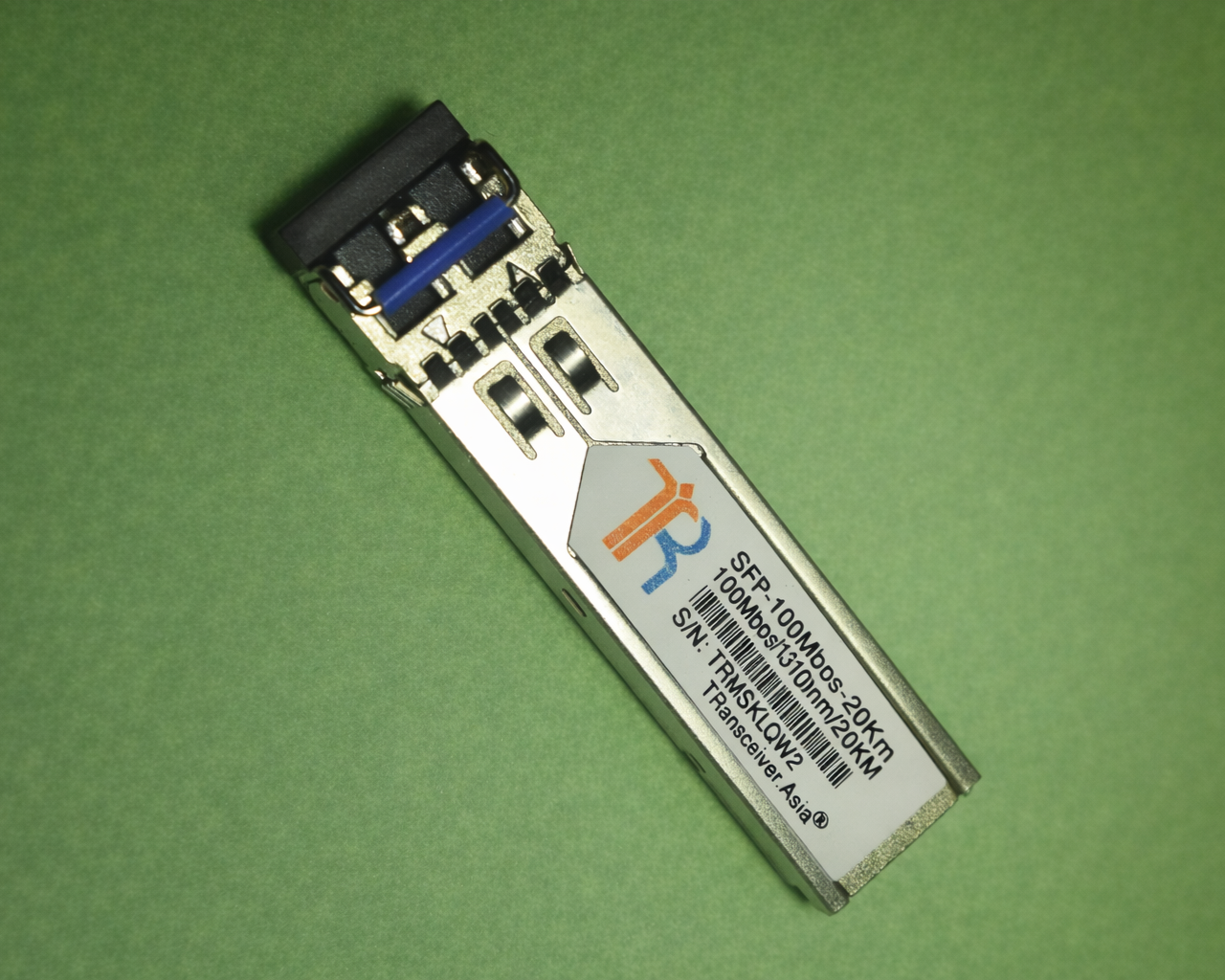

SFP-100Mbps-20Km
SFP transceiver module for SMF, STM-1 1310nm wavelength, LC duplex connecto, 20km
- 100Mbps SFP
- LC - Duplex
- 100 Mbit/s - 155 Mbit/s
- 0° C - 70° C
- Up to 20 Km
- Compliance Code: STM-1
- ORDERING GUIDE
PART NUMBER
TRA-SFP-100Mbps-20km
TRANSCEIVER DESCRIPTION
SFP transceiver module for SMF, STM-1 1310nm wavelength, LC duplex connecto, 20km
- DATASHEET
- SPECIFICATIONS
FORM FACTOR:
SFP
CONNECTOR / POLISH:
LC - Duplex PC
INTERFACE:
Singlemode
COMPLIANCE CODE:
STM-1
OPERATING TEMPERATURE:
Standard
MODULATION:
NRZ
DISTANCE:
20 Km
TEMPERATURE RANGE:
0°C - 70°C
BANDWIDTH:
100 Mbit/s - 155 Mbit/s
DIGITAL DIAGNOSTIC MONITORING (DDM):
Yes, internally calibrated
POWER CONSUMPTION:
1 W
CDR:
None
SGMII:
No
INBUILT FEC:
No
POWERBUDGET (DB):
13 dB
TRANSMIT MIN/MAX PER LANE:
-15 dBm / -8 dBm
RECEIVER MIN/MAX PER LANE:
-28 dBm / -8 dBm (overload) @100M - 800M
WAVELENGTH TX (TYPICAL):
1310 nm
WAVELENGTH TX (RANGE):
1260 - 1360 nm
WAVELENGTH RX (RANGE):
1310 nm
WAVELENGTH RX (RANGE):
1260 - 1620 nm
LASER:
FP
RECEIVER TYPE:
PIN
MODULATION:
NRZ @100M - 800M
EXTINCTION RATIO:
8.2 dB
SUPPORTED PROTOCOLS:
Fast Ethernet, STM-1
- COMPATIBLE WITH
- A10networks
- ADTRAN 1184543P2
- ADTRAN 1184543PG2
- ADVA 0061003002
- Alcatel-Lucent Ent. SFP-100-SM15
- Allied Telesis AT-SPFX/15
- Avaya (ex. Nortel)
- AA1419081-E5
- Barnfind BTSFP-LX-SM-0120
- barox AC-SFP-FXSME
- Brocade
- Brocade / Ruckus E1MG-100FX-IR
- Brocade / Ruckus OC3-SFP-IR1
- Check Point
- Ciena (ex. Nortel) NTTP02CD
- Ciena (ex. Nortel) NTTP02CF
- Ciena (ex. Nortel) NTTP08SD
- Ciena XCVR-010L31
- Cisco Systems GLC-FE-100LX
- Cisco Systems ONS-SI-155-I1
- Cisco Systems SFP-OC3-IR1
- Cisco Systems SFP-OC3-SR
- Clear-Com SFP LX100
- ComNet SFP-3
- Coriant (ex. Tellabs) TR-0001
- Coriant (ex. Tellabs) TR-0022
- D-LINK DEM-210
- Dell
- Dell (ex. Force10)
- Edge Core ET3201- FX20
- eks Engel SFP 100FX
- Ericsson RDH90120/A0213
- Ericsson RDH90120/B0213
- Extreme (ex. Enterasys) MGBIC-LC05
- Extreme 10066
- Ferrofish SFP-FE-SM1310
- FibroLAN
- Fluke Networks
- Fortinet
- Fujitsu
- H3C (ex. 3COM)
- Hirschmann M-FAST SFP-SM/LC
- HP H3C JD120B
- Huawei eSFP-1310nm-I-1
- Huawei eSFP-FE-LX-SM1310
- IMC 808-38113
- Infinera (ex. Transmode) TRX100037
- Intel SFP FX
- Juniper (ex BTI Systems)
- Juniper EX-SFP-1FE-LX
- Juniper SFP-1FE-LX
- Juniper SFP-OC3-IR
- Keymile 37013068
- Keymile 37973053
- KTI Networks
LANCOM - LAWO 981/60-81
- Lenovo (ex. Blade Network)
- LevelOne SFP-1311
- Marconi SU66AA
- MikroTik S-31DLC20D
- Moxa SFP-1FESLC-T
- MRV SFP-O3D-IR1
- Net Insight NPA0016-LJ11
- Netgear AFM735
- Nokia (ex. Alcatel-Lucent) 1AB194670004
- Nokia (ex. Alcatel-Lucent) 1AB194670007
- Nokia (ex. Alcatel-Lucent) 1AB376350001
- Nokia (ex. Alcatel-Lucent) 3FE25778AA
- Nokia (ex. Alcatel-Lucent) 3HE00035CAA
- Nokia Siemens Networks V50017-U323-K500
- OTN Systems V30813-S8-A1
- Overture 3000-055
- Overture 3000-079
- Palo Alto Networks
- Perle PSFP-100D-S2LC10
- Phoenix Contact FL SFP FX SM
- Planet MFB-F20
- RAD SFP-2D
- Radware SFP LX100
- Redback SFP-OC3-SM
- Ribbon (ex. ECI) OTFE_SM
- Ribbon (ex. ECI) OTR1_S3
- Riedel 1990003
- Rockwell 1783-SFP100LX
- Telco Systems BTI-SFP-FSM-LC
- TelcoBridges SFP-OC3-IR1
- TP-LINK
- Transition Networks TN-SFP-OC3S
- Ubiquiti Networks SFP LX100
- Waystream (ex. Packetfront)
- Westermo 1100-0132
- Zyxel SFP-100LX-20
