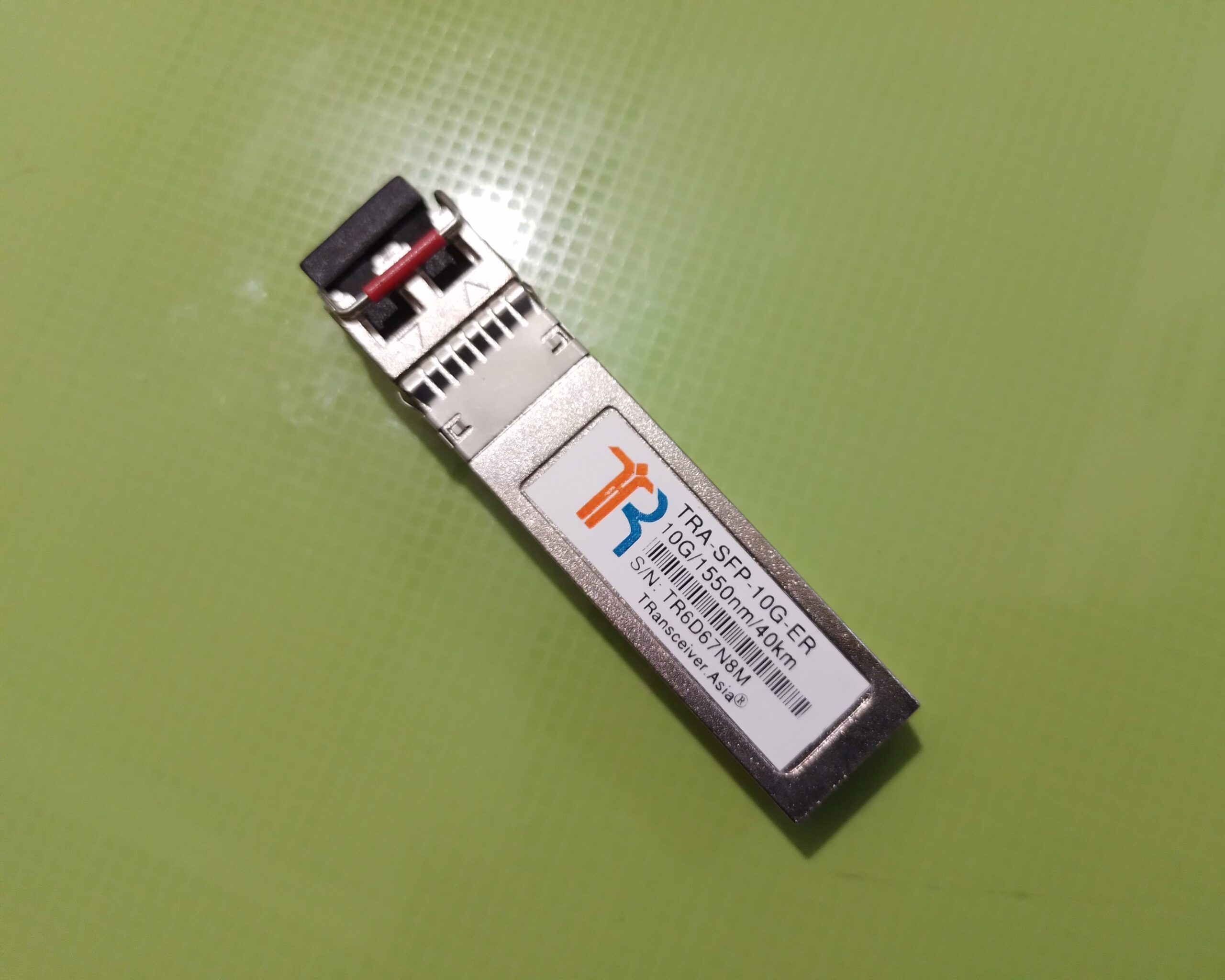

TRA-10G-ER 40KM 1550(A)

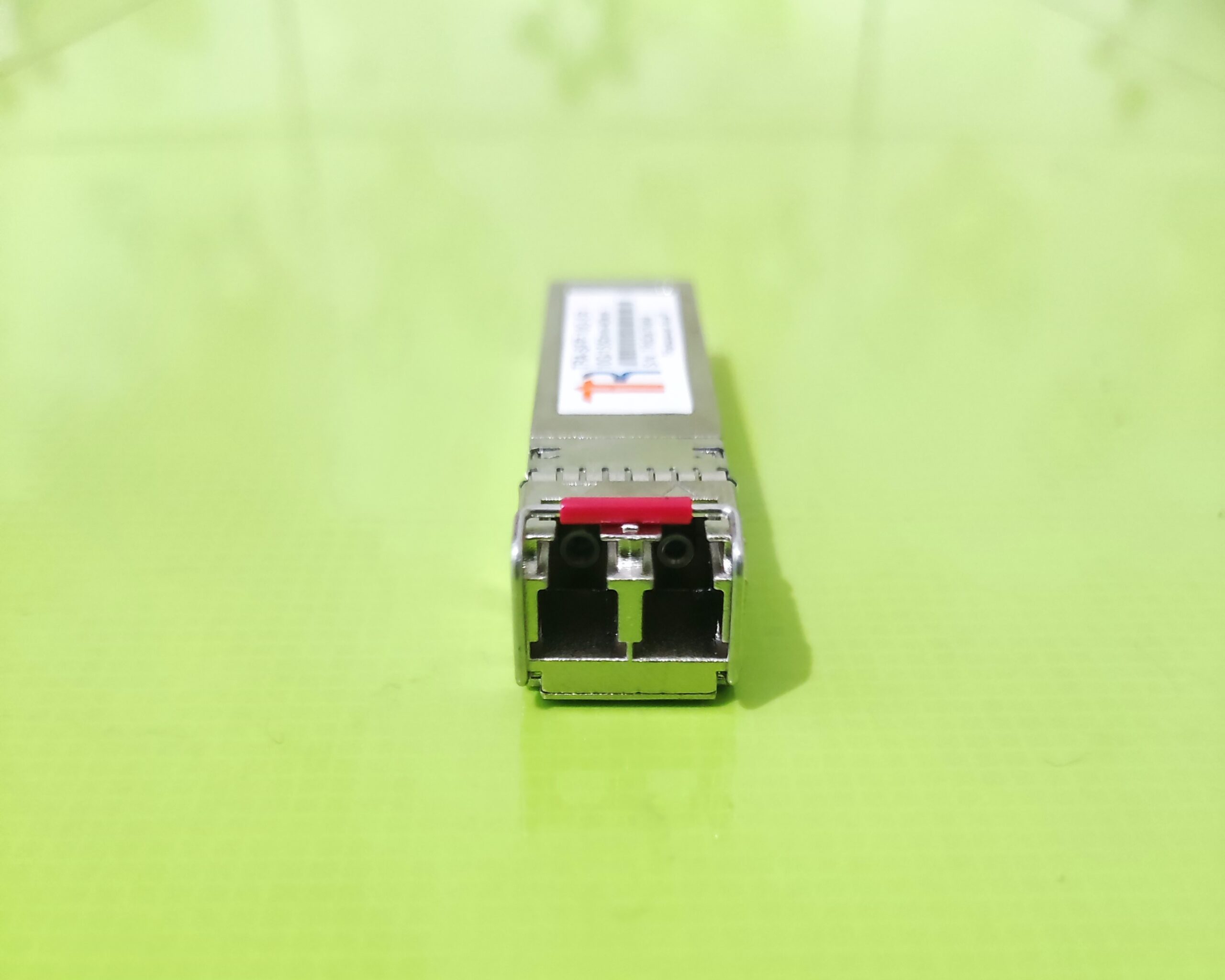

TRA-10G-ER 40KM 1550(B)

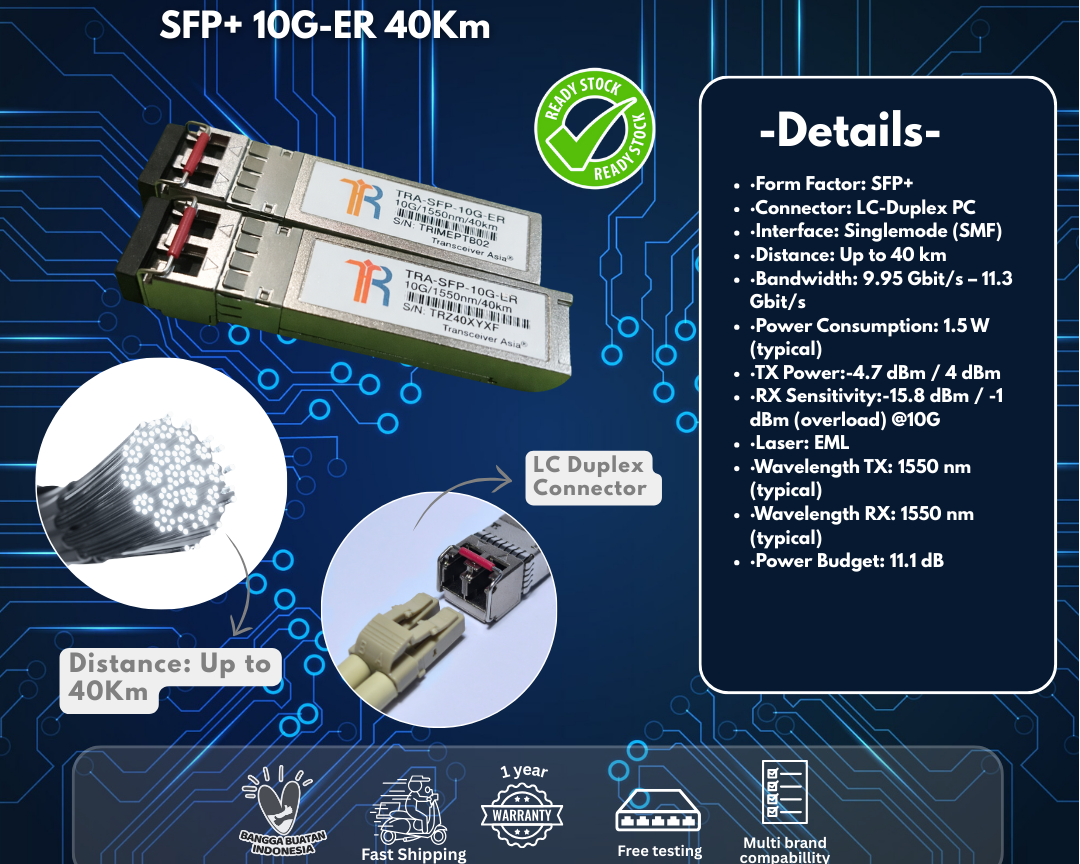

Instagram 10G-ER 40km

TRA-SFP-10G-ER

10GBASE-ER SFP+ 1550nm 40km Module
TRA-SFP-10G-ER
SFP 10G
ER
  • 10G SFP
  • LC - Duplex
  • 600 Mbit/s - 11.3 Gbit/s
  • 0° C - 70° C
  • Up to 40 Km
  • Compliance Code: ER
λ 1550 nm
40 Km
↓↑ 11.3 G
lc duplex singlemode
  • ORDERING GUIDE
PART NUMBER
TRA-SFP-10G-ER
TRANSCEIVER DESCRIPTION
10GBASE-ER SFP+ 1550nm 40km Module
  • DATASHEET

📄 Datasheet TRA-SFP-10G-ER

  • SPECIFICATIONS
FORM FACTOR:
SFP+
CONNECTOR / POLISH:
LC - Duplex PC
INTERFACE:
Singlemode
COMPLIANCE CODE:
ER
OPERATING TEMPERATURE:
Standard
MODULATION:
NRZ
DISTANCE:
40 Km
TEMPERATURE RANGE:
0°C - 70°C
BANDWIDTH:
600 Mbit/s - 11.3 Gbit/s
DIGITAL DIAGNOSTIC MONITORING (DDM):
Yes, internally calibrated
POWER CONSUMPTION:
1.5 W
CDR:
None
SGMII:
No
INBUILT FEC:
No
POWERBUDGET (DB):
11.1 dB
TRANSMIT MIN/MAX PER LANE:
-4.7 dBm / 4 dBm
RECEIVER MIN/MAX PER LANE:
-15.8 dBm / -1 dBm (overload) @10G
WAVELENGTH TX (TYPICAL):
1550 nm
WAVELENGTH TX (RANGE):
1530 - 1565 nm
WAVELENGTH RX (TYPICAL):
1550 nm
WAVELENGTH RX (RANGE):
1530 - 1565 nm
LASER:
EML
RECEIVER TYPE:
PIN
MODULATION:
NRZ @10G
EXTINCTION RATIO:
6 dB
SUPPORTED PROTOCOLS:
10G Ethernet, 10G FC, 8G Fibre Channel, Gigabit Ethernet, LTE 0.614G CPRI, LTE 0.768G OBSAI, LTE 1.22G CPRI, LTE 1.536G OBSAI, LTE 2.458G CPRI, LTE 3.072G OBSAI, LTE 4.915G CPRI, LTE 6.144G CPRI, LTE 6.144G OBSAI, LTE 7.373G CPRI, LTE 9.830G CPR
  • COMPATIBLE WITH
  • A10networks AXSK-SFP+ LR
  • Accedian Networks 7SP-500
  • ADTRAN 1442440G1
  • ADVA 1061701861-01
  • Alcatel-Lucent Ent. SFP-10G-ER
  • Allied Telesis AT-SP10ER40/I
  • Arista 3rd_Party SFP-10G-ER
  • Arista SFP-10G-ER
  • Aruba Networks (ex. HP Network) J9153A ProCurve
  • Aruba Networks (ex. HP Network) J9153D CX
  • Avaya (ex. Nortel)
  • AA1403013-E6
  • barox AC-SFP+-SM-40
  • Brocade / Ruckus 10G-SFPP-ER
  • Brocade 10G-SFPP-ER
  • Brocade XBR-000174
  • Brocade XBR-000217
  • Calix 100-01511
  • Centec SFP+ ER
  • Check Point CPAC-TR-10LR
  • Chelsio 12339
  • Ciena 160-9204-900
  • Ciena XCVR-S40V55
  • Cisco (ex. Meraki) MA-SFP-10GB-ER
  • Cisco Systems DS-SFP-FC8G-ER
  • Cisco Systems ONS-SC+-10G-ER
  • Cisco Systems SFP-10G-ER
  • Cisco Systems SFP-10G-ER-S
  • CommScope (ex. Arris) 781346
  • ComNet SFP-10G-ER
  • Cyan 280-0276-00
  • D-LINK DEM-433XT
  • D-LINK DEM-433XT-DD
  • Dell (ex. Force10) GP-10GSFP-1E
  • Dell 407-BBEH
  • Dell 407-BBOV
  • Dell 430-4585
  • Edge Core ET5402-ER-I
  • Ericsson RDH901029/1
  • Evertz SFP10G-TR15S
  • Extreme (ex. Enterasys) 10GB-ER-SFPP
  • Extreme 10309
  • F5 Networks 12343
  • FibroLAN SFPP-15-80
  • Fluke Networks 12344
  • Fortinet FG-TRAN-SFP+LR
  • Fortinet FN-TRAN-SFP+ER
  • Fujitsu FIM35032/110
  • Gigamon SFP-534
  • Hirschmann M-SFP-10-ER/LC EEC
  • Hitachi 10GBASE-ER
  • HP H3C JG234A
  • HP Storage (B-Series) AW538A
  • Huawei OMXD30002
  • Huawei OSX040B02
  • Huawei OSX040B03
  • Huawei OSX040N00
  • Huawei OSX040N01
  • Huawei OSX040N08
  • IBM Storage 45W1216
  • IBM Storage 45W2283
  • IBM Storage 45W2420
  • Infinera (ex. Transmode) TRX100114
  • Infinera TOM-10G-SFPP-IR2
  • Intel E10GSFPLR
  • Juniper EX-SFP-10GE-ER
  • Juniper QFX-SFP-10GE-ER
  • Juniper SFP-10GE-ER
  • Juniper SFPP-10GE-ER
  • Juniper SRX-SFP-10GE-ER
  • Keymile 37973312
  • Keysight (ex. Ixia) SM1310-PLUS
  • KTI Networks SFP-10G-ER-A
  • LANCOM 12350
  • Lenovo (ex. Blade Network) BN-CKM-SP-ER
  • Lenovo (ex. IBM) 90Y9415
  • LevelOne SFP-6141
  • MikroTik S+31DLC10D
  • Motorola
  • Moxa SFP-10GERLC
  • MRV SFP-10GD-ER
  • Net Insight NPA0077-ER01
  • Netgear AXM762
  • NetOptics SFP+KT-ER
  • Netscout 321-1494
  • Nokia (ex. Alcatel-Lucent) 1AB390930014
  • Nokia (ex. Alcatel-Lucent) 3FE62600DA
  • Nokia (ex. Alcatel-Lucent) 3FE65831AA
  • Nokia (ex. Alcatel-Lucent) 3FE65832AA
  • Nokia (ex. Alcatel-Lucent) 3HE05036AA
  • Nokia Siemens Networks V50017-U624-K500
  • Nortel / Juniper / NSN SFP+-ER
  • NoviFlow 400000508
  • Nvidia (ex. Mellanox)
  • MFM1T02A-LR
  • Oracle
  • Packetlight SL112
  • Palo Alto Networks PAN-SFP-PLUS-ER
  • PBN SFP+-GX55ER-LCPC
  • Perle PSFP-10GD-S2LC40
  • ProfiTap SFP+ ER
  • QLogic SFP10-LR-SP
  • Quanta SFP+ ER
  • RAD SFP-P-3DH
  • Radware 12355
  • Raisecom USFP+-192-S34-D-L
  • Ribbon (ex. ECI) OTP10_ER
  • Solarflare
  • Supermicro 12356
  • Telco Systems BTI-10GER-DD-SFP+
  • TP-LINK
  • Transition Networks
  • Ubiquiti Networks UF-SM-10G
  • Waystream (ex. Packetfront) SFP-10GE-LR
  • Xtera Communications SFP+ ER
  • ZTE SFP-10GE-S40K
  • Zyxel SFP10G-ER
