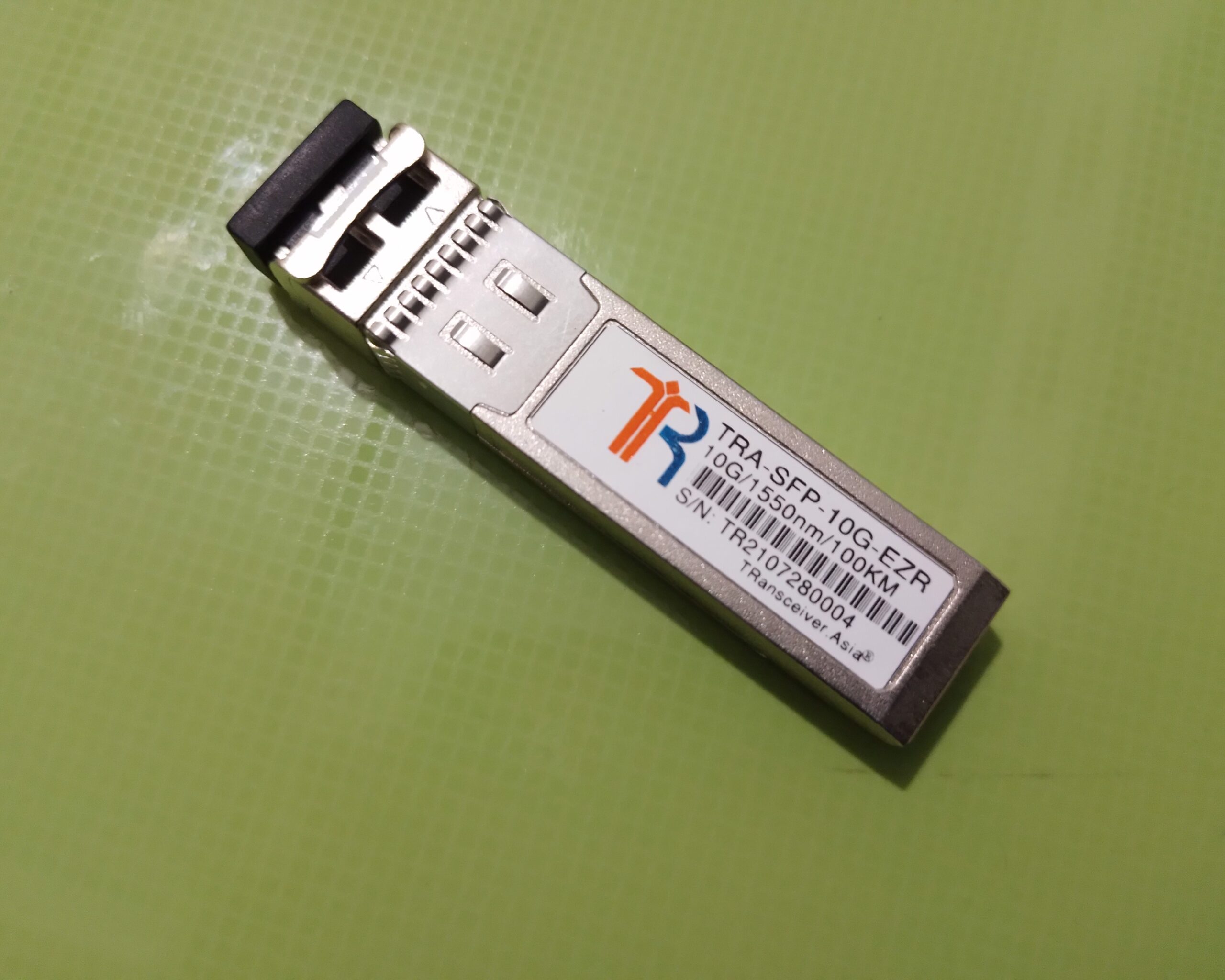

TRA-SFP-10G-EZR 100KM(A)

TRA-SFP-10G-EZR 100KM(B)

Instagram 10G-100km

TRA-SFP-10G-EZR

10GBASE-EZR SFP+ 1550nm 100km Module

PART NUMBER

TRA-SFP-10G-EZR

TRANSCEIVER DESCRIPTION

10GBASE-EZR SFP+ 1550nm 100km Module

📄 Datasheet TRA-SFP-10G-EZR

FORM FACTOR:

SFP+

CONNECTOR / POLISH:

LC - Duplex PC

INTERFACE:

Singlemode

COMPLIANCE CODE:

EZR

OPERATING TEMPERATURE:

Standard

MODULATION:

NRZ

DISTANCE:

100 Km

TEMPERATURE RANGE:

0°C - 70°C

BANDWIDTH:

9.95 Gbit/s - 11.3 Gbit/s

DIGITAL DIAGNOSTIC MONITORING (DDM):

Yes, internally calibrated

POWER CONSUMPTION:

1.5 W

CDR:

TX and RX

SGMII:

No

INBUILT FEC:

No

POWERBUDGET (DB):

26 dB

TRANSMIT MIN/MAX PER LANE:

1.5 dBm / 5 dBm

RECEIVER MIN/MAX PER LANE:

-24.5 dBm / -8 dBm (overload) @10G

WAVELENGTH TX (TYPICAL):

1550 nm

WAVELENGTH TX (RANGE):

1520 - 1580 nm

WAVELENGTH RX (TYPICAL):

1550 nm

WAVELENGTH RX (RANGE):

1260 - 1600 nm

LASER:

EML

RECEIVER TYPE:

APD

MODULATION:

NRZ @10G

EXTINCTION RATIO:

8.2 dB

SUPPORTED PROTOCOLS:

10G Ethernet, 10G FC, OTU2, STM-64
