TRA-SFP-10G-EZR+

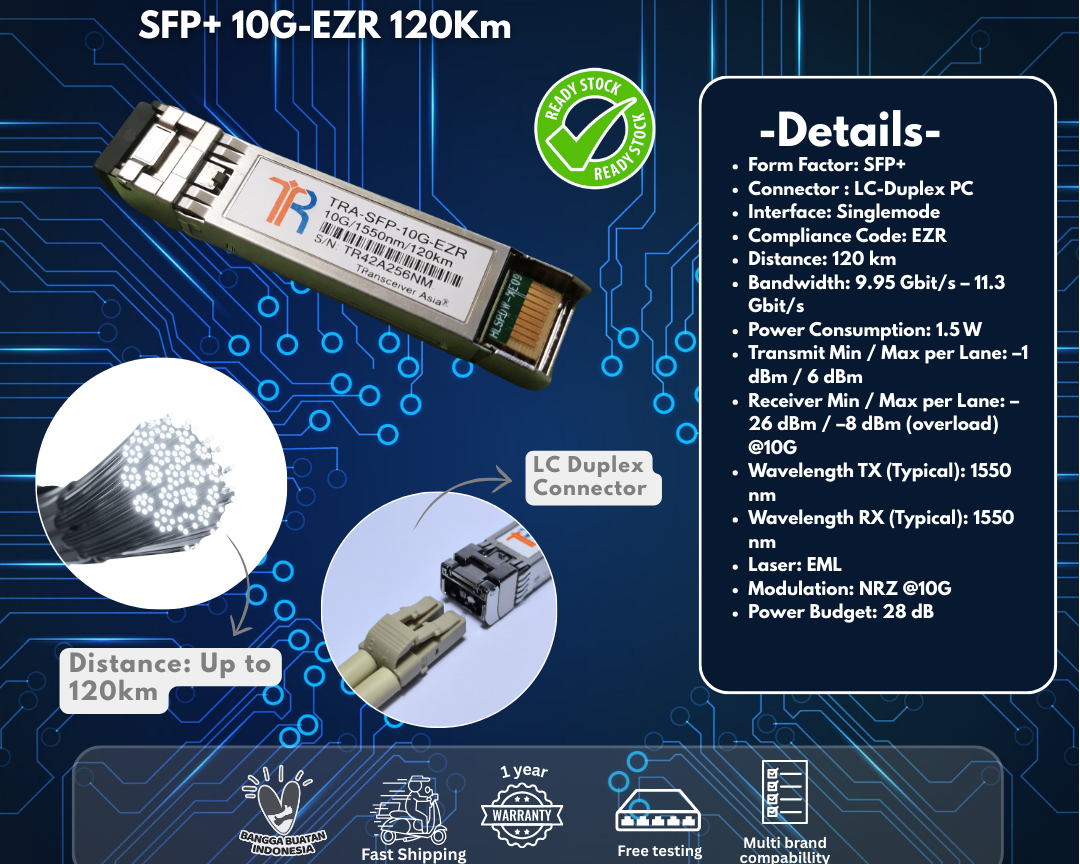

10GBASE-EZR+ SFP+ 1550nm 120km Module
- 10G SFP
- LC - Duplex
- 9.95 Gbit/s – 11.3 Gbit/s
- 0° C - 70° C
- Up to 120 Km
- Compliance Code: EZR+
- ORDERING GUIDE
PART NUMBER
TRA-SFP-10G-EZR+
TRANSCEIVER DESCRIPTION
10GBASE-EZR+ SFP+ 1550nm 120km Module
- DATASHEET
- SPECIFICATIONS
FORM FACTOR:
SFP+
CONNECTOR / POLISH:
LC - Duplex PC
INTERFACE:
Singlemode
COMPLIANCE CODE:
EZR
OPERATING TEMPERATURE:
Standard
MODULATION:
NRZ
DISTANCE:
120 Km
TEMPERATURE RANGE:
0°C - 70°C
BANDWIDTH:
9.95 Gbit/s – 11.3 Gbit/s
DIGITAL DIAGNOSTIC MONITORING (DDM):
Yes, internally calibrated
POWER CONSUMPTION:
1.5 W
CDR:
TX and RX
SGMII:
No
INBUILT FEC:
No
POWERBUDGET (DB):
28 dB
TRANSMIT MIN/MAX PER LANE:
–1 dBm / 6 dBm
RECEIVER MIN/MAX PER LANE:
–26 dBm / –8 dBm (overload) @10G
WAVELENGTH TX (TYPICAL):
1550 nm
WAVELENGTH RX (TYPICAL):
1550 nm
LASER:
EML
MODULATION:
NRZ @100G
SUPPORTED PROTOCOLS:
10G Ethernet
- COMPATIBLE WITH
- A10networks 12394
- Accedian Networks 7SP-402
- ADTRAN 1442440G1
- ADVA 12395
- Alcatel-Lucent
- Enterprise SFP-10G-ZR
- Allied Telesis AT-SP10ZR80/I
- Arista 3rd Party SFP-10G-ZR
- Arista SFP-10G-ZR
- Aruba Networks (ex HP Network) J9153A
- Avaya (ex Nortel)
- AA1403016-E6
- Brocade / Ruckus 10G-SFPP-ZR
- Brocade 10G-SFPP-ER
- Brocade 10G-SFPP-ZR
- Brocade XBR-000174
- Calix 100-01971
- Centec SFP+ ZR
- Check Point 12398
- Chelsio 12399
- Ciena 160-9205-900
- Ciena XCVR-S80V55
- Cisco (ex Meraki) MA-SFP-10GB-ZR
- Cisco Systems ONS-SC+-10G-ZR
- Cisco Systems SFP-10G-ZR
- Cisco Systems SFP-10G-ZR-S
- CommScope (ex Arris) 781347
- ComNet SFP-10G-ZR
- Cyan 280-0277-00
- D-LINK DEM-434XT
- Dell (ex Force10) GP-10GSFP-1Z
- Dell 407-BBOV
- Dell 407-BBRK
- Edge Core ET5402-ZR-I
- Ericsson RDH10262/3
- Evertz SFP10G-TR15H
- Extreme (ex Enterasys) 10GB-ZR-SFPP
- Extreme 10309
- Extreme 10310
- F5 Networks 12404
- FibroLAN SFPP-15-80
- Fluke Networks 12406
- Fortinet FG-TRAN-SFP+LR
- Fujitsu FIM35051
- Hirschmann M-SFP-10-ZR/LC
- HP H3C JG234A
- Huawei OSX080N01
- Huawei OSX080N04
- Infinera (ex Transmode) TRX100115
- Infinera TOM-10G-SFPP-IR2
- Intel E10GSFPLR
- Juniper EX-SFP-10GE-ZR
- Juniper SFP-10GE-ER
- Juniper SFPP-10GE-ZR
- Keymile 37973304
- Keysight (ex Ixia) SM1310-PLUS
- KTI Networks SFP-10G-ER-A
- LANCOM 12414
- Lenovo (ex Blade Network) BN-CKM-SP-ER
- LevelOne 12415
- MikroTik S+31DLC10D
- Motorola
- Moxa SFP-10GZRLC
- MRV SFP-10GD-ZR
- Net Insight NPA0077-ZR01
- Netgear AXM762
- NetOptics SFP+KT-ER
- Nokia (ex Alcatel-Lucent) 3AL82019AA
- Nokia (ex Alcatel-Lucent) 3FE65832AA
- Nokia (ex Alcatel-Lucent) 3HE05894AA
- Nokia Siemens
- Networks V50017-U624-K500
- Nortel / Juniper / NSN SFP+-ZR
- Nvidia (ex Mellanox)
- MC3305611-ZR
- Oracle
- Packetlight SL112
- Palo Alto Networks PAN-SFP-ZX
- PBN SFP+-GX55ZR-LCPC
- Penguin Computing SFP+ ER
- RAD SFP-P-2DH
- Radware 12422
- Ribbon (ex ECI) OTP10_ZR
- Solarflare
- Supermicro 12423
- Telco Systems BTI-10GEZR-DD-SFP+
- Telco Systems BTI-10GZR-DD-SFP+
- TP-LINK
- Transition Networks
- TN-10GSFP-LR7
- Ubiquiti Networks UF-SM-10G
- ZTE SFP-10GE-S80K
- Zyxel
