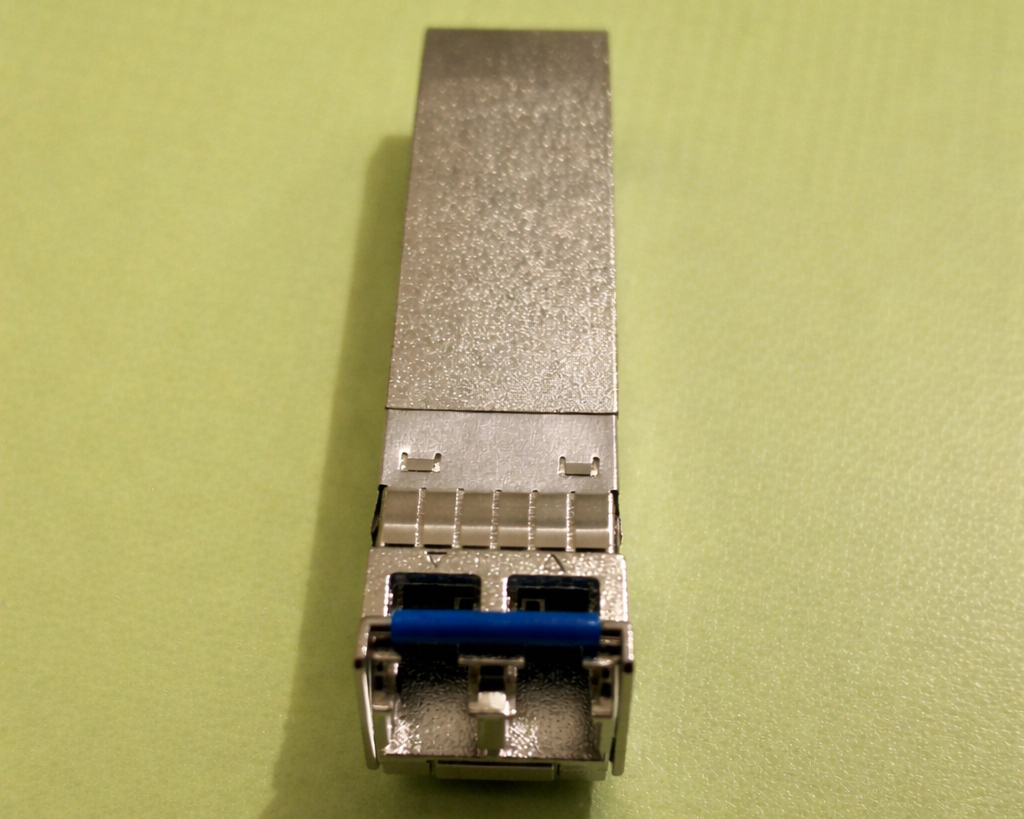

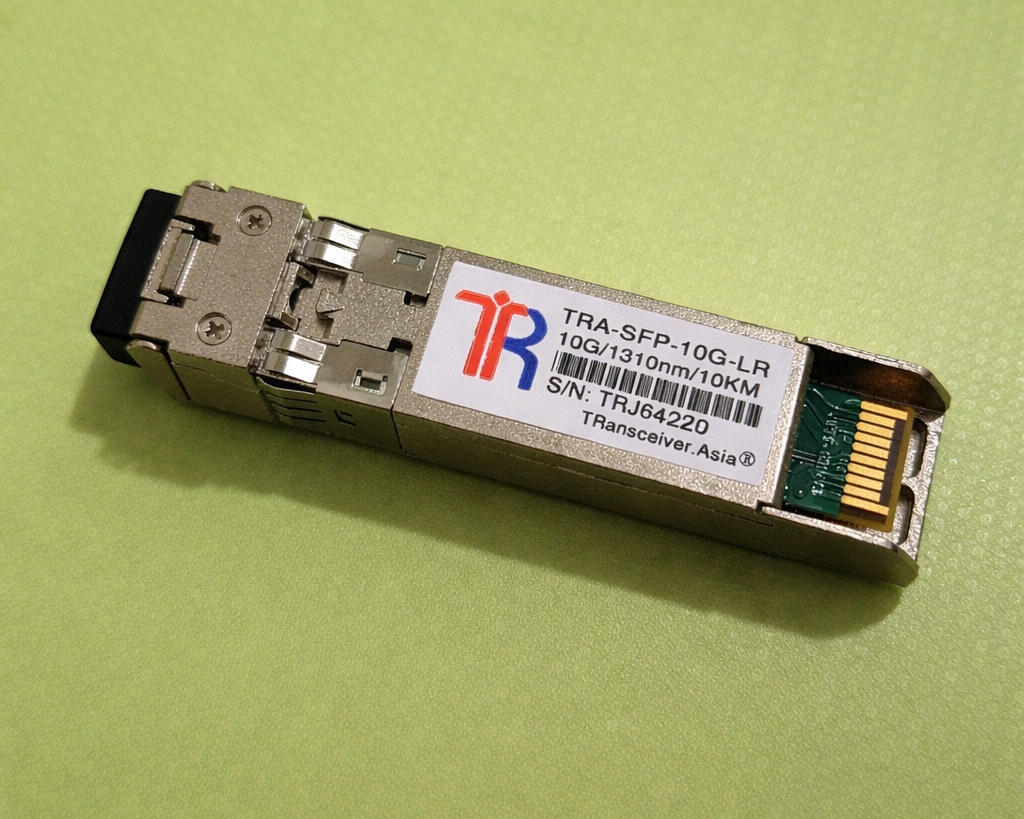

TRA-SFP-10G-LR
10GBASE-LR SFP+ 1310nm 10km Module
- 10G SFP
- LC - Duplex
- 9.95 Gbit/s – 11.3 Gbit/s
- 0° C - 70° C
- Up to 10 Km
- Compliance Code: LR
- ORDERING GUIDE
PART NUMBER
TRA-SFP-10G-LR
TRANSCEIVER DESCRIPTION
10GBASE-LR SFP+ 1310nm 10km Module
- DATASHEET
- SPECIFICATIONS
FORM FACTOR:
SFP+
CONNECTOR / POLISH:
LC - Duplex PC
INTERFACE:
Singlemode
COMPLIANCE CODE:
LR
OPERATING TEMPERATURE:
Standard
MODULATION:
NRZ
DISTANCE:
10 Km
TEMPERATURE RANGE:
0°C - 70°C
BANDWIDTH:
600 Mbit/s - 11.3 Gbit/s
DIGITAL DIAGNOSTIC MONITORING (DDM):
Yes, internally calibrated
POWER CONSUMPTION:
1 W
CDR:
None
SGMII:
No
INBUILT FEC:
No
POWERBUDGET (DB):
6.2 dB
TRANSMIT MIN/MAX PER LANE:
-8.2 dBm / 0.5 dBm
RECEIVER MIN/MAX PER LANE:
-14.4 dBm / 0.5 dBm (overload) @10G
WAVELENGTH TX (TYPICAL):
1310 nm
WAVELENGTH TX (RANGE):
1270 - 1355 nm
WAVELENGTH RX (TYPICAL):
1310 nm
WAVELENGTH RX (RANGE):
1260 - 1565 nm
LASER:
DFB
RECEIVER TYPE:
PIN
MODULATION:
NRZ @10G
EXTINCTION RATIO:
3.5 dB
SUPPORTED PROTOCOLS:
10G Ethernet, 10G FC, 8G Fibre Channel, Gigabit Ethernet, LTE 0.614G CPRI, LTE 0.768G OBSAI, LTE 1.22G CPRI, LTE 1.536G OBSAI, LTE 2.458G CPRI, LTE 3.072G OBSAI, LTE 4.915G CPRI, LTE 6.144G CPRI, LTE 6.144G OBSAI, LTE 7.373G CPRI, LTE 9.830G CPRI
- COMPATIBLE WITH
- A10networks AXSK-SFP+ LR
- Accedian Networks 7SN-400
- ADTRAN 1442410G1
- ADVA 1061701850-02
- ADVA 1061701850-03
- ADVA 1061701851-02
- ADVA 1061701853-01
- Aerohive Networks AH-ACC-SFP-10G-LR
- Alcatel-Lucent Ent. 903432-90
- Alcatel-Lucent Ent. SFP-10G-LR
- Allied Telesis AT-SP10LR
- Allnet ALL4758
- Arbor Networks SFP+ LR
- Arista 3rd_Party SFP-10G-LR
- Arista SFP-10G-LR
- Arista SFP-1G-LX
- Aruba Networks JW092A
- Aruba Networks (ex. HP Network) 455886-B21
- Aruba Networks (ex. HP Network) 455886-B21_2
- Aruba Networks (ex. HP Network) 455888-001
- Aruba Networks (ex. HP Network) J9151A ProCurve
- Aruba Networks (ex. HP Network) J9151D CX
- Aruba Networks (ex. HP Network) J9151D ProCurve
- Aruba Networks (ex. HP Network) J9151E CX
- Aruba Networks (ex. HP Network) J9151E ProCurve
- Aruba Networks (ex. HP Network) S0G21A
- ASUS SFP+ LR
- ATTO SFP8-0000-R00
- Avaya (ex. Nortel) AA1403011-E6
- Aviat Networks 079-422668-001
- Aviat Networks 079-422678-001
- Axon SFP+ LR
- barox AC-SFP+-SM-10
- Barracuda Networks SFP+ LR
- Blackbox LSP422
- Blackmagic Design SFP+ LR
- Broadcom SFP+ LR
- Brocade / Ruckus 10G-SFPP-LR
- Brocade 10G-SFP-LR
- Brocade XBR-000153
- Brocade XBR-000182
- Brocade XBR-000217
- Calix 100-01512
- Cambium Networks SFP-10G-LR
- Casa Systems SFP+ LR
- Centec SFP+ LR
- Ceragon AX-SFP+10G-SM
- Cerio SLC-10GLRS10
- Check Point CPAC-TR-10LR
- Check Point CPAC-TR-10LR-C
- Chelsio SM10G-LR
- Ciena (ex. Nortel) NTTP30CFE6
- Ciena 160-9103-900
- Ciena XCVR-S10V31
- Cisco (ex. Meraki) MA-SFP-10GB-LR
- Cisco (ex. Meraki) MA-SFP-1GB-LX10
- Cisco Systems (ex. Viptela) VIP-SFP+-10GE-LR
- Cisco Systems DS-SFP-FC8G-LW
- Cisco Systems ONS-SC+-10G-LR
- Cisco Systems SFP-10G-LR
- Cisco Systems SFP-10G-LR-S
- Clavister APP-SFP-10G-LR
- CommScope (ex. Arris) 801146
- ComNet SFP-10G-LR
- Coriant (ex. Tellabs) 81.71T-SPMRSR1-R6
- CTC Union ISFP-S9010-31-D
- Cumulus Networks SFP+ LR
- Cyan 280-0092-00
- D-LINK DEM-432XT
- D-LINK DEM-432XT-DD
- Datto DNW-SFP-10GB-LR
- Dell (ex. Force10) GP-10GSFP-1L
- Dell 0RN84N
- Dell 0T307D
- Dell 330-2409
- Dell 330-4328
- Dell 331-5310
- Dell 407-10941
- Dell 407-BBEE
- Dell 407-BBOP
- Dell 407-BBZV
- Dell 430-4146
- Delock 86171
- Edge Core ET5402-LREMC NEX-5020-10GL
- Emulex LPe12100-OPT
- Emulex OC10-LR-OPT-1
eneo SFP-1310S10-10G - Ericsson RDH1025/3
- Ericsson RDH901028/1
- Evertz SFP10G-TR13
- Extreme (ex. Enterasys) 10GB-LR-SFPP
- Extreme 10302
- F5 Networks OPT-0017
- FibroLAN SFPP-13-10
- FieldCast FC-TxRx-06-31
- Fireeye LR10GPX-HW
- Fluke Networks OPVXG-SFP-PLUS-LR
- Fluke Networks VX_00009
- Forcepoint MOD-SFP-10G-LR
- Fortinet FG-TRAN-SFP+LR
- Fortinet FN-TRAN-SFP+LR
- Freebox SFP-10G-LR
- Fujitsu S26361-F3986-E4
- Gigamon SFP-533
- Grandstream SM1310-10KM-10G
- Grassvalley SFP+ LR
H3C (ex. 3COM) 0231A0A8 - Hirschmann M-SFP-10-LR/LC EEC
- Hitachi 10G-SFPP-LR.P
- HP H3C JD094B
- HP H3C JL439A
- HP Storage (B-Series) AJ717A
- HP Storage (B-Series) AW584A
- HP Storage (B-Series) QK727A
- HP Storage (H-Series) 720999-002
- Huawei OSX001001
- Huawei OSX001002
- Huawei OSX010000
- Huawei OSX010N01
- Huawei OSX010N05
- Huawei OSX010N09
- Huawei OSX010N30 (34060742)
- Huawei SFP-10G-LR (02310QDJ)
- Huawei SFP-10G-LR (02313URL)
- Huawei SFP-10G-LR (02318170)
- IBM Storage 45W1193
- IBM Storage 45W1216
- IBM Storage 45W2420
- Infinera (ex. Transmode) TRX100100
- Infinera TOM-10G-SFPP-SR1
- Infinera TOM-10GE-LRL
- Infortrend SFP+ LR
- Intel E10GSFPLR
- Intel Netscaler SFP+ LR
- Juniper EX-SFP-10GE-LR
- Juniper QFX-SFP-10GE-LR
- Juniper SFP-10GE-LR
- Juniper SFPP-10G-LRT2-C
- Juniper SFPP-10GE-LR
- Juniper SFPP-10GE-LR-IT
- Juniper SRX-SFP-10GE-LR
- Kemp Technologies LM-SFP-LR
- Keymile 37973134
- Keysight (ex. Ixia) SM1310-PLUS
- KTI Networks SFP-10G-LR-A
- kvm-tec KT-7017
- LANCOM SFP-LX-LC10
- LAWO 981/60-81
- Lenovo (ex. Blade Network) BN-CKM-SP-LR
- Lenovo (ex. IBM) 00AR095
- Lenovo (ex. IBM) 31P1658
- Lenovo (ex. IBM) 45W2417
- Lenovo (ex. IBM) 78P3817
- Lenovo (ex. IBM) 81Y2493
- Lenovo (ex. IBM) 99Y0229
- Lenovo 00FE331
- Lenovo 90Y9412
- LevelOne SFP-6121
- LINDY 25039
- Luminex LU9001117
- Luminex LU9001152
- Matrox SFP+ LR
- McAfee IAC-SFTLR-FOTA
- MikroTik S+31DLC10D
- Motorola 584837-001-00
- Motorola NX-7500-SFPPL-LX
- Moxa SFP-10GLRLC
- MRV SFP-10GD-LR
- Myricom 10G-SFP-LR
napatech 802-0039-01-01 - NEC B02035-W0N45
- Net Insight NPA0077-LRD1
- NetApp X6569-R6
- NetApp X6588-R6
- NetApp X6589-R6
- NetApp X6601A-R6
- NetApp X6604A
- Netgate SFP-10G-LR
- Netgear AXM762
- NetOptics SFP+KT-LR
- Netscout 321-1487
- Nevion SFP-TR10-13T-LR
- Niveo NVM10RLG
- Nokia (ex. Alcatel-Lucent) 1AB390930002
- Nokia (ex. Alcatel-Lucent) 3FE62600AA
- Nokia (ex. Alcatel-Lucent) 3FE62600CA
- Nokia (ex. Alcatel-Lucent) 3FE62600DA
- Nokia (ex. Alcatel-Lucent) 3HE04823AA
- Nokia (ex. Alcatel-Lucent) 3HE09327AA
- Nokia Networks FOSG 472063A.101
- Nokia Networks FOTB 473472A.101
- Nokia Networks P206994
- Nokia Siemens
- Networks V50017-U622-K500
- Nortel / Juniper / NSN SFP+-LR
- Novastar SFP-10G-LR
- NoviFlow 400000504
- Nutanix X-XCVR-LR-SFP+
- Nvidia (ex. Mellanox) MFM1T02A-LR
- OpenGear SFP+LR
- OPNsense SFP10GLR1310
- Oracle X5562A-Z
- Packetlight SL110
- Packetlight SL112
- Palo Alto Networks
- PAN-SFP-PLUS-LR
- PBN SFP+-GX3131-LCPC
- Penguin Computing SFP+ LR
- Peplink SFP+ LR
- Perle PSFP-10GD-S2LC10
- Planet MTB-LR
- ProfiTap PT-10G-LR-31
- PulseSecure SFP+ LR
- Pure Storage FA-10Gb-Eth-SFP-LR
- Pure Storage FA-8Gb-FC-SFP-LR
- Pure Storage FA-XR2-10G-Eth-SFP-LR
- QLogic SFP10-LR-SP
- QLogic SFP8-LW-1PK
- QNAP SFP+ LR
- Quanta SFP+ LR
- RAD SFP-P-1DH
- Radware 9062196
- Raisecom USFP+-192-S31-DL
- ReadyLinks 1/10-SM-1310-10K
- Ribbon (ex. ECI) OTP10_LR
- Riedel 1990130
- Riverbed TRC-1-SFPP-LR
- SAF Tehnika I0AOM005
- Sandvine SFP+ LR
- Securepoint E10GSFPLR
- Siemens 6GK5993-1AU00-8AA0
- Siklu AX-SFP+10G-SM
- Solarflare SFM10G-LR
- SonicWALL 01-SSC-9786
- Sonnet Technologies G10E-SFP-LR
- Sony OTM-10GSR1
- Sophos ASG0000LR
- Sophos ITFZTCHLR
- Spirent ACC-6051A
- Spirent ACC-6082A
- StarTech SFP10GLRST
- Stormshield NA-TRANS-DUALSFP-LR
- Sun 5562A-Z
- Supermicro AOC-E10GSFPLR
- Synology SFP+ LR
- Telco Systems BTI-10GLR-DD-SFP+
- TP-LINK TL-SM5110-LR
- TP-LINK TXM431-LR
- Transition Networks
- TN-10GSFP-LR1
- Trend Micro (ex.
- TippingPoint) JC860A
- TRENDnet TEG-10GBS10
- Ubiquiti Networks UF-SM-10G
- voleatech SFP+ LR
- VSS monitoring VX_00009
- WatchGuard WG8583-LR
- Waystream (ex.
- Packetfront) SFP-10GE-LR
- Wildpackets SFP+ LR
- Xilinx SFP+ LR
- Xtera Communications SFP+ LR
- Xtera Communications SFPP-10-10GD-XTRA
- Yamaha SFP-SWRT-LR
- ZeeVee Z4KSFP10G31-10K
- Zhone MXK-10GE-SFP+-20KM-1310
- ZTE SFP-10GE-S10K
- Zyxel SFP10G-LR
