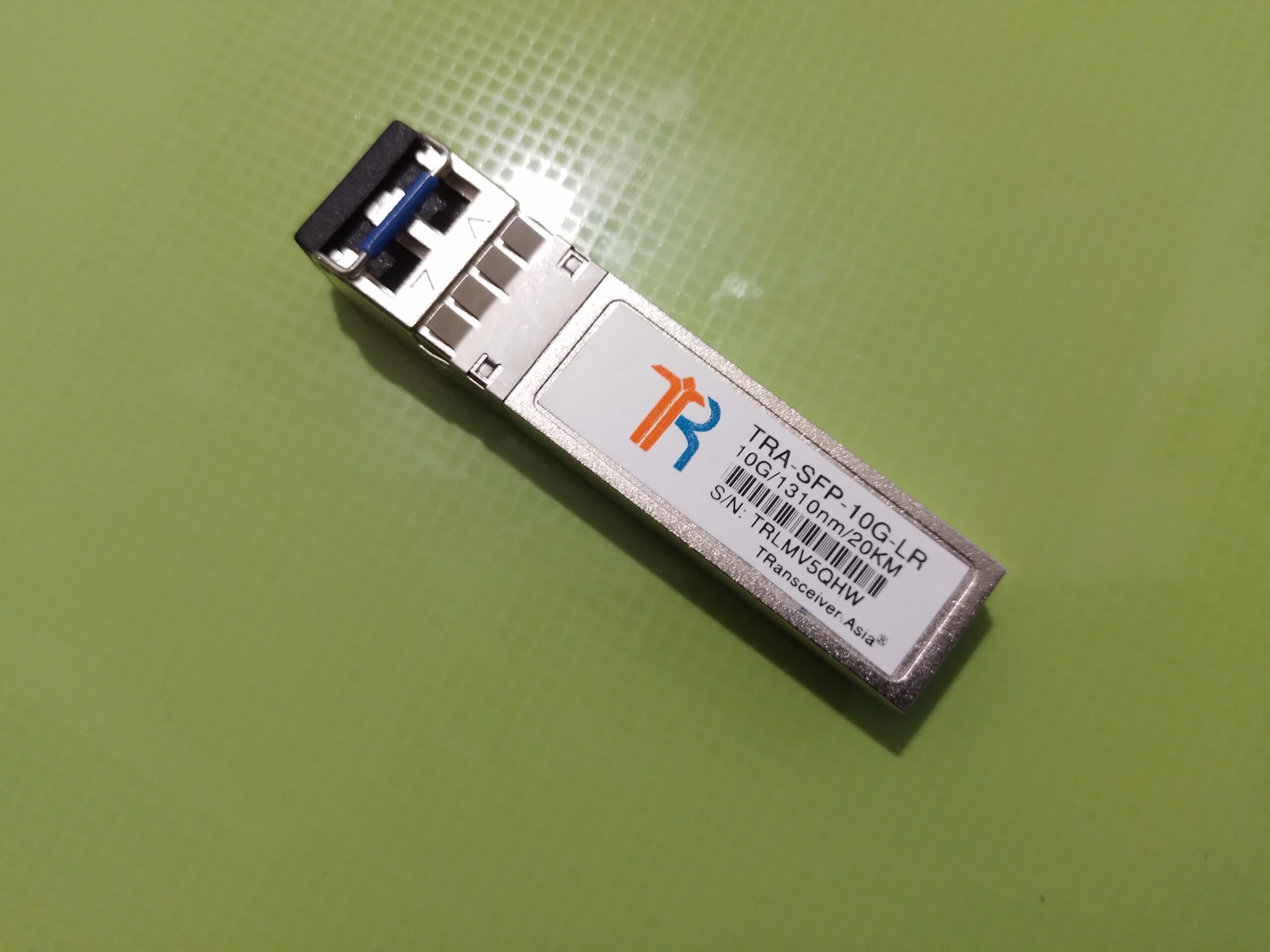

TRA-SFP-10G-LR (A)

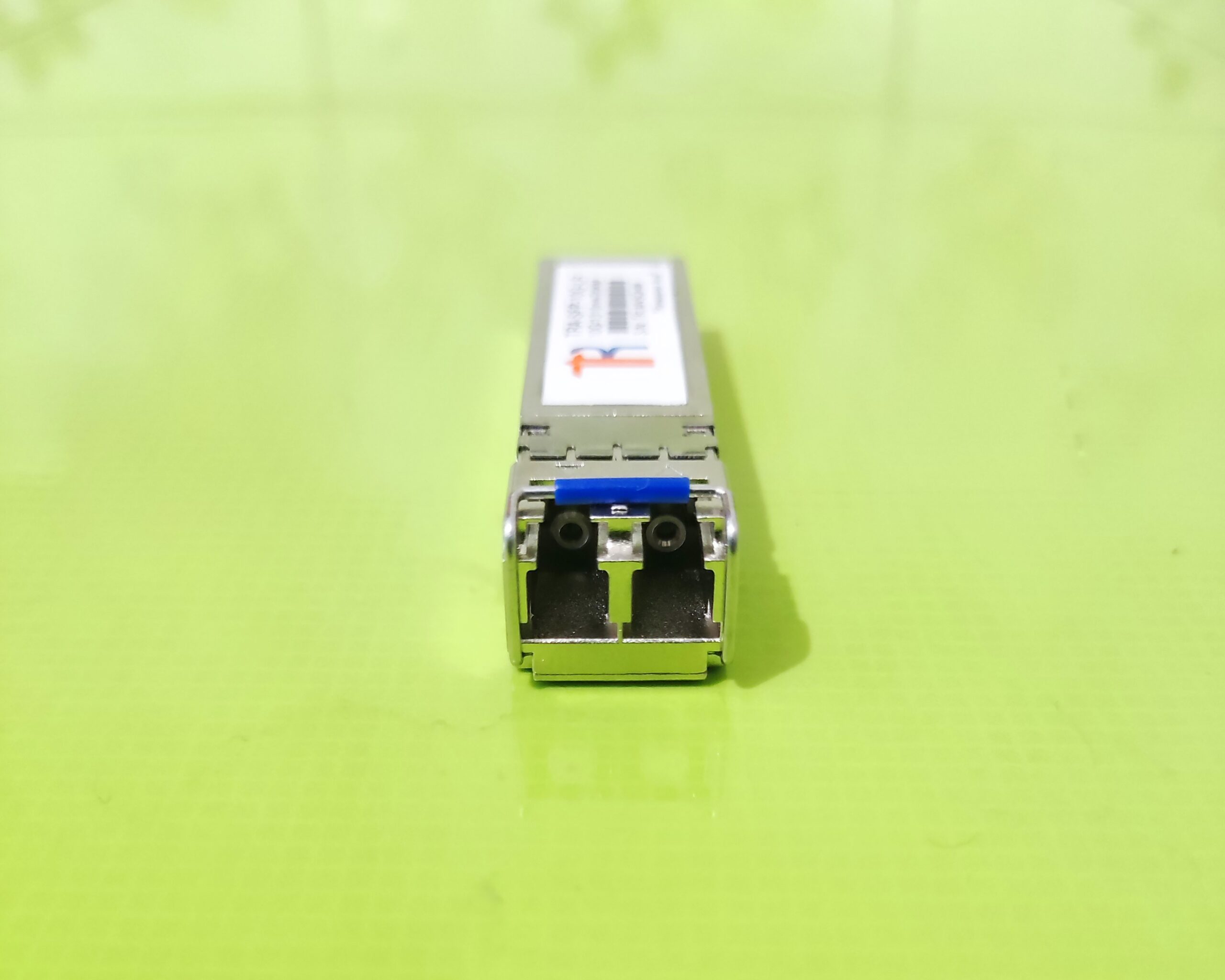

TRA-SFP-10G-LR (B)

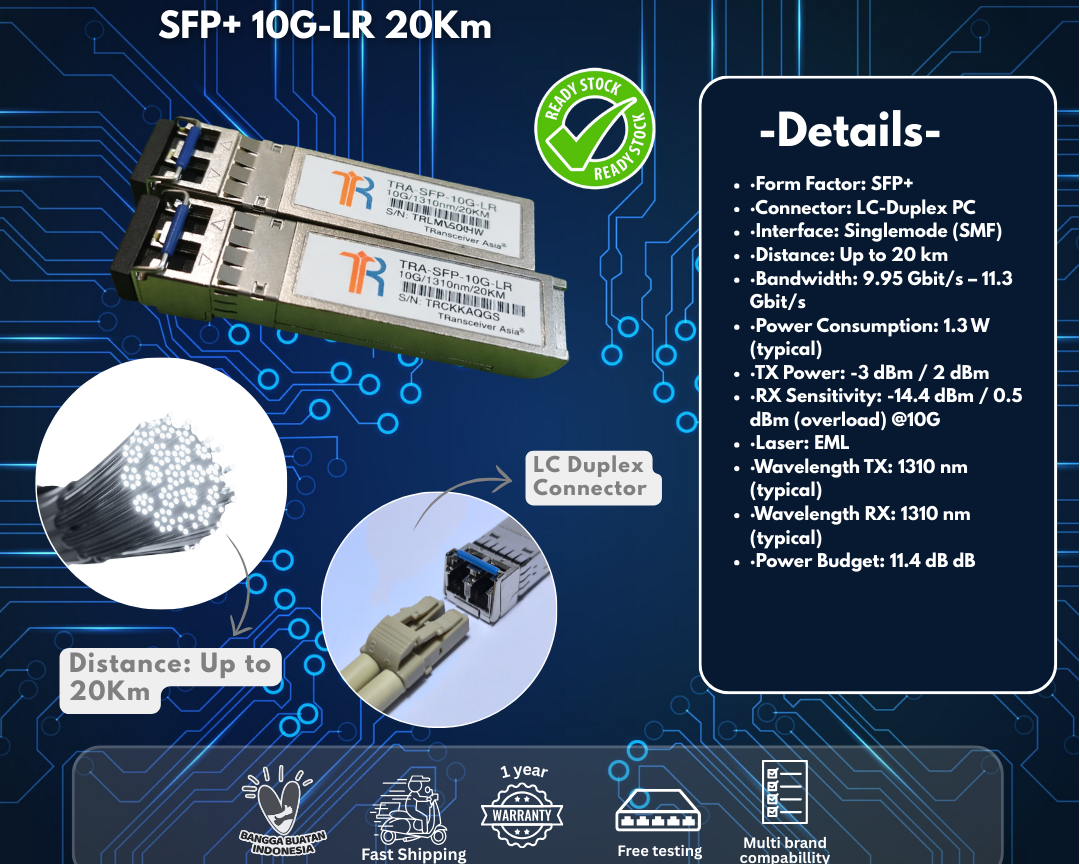

Instagram 10G-LR 20km

TRA-SFP-10G-LR

10GBASE-LR SFP+ 1310nm 20km Module
TRA-SFP-10G-LR
SFP 10G
singlemode
  • 10G SFP
  • LC - Duplex
  • 600 Mbit/s - 11.3 Gbit/s
  • 0° C - 70° C
  • Up to 20 Km
  • Compliance Code: LR
λ 1310 nm
10 Km
↓↑ 11.3 G
lc duplex singlemode
  • ORDERING GUIDE
PART NUMBER
TRA-SFP-10G-LR
TRANSCEIVER DESCRIPTION
10GBASE-LR SFP+ 1310nm 20km Module
  • DATASHEET

📄 Datasheet TRA-SFP-10G-LR

  • SPECIFICATIONS
FORM FACTOR:
SFP+
CONNECTOR / POLISH:
LC - Duplex PC
INTERFACE:
Singlemode
COMPLIANCE CODE:
LR
OPERATING TEMPERATURE:
Standard
MODULATION:
NRZ
DISTANCE:
20 Km
BANDWIDTH:
600 Mbit/s - 11.3 Gbit/s
DIGITAL DIAGNOSTIC MONITORING (DDM):
Yes, internally calibrated
POWER CONSUMPTION:
1.3 W
CDR:
None
SGMII:
No
INBUILT FEC:
No
POWERBUDGET (DB):
11.4 dB
TRANSMIT MIN/MAX PER LANE:
-3 dBm / 2 dBm
RECEIVER MIN/MAX PER LANE:
-14.4 dBm / 0.5 dBm (overload) @10
WAVELENGTH TX (TYPICAL):
1310 nm
WAVELENGTH TX (RANGE):
1270 - 1355 nm
WAVELENGTH RX (TYPICAL):
1310 nm
WAVELENGTH RX (RANGE):
1260 - 1565 nm
LASER:
DFB
RECEIVER TYPE:
PIN
MODULATION:
NRZ @10G
EXTINCTION RATIO:
3.5 dB
SUPPORTED PROTOCOLS:
10G Ethernet, 10G FC, 8G Fibre Channel, Gigabit Ethernet, LTE 0.614G CPRI, LTE 0.768G OBSAI, LTE 1.22G CPRI, LTE 1.536G OBSAI, LTE 2.458G CPRI, LTE 3.072G OBSAI, LTE 4.915G CPRI, LTE 6.144G CPRI, LTE 6.144G OBSAI, LTE 7.373G CPRI, LTE 9.830G CPRI
  • COMPATIBLE WITH
  • A10networks AXSK-SFP+ LR
  • ADTRAN 1442420G1
  • ADVA 1061701851-02
  • Alcatel-Lucent Ent. SFP-10G-LR
  • Allied Telesis AT-SP10LR20
  • Arista 3rd_Party SFP-10G-LR
  • Arista SFP-10G-LR
  • Aruba Networks (ex. HP Network) J9151A
  • Avaya (ex. Nortel) AA1403011-E6
  • Brocade / Ruckus 10G-SFPP-LR
  • Brocade 10G-SFPP-LR
  • Brocade XBR-000174
  • Calix 100-01903
  • Check Point 11822
  • Chelsio SM10G-LR
  • Ciena (ex. Nortel) 10002
  • Ciena XCVR-S10V31
  • Cisco (ex. Meraki) MA-SFP-10GB-LR
  • Cisco Systems SFP-10G-LR
  • Cyan 280-0092-00
  • D-LINK DEM-432XT-DD
  • Dell (ex. Force10) GP-10GSFP-1L
  • Dell 330-2409
  • Dell 331-5310
  • Dell 407-BBOP
  • Edge Core ET5402-LR
  • Extreme (ex. Enterasys) 10GB-LR-SFPP
  • Extreme 10302
  • F5 Networks OPT-0017
  • FibroLAN SFPP-13-10
  • Fluke Networks OPVXG-SFP-PLUS-LR
  • Fortinet FG-TRAN-SFP+LR
  • Fujitsu S26361-F3986-E4
  • HP H3C JD094B
  • IBM Storage 45W0260
  • IBM Storage 45W2283
  • Infinera (ex. Transmode) TRX100100
  • Intel E10GSFPLR
  • Juniper SFP-10GE-LR
  • Keymile 37973134
  • Keysight (ex. Ixia) SM1310-PLUS
  • KTI Networks SFP-10G-LR-A
  • LANCOM SFP-LX-LC10
  • LAWO 981/60-81
  • Lenovo (ex. Blade Network) 11836
  • LevelOne SFP-6121
  • MikroTik S+31DLC10D
  • Motorola
  • Moxa SFP-10GLRLC
  • MRV SFP-10GD-LR
  • Netgear AXM762
  • Nokia (ex. Alcatel-Lucent) 1AB429380001
  • Nokia (ex. Alcatel-Lucent) 3FE62600DA
  • Nokia (ex. Alcatel-Lucent) 3HE04823AA
  • Nokia Networks FOUA 473840A.101
  • Nokia Siemens
  • Networks 11845
  • Nvidia (ex. Mellanox)
  • MFM1T02A-LR
  • Oracle
  • Packetlight SL110
  • Packetlight SL112
  • Palo Alto Networks PAN-SFP-PLUS-LR
  • PulseSecure SFP+ LR
  • Radware 9062196
  • Solarflare SFM10G-LR20
  • Supermicro AOC-E10GSFPLR
  • TP-LINK TXM431-LR
  • Transition Networks TN-10GSFP-LR2
  • Ubiquiti Networks SFP+ LR
  • Versa Networks SFP+ LR
  • Weidmüller IE-SFP-10GE-SM-20
  • Zhone MXK-10GE-SFP+-20KM-1310
  • ZTE SFP-10GE-S10K
  • Zyxel SFP10G-LR
