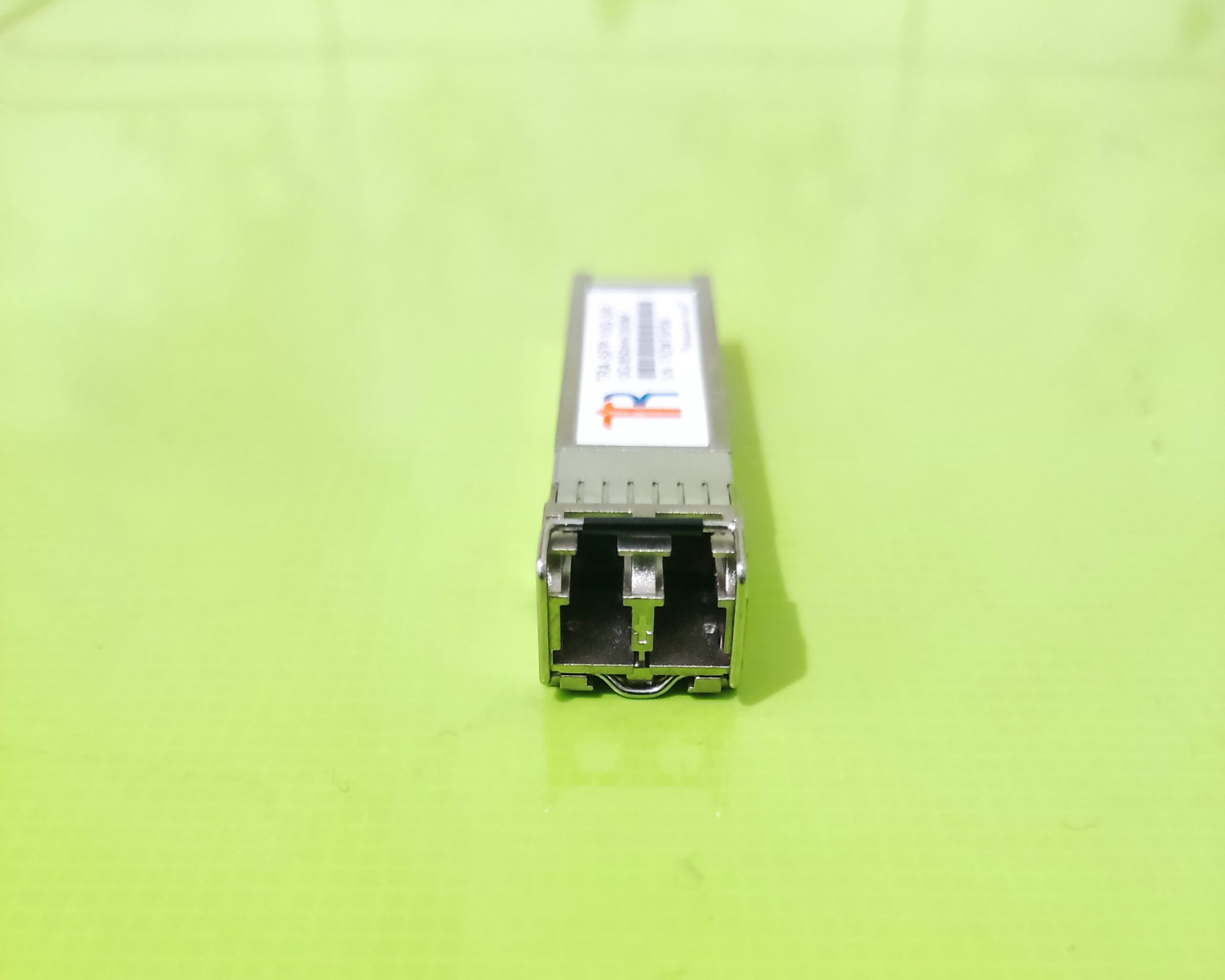

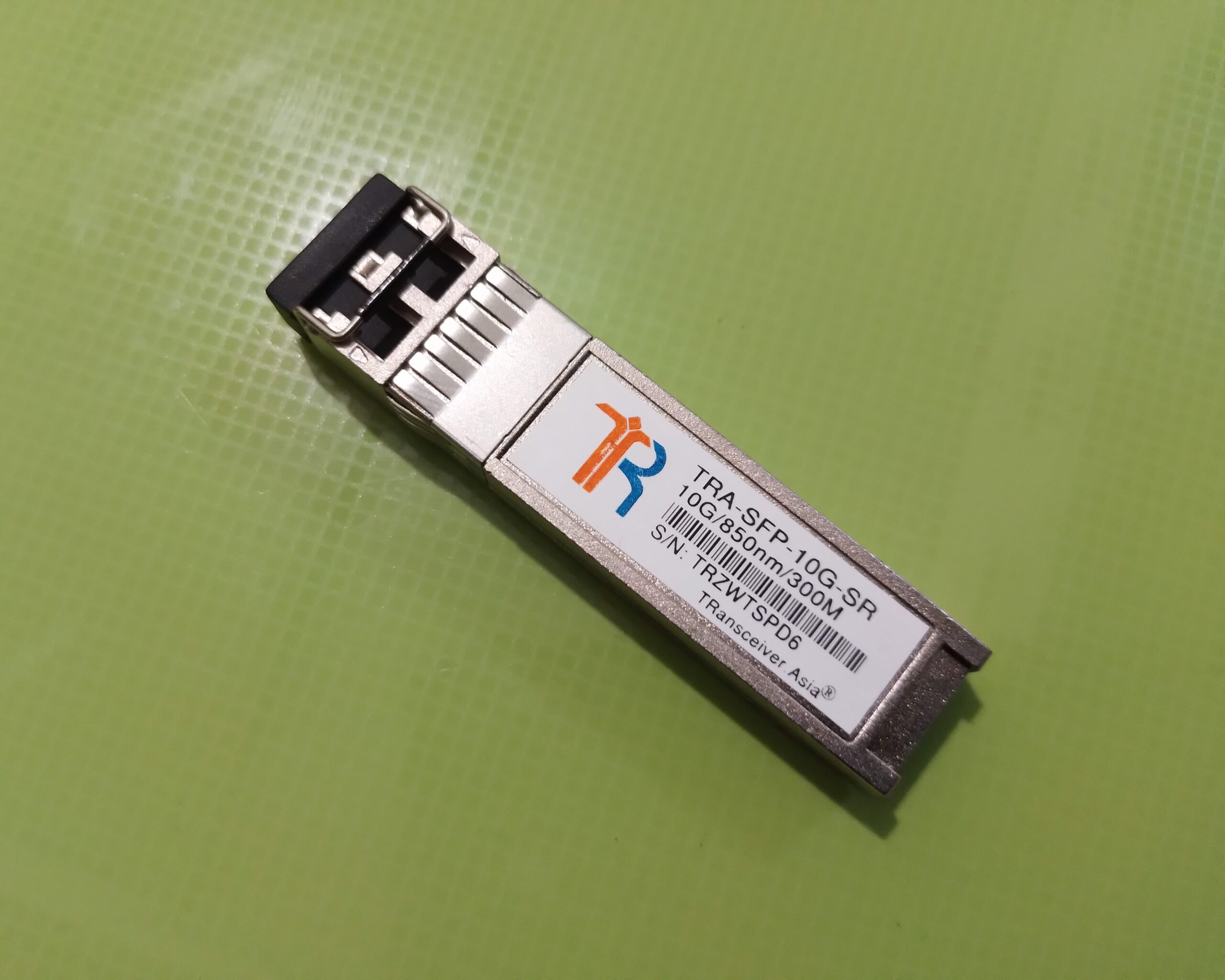

TRA-SFP-10G-SR
10GBASE-SR SFP+ 850nm 300m Module
- 10G SFP
- LC - Duplex
- 600 Mbit/s - 10.31 Gbit/s
- 0° C - 70° C
- Up to 300 m
- Compliance Code: SR
- ORDERING GUIDE
PART NUMBER
TRA-SFP-10G-SR
TRANSCEIVER DESCRIPTION
10GBASE-SR SFP+ 850nm 300m Module
- DATASHEET
- SPECIFICATIONS
FORM FACTOR:
SFP+
CONNECTOR / POLISH:
LC - Duplex PC
INTERFACE:
Multimode
COMPLIANCE CODE:
SR
OPERATING TEMPERATURE:
Standard
MODULATION:
NRZ
DISTANCE:
300 m
TEMPERATURE RANGE:
0°C - 70°C
BANDWIDTH:
600 Mbit/s - 10.31 Gbit/s
DIGITAL DIAGNOSTIC MONITORING (DDM):
Yes, internally calibrated
POWER CONSUMPTION:
1 W
CDR:
None
SGMII:
No
INBUILT FEC:
No
POWERBUDGET (DB):
3.4dB
TRANSMIT MIN/MAX PER LANE:
-6.5 dBm / -1 dBm
RECEIVER MIN/MAX PER LANE:
-9.9 dBm / -1 dBm (overload) @10G
WAVELENGTH TX (TYPICAL):
850 nm
WAVELENGTH TX (RANGE):
840 - 860 nm
WAVELENGTH RX (TYPICAL):
850 nm
WAVELENGTH RX (RANGE):
840 - 860 nm
LASER:
VCSEL
RECEIVER TYPE:
PIN
MODULATION:
NRZ @10G
EXTINCTION RATIO:
9 dB
SUPPORTED PROTOCOLS:
10G Ethernet, 10G FC, 8G Fibre Channel, Gigabit Ethernet, LTE 0.614G CPRI, LTE 1.22G CPRI, LTE 1.536G OBSAI, LTE 2.458G CPRI, LTE 3.072G OBSAI, LTE 4.915G CPRI, LTE 6.144G CPRI, LTE 6.144G OBSAI, LTE 7.373G CPRI, LTE 9.830G CPRI
- COMPATIBLE WITH
- A10networks AXSK-SFP+ SR
- Accedian Networks 7SM-500
- ADTRAN 1442401G1
- ADVA 1061701854-01
- ADVA 1061701854-02
- ADVA 1061701855-01
- ADVA 1061701855-02
- ADVA 1061701857-01
- Aerohive Networks AH-ACC-SFP-10G-SR
- Alcatel-Lucent Ent. SFP-10G-GIG-SR
- Alcatel-Lucent Ent. SFP-10G-SR
- Allied Telesis AT-SP10SR
- Allnet ALL4757
- Arbor Networks SFP+ SR
- Arista 3rd_Party SFP-10G-SR
- Arista SFP-10G-SR
- Aruba Networks JW091A
- Aruba Networks (ex. HP Network) 455883-B21
- Aruba Networks (ex. HP Network) J9150A
- ProCurve
- Aruba Networks (ex. HP Network) J9150D CX
- Aruba Networks (ex. HP Network) J9150D ProCurve
- Aruba Networks (ex. HP Network) R9D18A
- ASUS SFP+ SR
- ATTO SFP8-0000-R00
- Avaya (ex. Nortel) AA1403015-E6
- Aviat Networks 079-422677-001
- barox AC-SFP+-MM-0,082
- Barracuda Networks SFP+ SR
- Blackbox LSP421
- Broadcom SFP+ SR
- Brocade / Ruckus 10G-SFPP-SR
- Brocade / Ruckus 10G-SFPP-USR
- Brocade 10G-SFP-SR
- Brocade XBR-000163
- Brocade XBR-000180
- Brocade XBR-000218
- Calix 100-01510
- Calix 100-01515
- Cambium Networks SFP-10G-SR
- Casa Systems SFP+ SR
- Centec SFP+ SR
- Ceragon SFP-10GE-SR-CE
- Cerio SLC-10GSRM
- Check Point CPAC-TR-10SR
- Check Point CPAC-TR-10SR-C
- Chelsio SM10G-SR
- Ciena 160-9111-900
- Ciena 160-9116-900
- Ciena XCVR-S00Z85
- Cisco (ex. Meraki) MA-SFP-10GB-SR
- Cisco Systems (ex. Linksys) LACXGSR
- Cisco Systems (ex. Viptela) VIP-SFP+-10GE-SR
- Cisco Systems CSP-SFP-1WSR
- Cisco Systems DS-SFP-FC10G-SW
- Cisco Systems DS-SFP-FC8G-SW
- Cisco Systems ONS-SC+-10G-SR
- Cisco Systems SFP-10G-SR
- Cisco Systems SFP-10G-SR-S
- Cisco Systems SFP-10G-USR
- Citrix Netscaler EG3B000554
- Citrix Netscaler EW3F0000710
- Clavister APP-SFP-10G-SR
- CommScope (ex. Arris) 801147
- CommScope 7660511
- ComNet SFP-10G-SR
- CTC Union SFP-M9000-85-D
- Cumulus Networks SFP+ SR
- Cyan 280-0330-00
- D-LINK DEM-431XT
- D-LINK DEM-431XT-DD
- Datto DNW-SFP-10GB-SR
- Dell (ex. Force10) GP-10GSFP-1S
- Dell 03G84K
- Dell 0WTRD1
- Dell 330-2410
- Dell 330-6749
- Dell 331-5311
- Dell 407-10357
- Dell 407-10444
- Dell 407-10942
- Dell 407-BBBG
- Dell 407-BBEF
- Dell 407-BBGM
- Dell 407-BBOK
- Dell 407-BBOU
- Dell 407-BBPC
- Dell 407-BBRM
- Dell 407-BBRN
- Dell 407-BBVJ
- Dell 407-BBVK
- Dell 407-BBZM
- Dell 407-BCBE
- Dell 407-BCBN
- Dell 407-BCDU
- Dell A7297615
- Delock 86199
- Edge Core ET5402-SR
- EMC 019-078-042
- EMC 851-0296
- EMC NEX-5020-10G
- Emulex LPe12100-OPT
- Emulex OC10-SR-OPT-1
- eneo SFP-0850M10-10G
- Ericsson RDH901027/1
- Evertz SFP10G-TR85
- Extreme (ex. Enterasys) 10GB-SR-SFPP
- Extreme (ex. Enterasys) 10GB-USR-SFPP
- Extreme 10301
- Extreme 10G-SR-SFP300M-ET
- F5 Networks OPT-0016
- FibroLAN SFPP-85
- Fireeye SR10GPX-HW
- Fluke Networks
- OPVXG-SFP-PLUS-SR
- Forcepoint MOD-SFP-10G-SR
- Fortinet FG-TRAN-SFP+SR
- Fortinet FN-TRAN-SFP+SR
- Fortinet FS-TRAN-SFP+SR
- Fujitsu CA46850-3045
- Fujitsu S26361-F3986-E3
- Fujitsu S26361-F3986-L3
- Fujitsu S26361-F5250-E110
- Fujitsu SFP+ 8G SW
- Gigamon SFP-532
- Grandstream F-MM850-300M-10G
- H3C (ex. 3COM) 0231A0A6
- Harmonic GSF9400-02
- Hirschmann M-SFP-10-SR/LC EEC
- Hitachi 10GBASE-SR
- HP H3C JD092B
- HP H3C JL437A
- HP Storage (B-Series) AJ716A
- HP Storage (B-Series) C8R23B
- HP Storage (B-Series) C8R25B
- HP Storage (C-Series) C8R23A
- HP Storage (H-Series) 876144-001
- HP Storage (H-Series) AJ718A
- Huawei 34060607
- Huawei OMXD10N02
- Huawei OMXD3000
- Huawei OMXD30000
- Huawei OMXD30020
- Huawei OSX040N03
- Huawei SFP-10G-USR
- Huawei SFP-8.5G-LCMM
- IBM Storage 44X1964
- IBM Storage 45W0500
- IBM Storage 45W2411
- IBM Storage 46C9249
- IBM Storage 49Y4216
- IBM Storage 85Y6278
- IBM Storage 88Y6416
- IBM Storage 94Y8478
- IBM Storage 98Y2182
- IBM Storage 99Y0812
- IDK Corporation SFP-L10GSR
- Infinera (ex. Coriant) 81.86T-P010GSRM-R6
- Infinera (ex. Transmode) TRX100103
- Infortrend SFP+ SR
- Intel E10GSFPSR
- Intel Netscaler SFP+ SR
- Juniper (ex. BTI Systems) BP3AD1SS
- Juniper EX-SFP-10GE-SR
- Juniper EX-SFP-10GE-USR
- Juniper QFX-SFP-10GE-SR
- Juniper QFX-SFP-8GFC-SW
- Juniper SFP-10GE-SR
- Juniper SFP-10GE-SR/GE-SX
- Juniper SFP-10GE-USR
- Juniper SFPP-10G-SR-C
- Juniper SFPP-10GE-SR
- Juniper SRX-SFP-10GE-SR
- Kemp Technologies LM-SFP-SR
- Keymile 37973134
- Keysight (ex. Ixia) MM850-PLUS
- KTI Networks SFP-10G-SR-A
- kvm-tec KT-7013
- LANCOM SFP-SX-LC10
- Lenovo (ex. Blade Network) BN-CKM-SP-SR
- Lenovo (ex. IBM) 00Y2523
- Lenovo (ex. IBM) 31P1338
- Lenovo (ex. IBM) 44W4408
- Lenovo (ex. IBM) 45W2412
- Lenovo (ex. IBM) 49Y4218
- Lenovo (ex. IBM) 77P9336
- Lenovo (ex. IBM) 99Y0226
- Lenovo 00WC087
- Lenovo 00WC088
- Lenovo 00WC091
- Lenovo 44W4404
- Lenovo 46C3447
- LevelOne SFP-6101
- Luminex LU9001116
- Luminex LU9001151
- Matrox SFP+ SR
- McAfee AXG31444-MF
- McAfee IAC-SFTSR-FOTA
- MikroTik S+85DLC03D
- Motorola NX-7500-SFPPL-SX
- Moxa SFP-10GSRLC
- MRV SFP-10GD-SX
- Myricom 10G-SFP-SR
- napatech 802-0038-01-01
- NEC B02035-W0N44
- Net Insight NPA0077-SRD1
- NetApp X-48895-00-0E-R6
- NetApp X6563-R6
- NetApp X6569-R6
- NetApp X6588-R6
- NetApp X6589-R6
- NetApp X6599A-R6
- NetApp X6600A-R6
- Netgate SFP-10G-SR
- Netgear AXM761
- NetOptics SFP+KT-50SR
- Netscout 321-1486
- Netxen SFP+ 10G SR
- Nevion SFP-TR10-850-SR
- Nimblestorage SFP+ SR
- Niveo NVM10RSG
- Nokia (ex. Alcatel-Lucent) 3FE63264AA
- Nokia (ex. Alcatel-Lucent) 3FE65608AA
- Nokia (ex. Alcatel-Lucent) 3HE04824AA
- Nokia Networks 1AB390930004
- Nokia Networks AOME 475336A.101
- Nokia Networks FOSH 472579A.101
- Nokia Networks FOUC 473842A.101
- Nokia Networks P206937
- Nokia Siemens
- Networks V50017-U620-K500
- Novastar SFP-10G-SR
- NoviFlow 400000503
- Nutanix X-XCVR-SR-SFP+
- Nvidia (ex. Mellanox) MFM1T02A-SR
- Omnitron 7406-0
- OPNsense DECSFPP10GSR850
- Oracle X2129A-N
- Packetlight SL111
- Packetlight SL113
- Palo Alto Networks
- PAN-SFP-PLUS-SR
- PBN SFP+-GX850M-LCPC
- Penguin Computing SFP+ SR
- Peplink SFP+ SR
- Perle PSFP-10GD-M2LC008
- Planet MTB-SR
- ProfiTap PT-10G-SR-85
- PulseSecure SFP+ SR
- Pure Storage SFP+ SR
- QLogic SFP10-SR-SP
- QLogic SFP8-SW-1PK
- QNAP TRX-10GITSFPP-SR
- Quanta SFP+ SR
- RAD SFP-P-4DH
- Radware 9062206
- Raisecom USFP+-192-M-L
- Ribbon (ex. ECI) OTP10_SR
- Rubrik RBK-SFP-TSR-01
- SAF Tehnika I0AMOM05
- Securepoint E10GSFPSR
- Siemens 6GK5993-1AT00-8AA0
- Solarflare SFM10G-SR
- SonicWALL 01-SSC-9785
- Sonnet Technologies G10E-SFP-SR
- Sony OTM-10GSR1
- Sophos ASG0000SR
- Sophos ITFZTCHXF
- Spirent ACC-6050A
- Spirent ACC-6081A
- StarTech SFP10GSRST
- Stormshield NA-TRANS-DUALSFP-SR
- Sun 2129A
- Supermicro E10GSFPSR
- Symantec 21265784
Synology SFP+ SR - Telco Systems BTI-10GSR-DD-SFP+
- TP-LINK TL-SM5110-SR
- TP-LINK TXM431-SR
Transition Networks - TN-10GSFP-SR
- TRENDnet TEG-10GBSR
- Ubiquiti Networks UACC-OM-MM-10G-D
- Ubiquiti Networks UF-MM-10G
- voleatech SFP+ SR
- VSS monitoring VX_00010
- WatchGuard WG8583
- Waystream (ex. Packetfront) SFP-10GE-SR
- Weidmüller IE-SFP-10GE-MM-03
- Wildpackets SFP+ SR
- Xilinx SFP+ SR
- Yamaha SFP-SWRT-SR
- Zhone MXK-10GE-SFP+-SR
- ZTE SFP-10GE-M
- Zyxel SFP10G-SR
