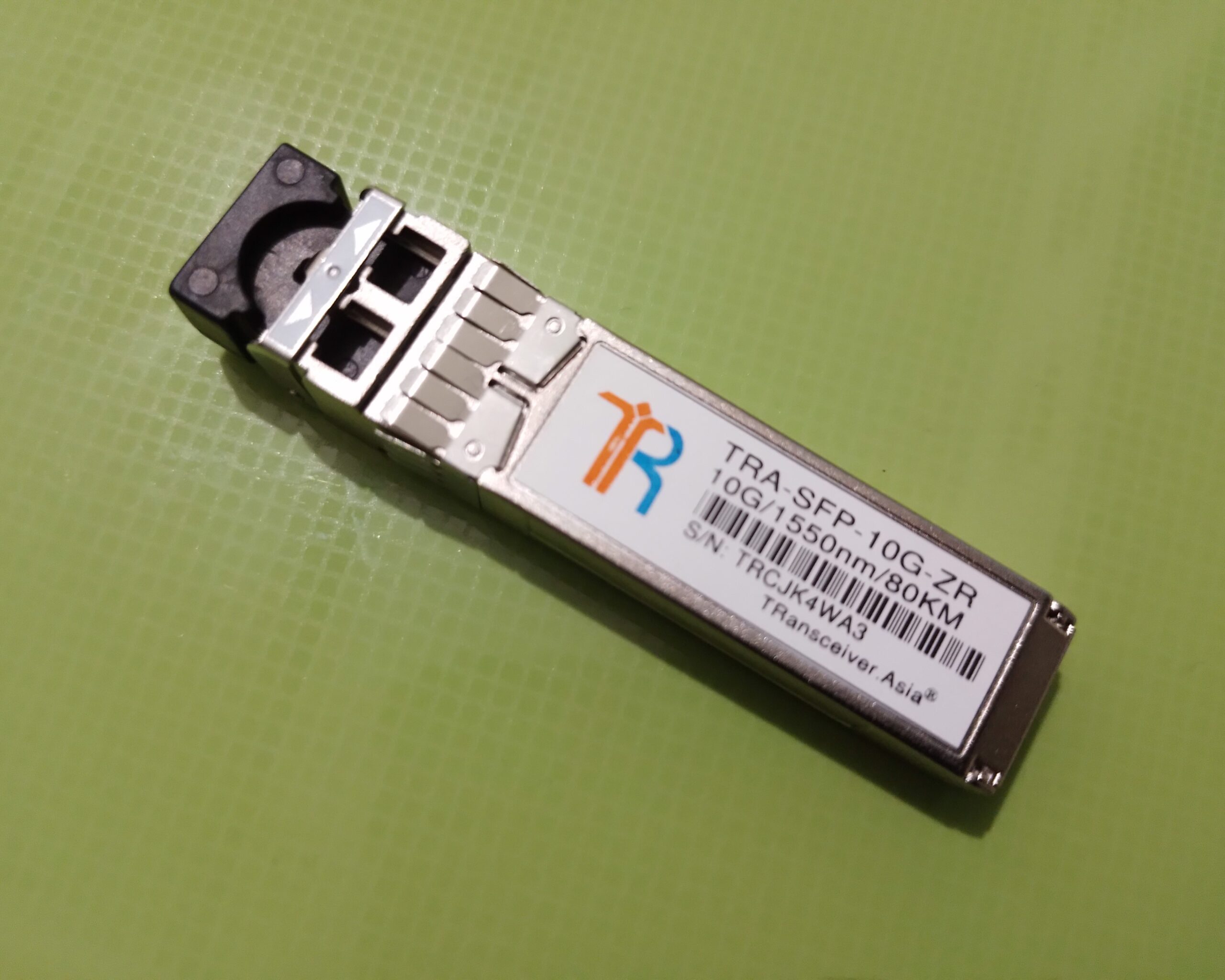

TRA-10G-ZR-80KM (A)

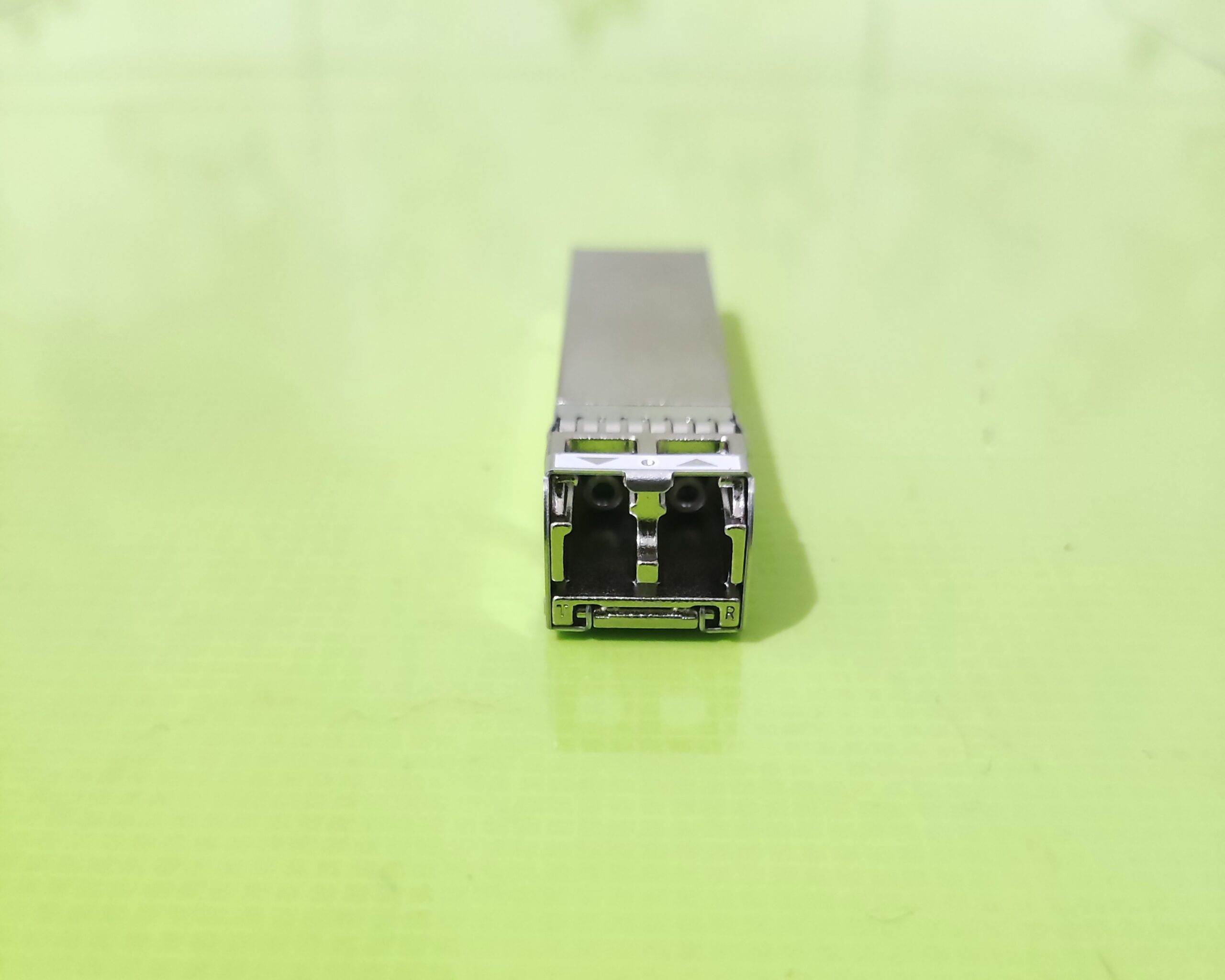

TRA-10G-ZR-80KM (B)

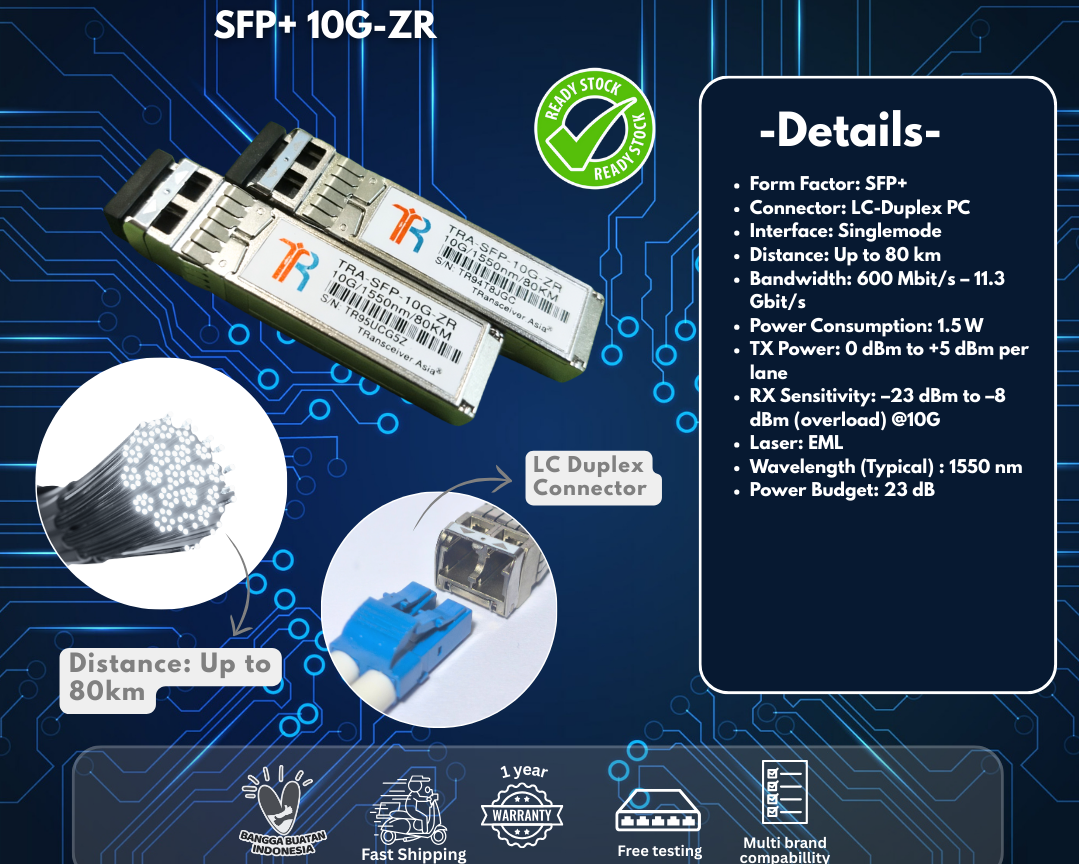

Instagram 10G-ZR

TRA-SFP-10G-ZR

10GBASE-ZR SFP+ 1550nm 80km Module
TRA-SFP-10G-ZR
SFP 10G
singlemode
  • 10G SFP
  • LC - Duplex
  • 600 Mbit/s - 11.3 Gbit/s
  • 0° C - 70° C
  • Up to 80 Km
  • Compliance Code: ZR
λ 1550 nm
80 Km
↓↑ 11.3 G
LC Duplex singlemode
  • ORDERING GUIDE
PART NUMBER
TRA-SFP-10G-ZR
TRANSCEIVER DESCRIPTION
10GBASE-ZR SFP+ 1550nm 80km Module
  • DATASHEET

📄 Datasheet TRA-SFP-10G-ZR

  • SPECIFICATIONS
FORM FACTOR:
SFP+
CONNECTOR / POLISH:
LC - Duplex PC
INTERFACE:
Singlemode
COMPLIANCE CODE:
ZR
OPERATING TEMPERATURE:
Standard
MODULATION:
NRZ
DISTANCE:
80 Km
TEMPERATURE RANGE:
0°C - 70°C
BANDWIDTH:
600 Mbit/s - 11.3 Gbit/s
DIGITAL DIAGNOSTIC MONITORING (DDM):
Yes, internally calibrated
POWER CONSUMPTION:
1.5 W
CDR:
None
SGMII:
No
INBUILT FEC:
No
POWERBUDGET (DB):
23 dB
TRANSMIT MIN/MAX PER LANE:
0 dBm / 5 dBm
RECEIVER MIN/MAX PER LANE:
-23 dBm / -8 dBm (overload) @10G
WAVELENGTH TX (TYPICAL):
1550 nm
WAVELENGTH TX (RANGE):
1528 - 1565 nm
WAVELENGTH RX (TYPICAL):
1550 nm
WAVELENGTH RX (RANGE):
1260 - 1600 nm
LASER:
EML
RECEIVER TYPE:
APD
MODULATION:
NRZ @10G
EXTINCTION RATIO:
3.5 dB
SUPPORTED PROTOCOLS:
10G Ethernet, 10G FC, 8G Fibre Channel, LTE 0.614G CPRI, LTE 0.768G OBSAI, LTE 1.22G CPRI, LTE 1.536G OBSAI, LTE 2.458G CPRI, LTE 3.072G OBSAI, LTE 4.915G CPRI, LTE 6.144G CPRI, LTE 6.144G OBSAI, LTE 7.373G CPRI, LTE 9.830G CPRI
  • COMPATIBLE WITH
  • A10networks 12394
  • Accedian Networks 7SP-402
  • ADTRAN 1442440G1
  • ADVA 12395
  • Alcatel-Lucent Enterprise SFP-10G-ZR
  • Allied Telesis AT-SP10ZR80/I
  • Arista 3rd Party SFP-10G-ZR
  • Arista SFP-10G-ZR
  • Aruba Networks (ex HP Network) J9153A
  • Avaya (ex Nortel) AA1403016-E6
  • Brocade / Ruckus 10G-SFPP-ZR
  • Brocade 10G-SFPP-ER
  • Brocade 10G-SFPP-ZR
  • Brocade XBR-000174
  • Calix 100-01971
  • Centec SFP+ ZR
  • Check Point 12398
  • Chelsio 12399
  • Ciena 160-9205-900
  • Ciena XCVR-S80V55
  • Cisco (ex Meraki) MA-SFP-10GB-ZR
  • Cisco Systems ONS-SC+-10G-ZR
  • Cisco Systems SFP-10G-ZR
  • Cisco Systems SFP-10G-ZR-S
  • CommScope (ex Arris) 781347
  • ComNet SFP-10G-ZR
  • Cyan 280-0277-00
  • D-LINK DEM-434XT
  • Dell (ex Force10) GP-10GSFP-1Z
  • Dell 407-BBOV
  • Dell 407-BBRK
  • Edge Core ET5402-ZR-I
  • Ericsson RDH10262/3
  • Evertz SFP10G-TR15H
  • Extreme (ex Enterasys) 10GB-ZR-SFPP
  • Extreme 10309
  • Extreme 10310
  • F5 Networks 12404
  • FibroLAN SFPP-15-80
  • Fluke Networks 12406
  • Fortinet FG-TRAN-SFP+LR
  • Fujitsu FIM35051
  • Hirschmann M-SFP-10-ZR/LC
  • HP H3C JG234A
  • Huawei OSX080N01
  • Huawei OSX080N04
  • Infinera (ex Transmode) TRX100115
  • Infinera TOM-10G-SFPP-IR2
  • Intel E10GSFPLR
  • Juniper EX-SFP-10GE-ZR
  • Juniper SFP-10GE-ER
  • Juniper SFPP-10GE-ZR
  • Keymile 37973304
  • Keysight (ex Ixia) SM1310-PLUS
  • KTI Networks SFP-10G-ER-A
  • LANCOM 12414
  • Lenovo (ex Blade Network) BN-CKM-SP-ER
  • LevelOne 12415
  • MikroTik S+31DLC10D
  • Motorola
  • Moxa SFP-10GZRLC
  • MRV SFP-10GD-ZR
  • Net Insight NPA0077-ZR01
  • Netgear AXM762
  • NetOptics SFP+KT-ER
  • Nokia (ex Alcatel-Lucent) 3AL82019AA
  • Nokia (ex Alcatel-Lucent) 3FE65832AA
  • Nokia (ex Alcatel-Lucent) 3HE05894AA
  • Nokia Siemens
  • Networks V50017-U624-K500
  • Nortel / Juniper / NSN SFP+-ZR
  • Nvidia (ex Mellanox)
  • MC3305611-ZR
  • Oracle
  • Packetlight SL112
  • Palo Alto Networks PAN-SFP-ZX
  • PBN SFP+-GX55ZR-LCPC
  • Penguin Computing SFP+ ER
  • RAD SFP-P-2DH
  • Radware 12422
  • Ribbon (ex ECI) OTP10_ZR
  • Solarflare
  • Supermicro 12423
  • Telco Systems BTI-10GEZR-DD-SFP+
  • Telco Systems BTI-10GZR-DD-SFP+
  • TP-LINK
  • Transition Networks TN-10GSFP-LR7
  • Ubiquiti Networks UF-SM-10G
  • ZTE SFP-10GE-S80K
  • Zyxel
