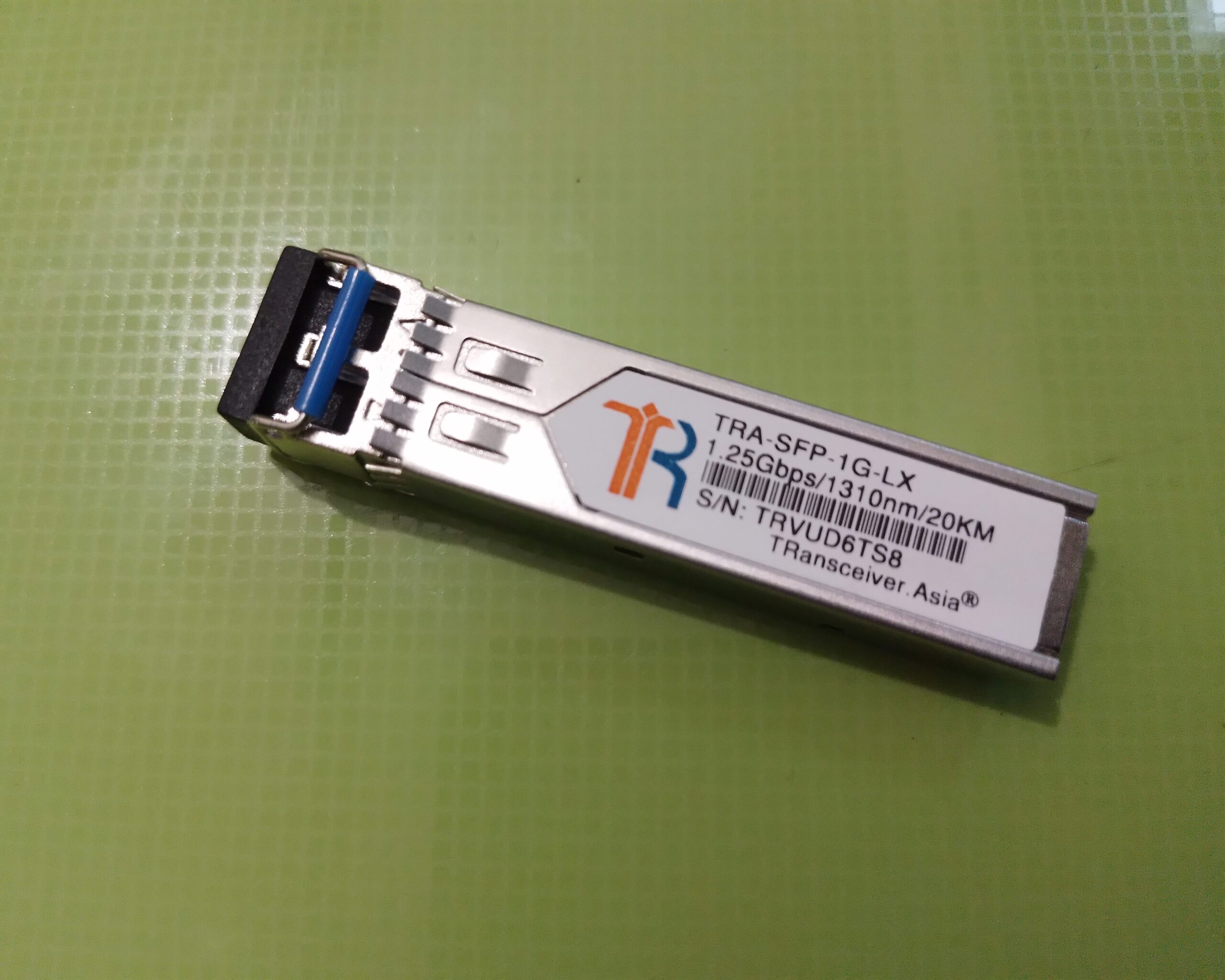

TRA-1G-LX 20KM (A)

TRA-1G-LX 20KM (B)

Instagram 1G-LX 20km

TRA-SFP-1G-LX

1000BASE-LX/LH SFP 1310nm 20km Module,

PART NUMBER

TRA-SFP-1G-LX

TRANSCEIVER DESCRIPTION

1000BASE-LX/LH SFP 1310nm 20km Module,

📄 Datasheet TRA-SFP-1G-LX

FORM FACTOR:

SFP

CONNECTOR / POLISH:

LC-Duplex PC

INTERFACE:

Singlemode

COMPLIANCE CODE:

LX

OPERATING TEMPERATURE:

Standard

MODULATION:

NRZ

DISTANCE:

20 Km

TEMPERATURE RANGE:

0°C - 70°C

BANDWIDTH:

1.05 Gbit/s - 1.25 Gbit/s

DIGITAL DIAGNOSTIC MONITORING (DDM):

Yes, internally calibrated

POWER CONSUMPTION:

1 W

CDR:

None

SGMII:

No

INBUILT FEC:

No

POWERBUDGET (DB):

14 dB

TRANSMIT MIN/MAX PER LANE:

-8 dBm / -3 dBm

RECEIVER MIN/MAX PER LANE:

-22 dBm / -3 dBm (overload) @1G

WAVELENGTH TX (TYPICAL):

1310 nm

WAVELENGTH RX (TYPICAL):

1310 nm

LASER:

FP

RECEIVER TYPE:

PIN

MODULATION:

NRZ @1G

EXTINCTION RATIO:

9 dB

SUPPORTED PROTOCOLS:

1G Fibre Channel, Gigabit Ethernet
