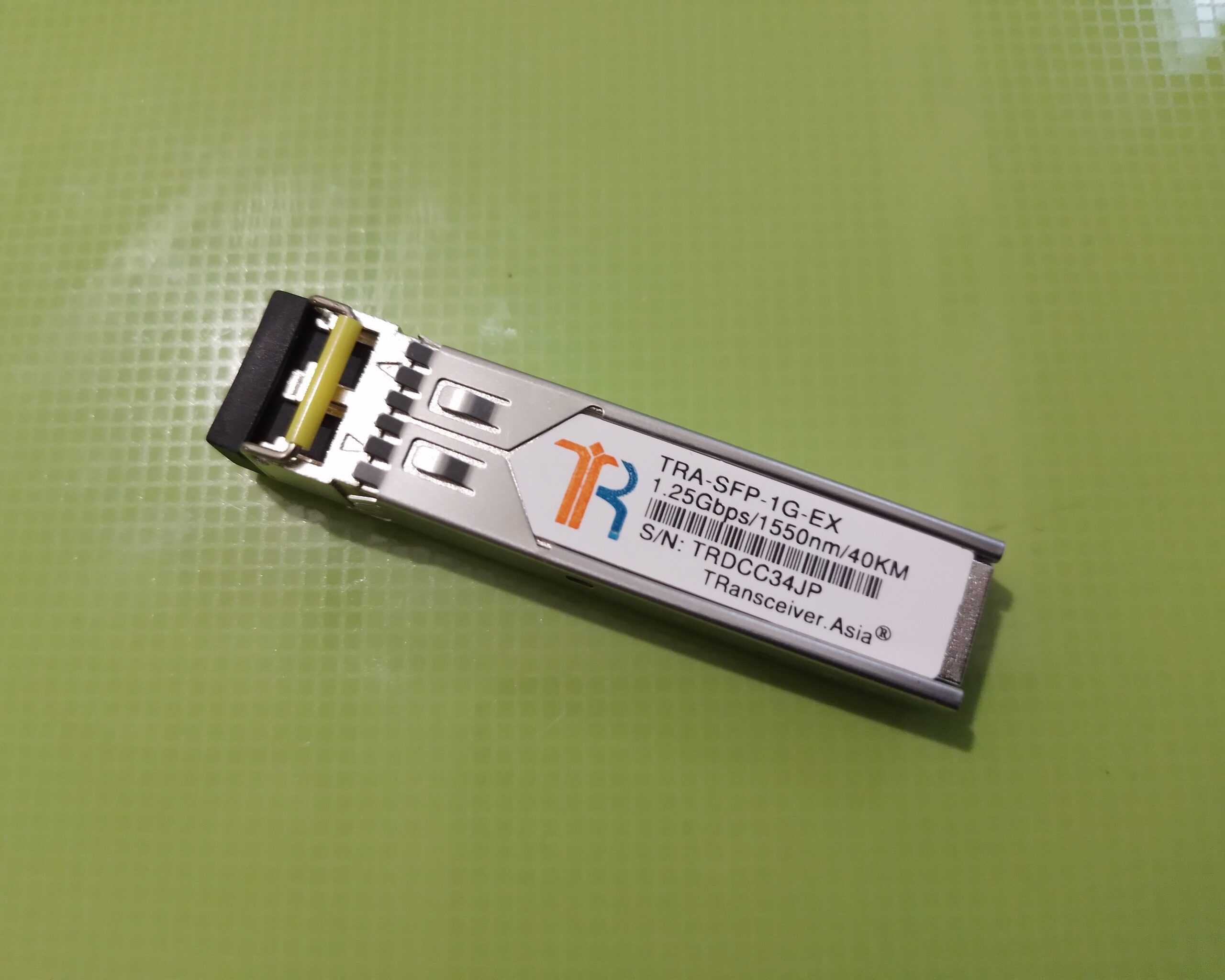

TRA-SFP-1G-EX 40KM 1550 (A)

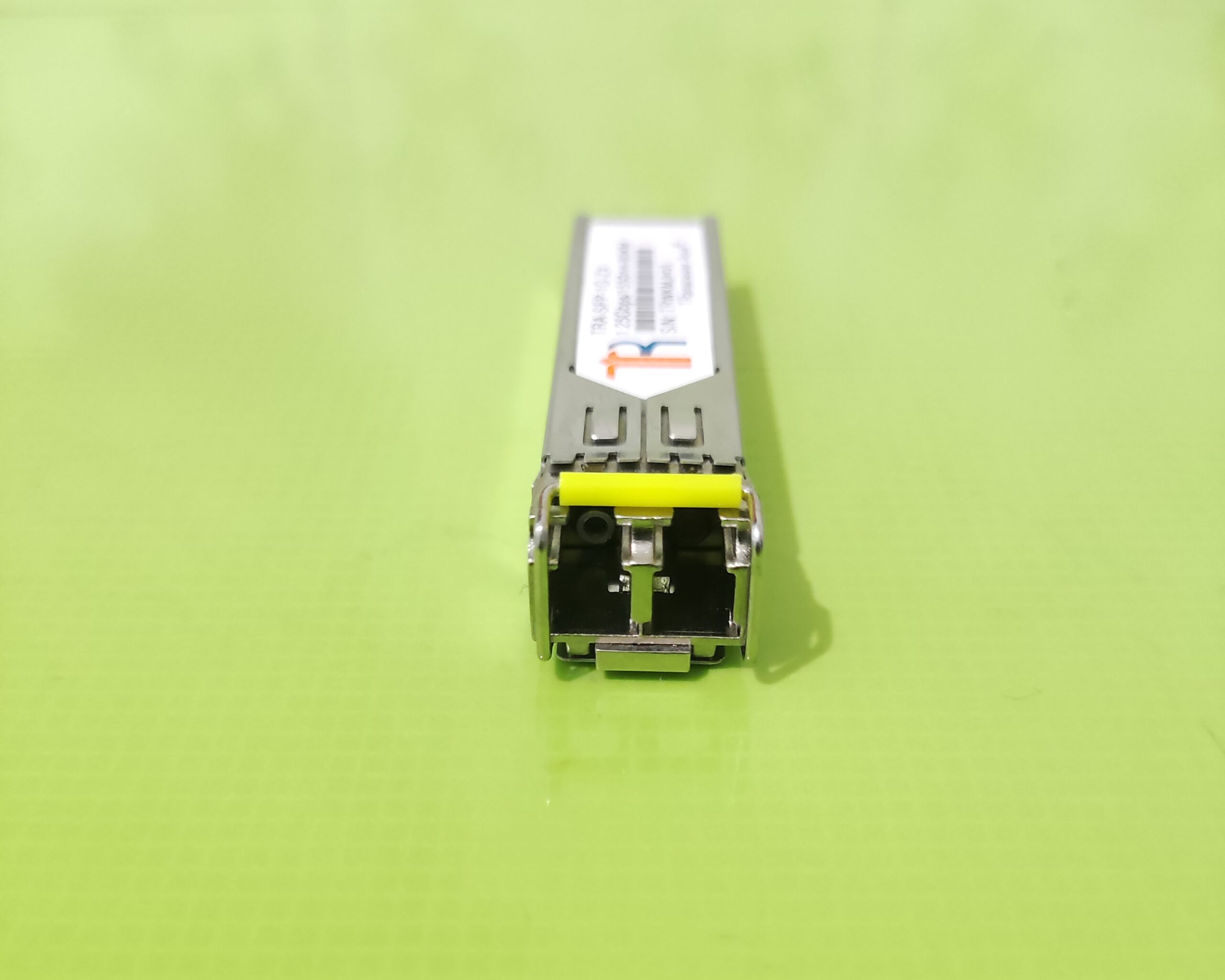

TRA-SFP-1G-EX 40KM 1550 (B)

Instagram 1G-EX

TRA-SFP-1G-EX

1000BASE-EX SFP 1550nm 40km Module,

PART NUMBER

TRA-SFP-1G-EX

TRANSCEIVER DESCRIPTION

1000BASE-EX SFP 1550nm 40km Module,

📄 Datasheet TRA-SFP-1G-EX

FORM FACTOR:

SFP

CONNECTOR / POLISH:

LC -Duplex PC

INTERFACE:

Singlemode

COMPLIANCE CODE:

EX

OPERATING TEMPERATURE:

Standard

MODULATION:

NRZ

DISTANCE:

40 Km

TEMPERATURE RANGE:

0°C - 70°C

BANDWIDTH:

1.25 Gbit/s

DIGITAL DIAGNOSTIC MONITORING (DDM):

Yes, internally calibrated

POWER CONSUMPTION:

1 W

CDR:

None

SGMII:

No

INBUILT FEC:

No

POWERBUDGET (DB):

19 dB

TRANSMIT MIN/MAX PER LANE:

-5 dBm / 0 dBm

RECEIVER MIN/MAX PER LANE:

-24 dBm / -3 dBm (overload) @1G

WAVELENGTH TX (TYPICAL):

1550 nm

WAVELENGTH TX (RANGE):

1500 - 1580 nm

WAVELENGTH RX (TYPICAL):

1550 nm

WAVELENGTH RX (RANGE):

1260 - 1600 nm

LASER:

DFB

RECEIVER TYPE:

PIN

MODULATION:

NRZ @1G

EXTINCTION RATIO:

9 dB

SUPPORTED PROTOCOLS:

1G Fibre Channel, Gigabit Ethernet
