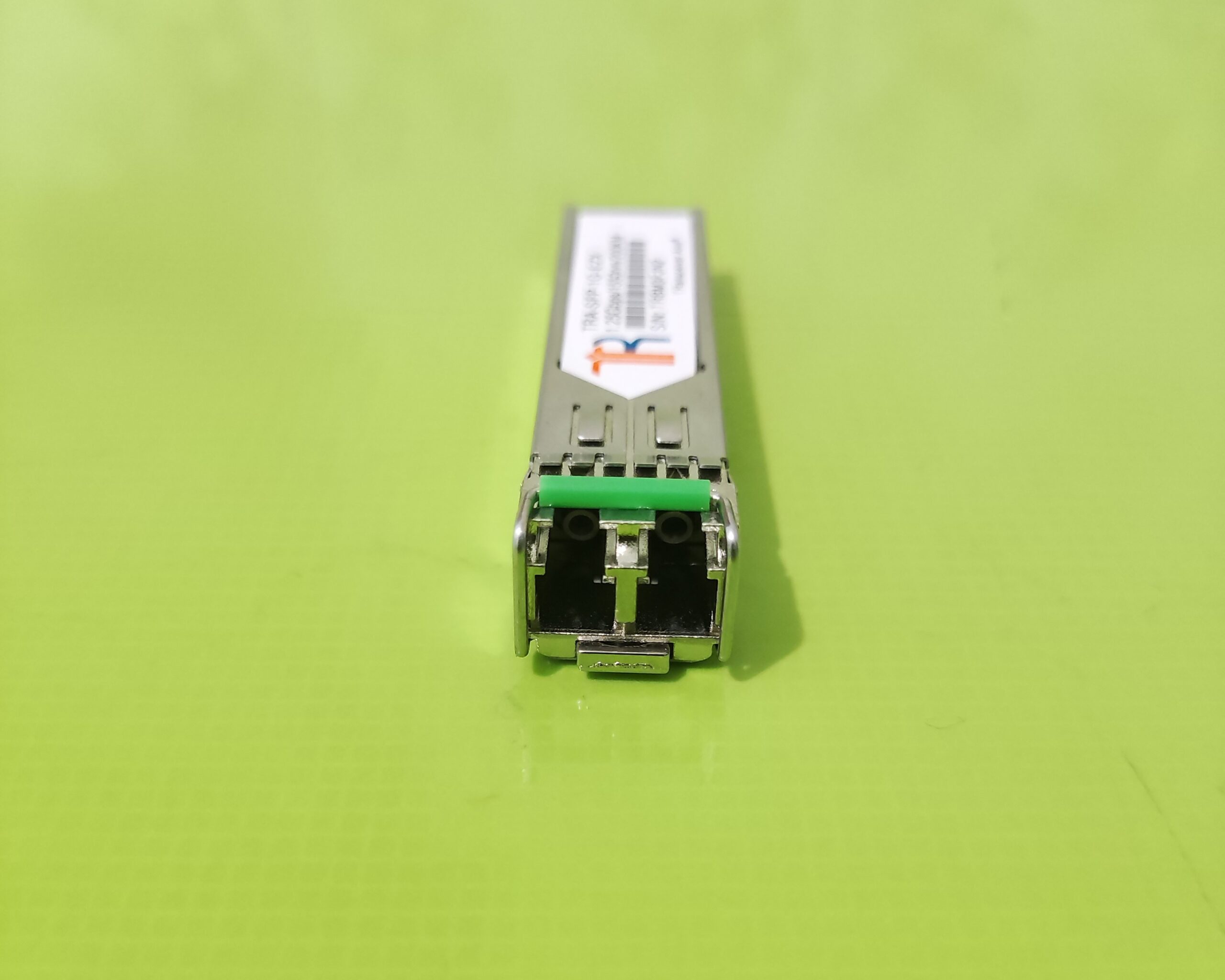

TRA-1G-EZX 160KM 1550 (B)

Instagram 1G-EZX 160km

TRA-SFP-1G-EZX+

1000BASE-EZX SFP 1550nm 160km Module

PART NUMBER

TRA-SFP-1GE-RJ

TRANSCEIVER DESCRIPTION

1000BASE-EZX SFP 1550nm 160km Module

📄 Datasheet TRA-SFP-1G-EZX+

FORM FACTOR:

SFP

CONNECTOR / POLISH:

LC - Duplex PC

INTERFACE:

Singlemode

COMPLIANCE CODE:

EZX+

OPERATING TEMPERATURE:

Standard

MODULATION:

NRZ

DISTANCE:

160 Km

TEMPERATURE RANGE:

0°C - 70°C

BANDWIDTH:

1 Gbit/s - 1.25 Gbit/s

DIGITAL DIAGNOSTIC MONITORING (DDM):

Yes, internally calibrated

POWER CONSUMPTION:

1 W

CDR:

None

SGMII:

No

INBUILT FEC:

No

POWERBUDGET (DB):

40 dB

TRANSMIT MIN/MAX PER LANE:

3 dBm / 7 dBm

RECEIVER MIN/MAX PER LANE:

-37 dBm / -10 dBm (overload) @1G

WAVELENGTH TX (TYPICAL):

1550 nm

WAVELENGTH TX (RANGE):

1500 - 1580 nm

WAVELENGTH RX (TYPICAL):

1550 nm

WAVELENGTH RX (RANGE):

1260 - 1600 nm

LASER :

DFB

RECEIVER TYPE:

APD

MODULATION:

NRZ @1G

EXTINCTION RATIO:

9 dB

SUPPORTED PROTOCOLS:

1G Fibre Channel, Gigabit Ethernet
