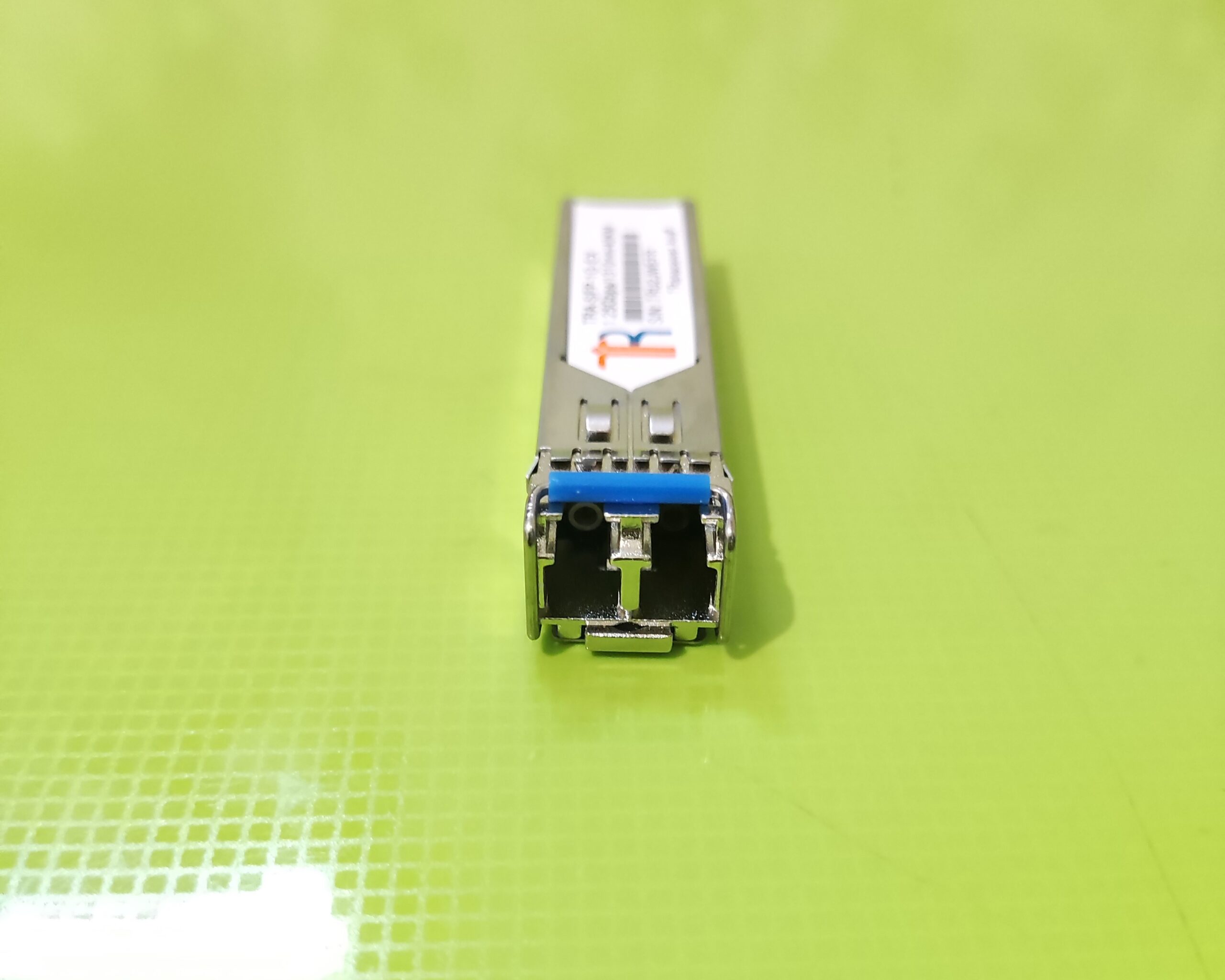

TRA-SFP-1G-LX

1000BASE-LX/LH SFP 1310nm 10km Module

PART NUMBER

TRA-SFP-1G-LX

TRANSCEIVER DESCRIPTION

1000BASE-LX/LH SFP 1310nm 10km Module

📄 Datasheet TRA-SFP-1G-LX

FORM FACTOR:

SFP

CONNECTOR / POLISH:

LC - Duplex PC

INTERFACE:

Singlemode

COMPLIANCE CODE:

OPERATING TEMPERATURE:

Standard

MODULATION:

NRZ

DISTANCE:

10 Km

TEMPERATURE RANGE:

0°C - 70°C

BANDWIDTH:

1.05 Gbit/s - 1.25 Gbit/s

DIGITAL DIAGNOSTIC MONITORING (DDM):

Yes, internally calibrated

POWER CONSUMPTION:

1 W

CDR:

None

SGMII:

INBUILT FEC:

POWERBUDGET (DB):

9 dB

TRANSMIT MIN/MAX PER LANE:

-9 dBm / -3 dBm

RECEIVER MIN/MAX PER LANE:

-18 dBm / -3 dBm (overload) @1G

WAVELENGTH TX (TYPICAL):

1310 nm

WAVELENGTH TX (RANGE):

1260 - 1360 nm

WAVELENGTH RX (TYPICAL):

1310nm

WAVELENGTH RX (RANGE):

1260 - 1600 nm

LASER :

RECEIVER TYPE:

MODULATION:

NRZ @1G

EXTINCTION RATIO:

9 dB

SUPPORTED PROTOCOLS:

1G Fibre Channel, Gigabit Ethernet

A10networks AXSK-CSFP-LR
ABB 3BSE080219R1
Accedian Networks 7SN-000
Actelis 506R00002
ADTRAN 1184561PG1
ADVA 0061001011
ADVA 0061003008
ADVA 0061705824
ADVA 1061705850-02
Advantech SFP-GLX/LC-10E
Aerohive Networks AH-ACC-SFP-1G-LX
Alcatel-Lucent Ent. SFP-GIG-LX
Allied Telesis AT-SPLX10
Allnet ALL4751
Arista 3rd_Party SFP-1G-LX
Arista SFP-1G-LX
Aruba Networks JW087A
Aruba Networks (ex. HP Network) J4859C
Aruba Networks (ex. HP Network) J4859D
AudioCodes SFP LX
Avaya (ex. Nortel) AA1419049-E6
Aviat Networks 079-422656-001
Axis T8611
Barnfind BTSFP-LX-SM-0220
barox AC-SFP-LX-E-10
Barracuda Networks SFP LX
Bintec SFP-LC-TX/LX/LH
Blackbox LFP413
Broadcom SFP LX
Brocade / Ruckus E1MG-LX-OM
Brocade E1MG-LX-OM
Calix 100-01662
Cambium Networks SFP-1G-LX
Centec SFP LX
Ceragon ER-1002-0
Cerio SLC-GLXS10
Check Point CPAC-TR-1LX
Chelsio SM1G-LX
Ciena (ex. Nortel) NTTP01CF
Ciena (ex. Nortel) NTTP06CFE6
Ciena XCVR-010M31
Cisco (ex. Meraki) MA-SFP-1GB-LX10
Cisco Systems (ex. Linksys) MGBLX1
Cisco Systems (ex. Viptela) VIP-SFP-1GE-LX
Cisco Systems GLC-LH-SM
Cisco Systems GLC-LH-SMD
Cisco Systems SFP-GE-L
Citrix Netscaler EW3D0000712
Clavister CLA-APP-SFP-1G-LX
CommScope (ex. Arris) 728965
ComNet SFP-6
Coriant (ex. Tellabs) 0410-0448
Coriant (ex. Tellabs) TR-0012
CTC Union ISFP-S7020-31-D
Cumulus Networks SFP LX
Cyan 280-0030-00
D-LINK DEM-310GT
Dahua GSFP-1310-20-SMF
Datto DNW-SFP-1GB-LX
Dell (ex. Force10) GP-SFP2-1Y
Dell 320-2879
Dell 320-2880
Dell 331-5309
Dell 407-10588
Dell 407-BBOO
Delock 86189
Digitus DN-81001
DrayTek SFP.DLC.212.10
Edge Core ET4202-LX
eks Engel SFP 1G LX
Ericsson RDH10247/2
Ericsson RDH90120/D0210
Ericsson RDH90199/1
Extreme (ex. Enterasys) MGBIC-LC09
Extreme 10052
Extreme 10060
F5 Networks OPT-0011
FibroLAN SF1G-LX1
Fireeye LX1GPX-HW
Fluke Networks SFP-1000LX
Forcepoint MOD-SFP-GE-LX10
Fortinet FG-TRAN-LX
Fortinet FN-TRAN-LX
Garland Technology SFPLX
Genband SFP LX
Gigamon SFP-503A1G1310
Grandstream F-SM1310-20KM-1.25G
Guntermann & Drunck SFP LX
H3C (ex. 3COM) 3CSFP92
Hillstone TRAN-LX
Hirschmann M-SFP-LX/LC
HP H3C JD119B
HP H3C JD494A
Huawei 34060473
Huawei eSFP-1310nm-1000Base-LX
Huawei eSFP-GE-LX-SM1310 (02315200)
Huawei OSG010N05
Infinera (ex. Transmode) TRX100075
Intel SFP LX
Juniper (ex. BTI Systems) BP3AM1MI
Juniper EX-SFP-1GE-LX
Juniper NS-SFP-1GE-LX
Juniper NS-SYS-GBIC-MLX
Juniper QFX-SFP-1GE-LX
Juniper SFP-1GE-LX
Juniper SRX-SFP-1GE-LX
Keymile 37973010
Keysight (ex. Ixia) SM1310
Korenix SFPGLX10D
KTI Networks SFP-GLS-10-A
kvm-tec KT-7010
LANCOM SFP-LX-LC1
LAWO 981/60-20
Lenovo (ex. Blade Network) BN-CKM-S-LX
Lenovo (ex. IBM) 90Y9424
LevelOne SFP-3211
Longshine LCS-
MGBIC-LX-10
Marconi SU57AE
McAfee ITV-2MLG-NA-100A
Microsens
MS100221DXA
MikroTik S-31DLC20D
Motorola 525893-001-00
Motorola NX-7500-SFP-LX
Moxa SFP-1GLXLC
MRV SFP-GD-LX-R
napatech 802-0003-00-01
NEC B02035-W0N42
Net Insight NPA0012-L101
Netgear AGM732F
Netonix SFP LX
NetOptics SFPKT-LX
Netscout 321-0433
Nevion SFP-TR1-13T-LR
Nexans 88645870
Nexans 88646016
Niveo NVSM550U
Nokia (ex. Alcatel-Lucent) 1AB376720002
Nokia (ex. Alcatel-Lucent) 3FE25774AA01
Nokia (ex. Alcatel-Lucent) 3HE00028AA
Nokia (ex. Alcatel-Lucent) 3HE00028CA
Nokia (ex. Alcatel-Lucent) 3HE00070AA
Nokia Networks FOSC 471880A.101
Nokia Siemens Networks V50017-U363-K500
Nokia Siemens
Networks V50017-U463-K500
Nokia-Siemens (ex. Atrica) AT10006-ID-R
Nortel / Juniper / NSN SFP-LX
NoviFlow 400000505
NoviFlow 400000507
Nvidia (ex. Mellanox)
MC3208011-LX
Omnitron 7207-1
OpenGear 569025
OPNsense SFP-1G-LX
Orckit-Corrigent YTR00096
Overture 3000-042
Packetlight SL6
pakedge FM-1G-SM
Palo Alto Networks
PAN-SFP-LX
PBN SFP LX
Penguin Computing SFP LX
Perle PSFP-1000D-S2LC10
Phoenix Contact FL SFP LX
Planet MGB-LX
ProfiTap PT-1G-LX-31RAD SFP-6D
Radware 9062066
Raisecom USFP-GB/S32-DL
Redback SFP-GE-LX
Redlion NTSFP-LX-10
Ribbon (ex. ECI) OTGBE-LX
Riedel 1090004
Rockwell 1783-SFP1GLX
Sandvine 100-00157
secunet SFP-1GE-LX
Siemens SFP992-1LD
Solarflare SFP LX
SonicWALL 01-SSC-9790
Sophos ASG0000LX
Sophos ITFZTCHLX
StarTech SFP1000LHST
Stormshield NA-TRANS-SFP-LX
Synology SFP LX
Telco Systems BTI-MGBIC-GLX-DD-LC
Teleste MSG211A
Teltonika DS-SFP112X-ECE0_1.25G
TP-LINK TL-SM311LS
Transition Networks
TN-SFP-LX
Trend Networks SFP-1G-LX
TRENDnet TEG-MGBS10
Turris Omnia SFP LX
Ubiquiti Networks UF-SM-1G-S
Viavi (ex. JDSU) CSFP-2G-3-1
Volktek GBM-104-10
Wago 852-1210
WatchGuard WG8585-LX
Waystream (ex. Packetfront) SFP-1000BASE-LX-M
Westermo 1100-0141
Westermo 1100-0541
Wi-Tek WI-SFP10-20KM
Winyao WY-1.25GB-SFP-1310nm
Xtera Communications 900-0092-01
Yamaha SFP-SWRG-LX
Zhone SFP-GE-LX-1310
ZPE Systems SFP-1G-LX-31
ZTE SFP-GE-S10K
Zyxel SFP-LX-10-D
