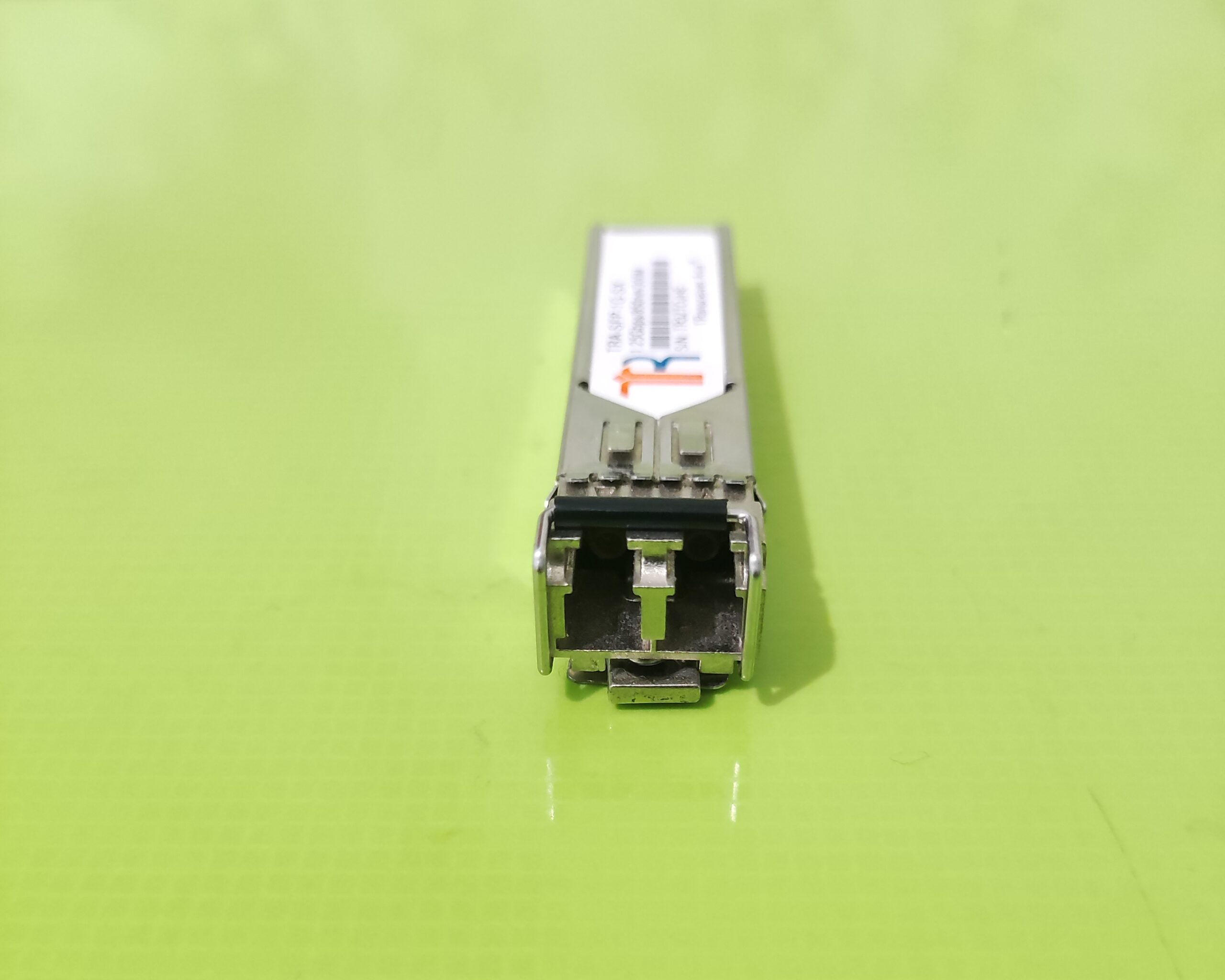

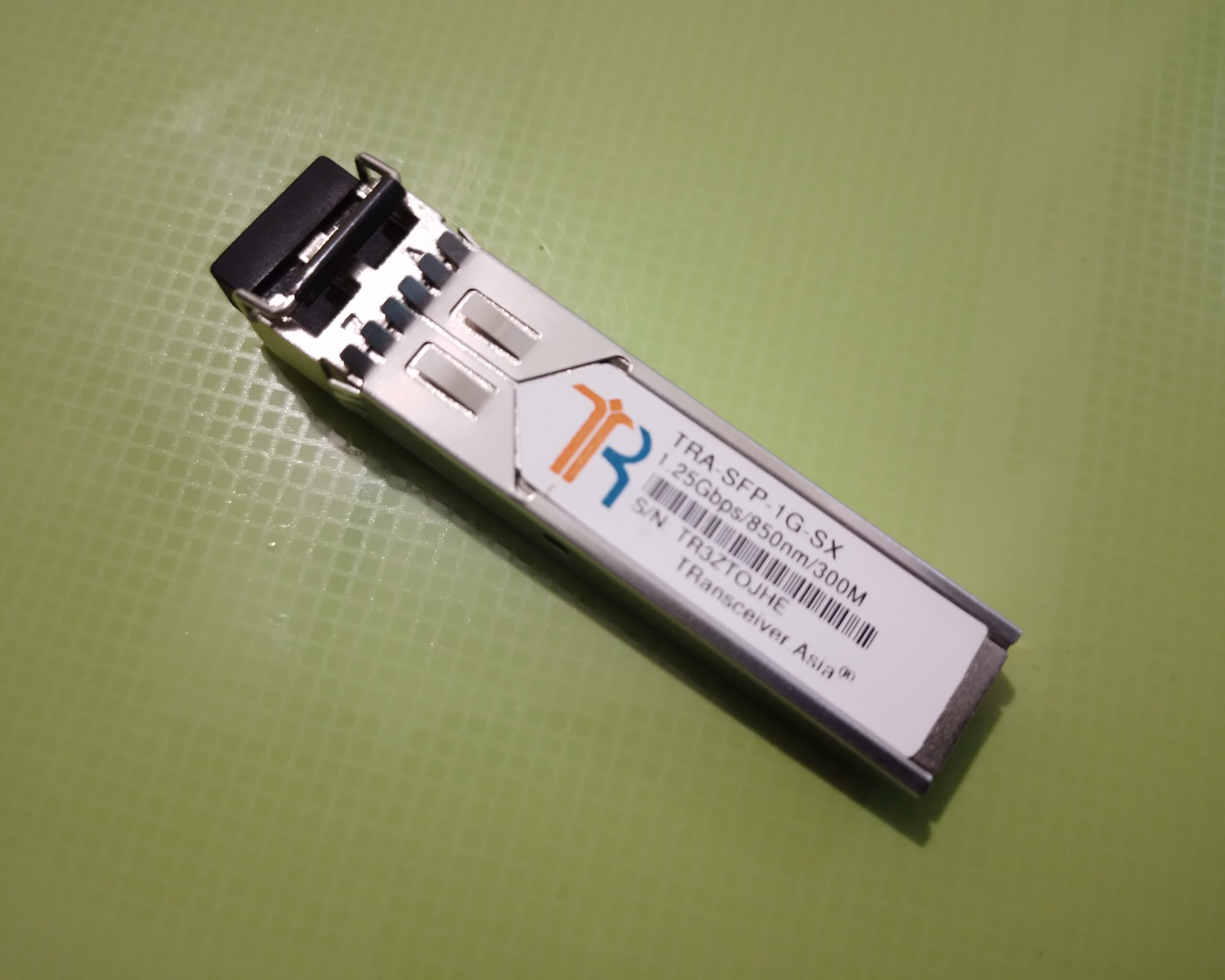

TRA-SFP-1G-SX
1000BASE-SX SFP 850nm 550m Module,
- 1G SFP
- LC - Duplex
- 1.05 Gbit/s - 1.25 Gbit/s
- 0° C - 70° C
- Up to 550 m
- Compliance Code: SX
- ORDERING GUIDE
PART NUMBER
TRA-SFP-1G-SX
TRANSCEIVER DESCRIPTION
1000BASE-SX SFP 850nm 550m Module,
- DATASHEET
- SPECIFICATIONS
FORM FACTOR:
SFP
CONNECTOR / POLISH:
LC-Duplex PC
INTERFACE:
Multimode
COMPLIANCE CODE:
SX
OPERATING TEMPERATURE:
Standard
MODULATION:
NRZ
DISTANCE:
550 m
TEMPERATURE RANGE:
0°C - 70°C
BANDWIDTH:
1.05 Gbit/s - 1.25 Gbit/s
DIGITAL DIAGNOSTIC MONITORING (DDM):
Yes, internally calibrated
POWER CONSUMPTION:
1 W
CDR:
None
SGMII:
No
INBUILT FEC:
No
POWERBUDGET (DB):
7.5 dB
TRANSMIT MIN/MAX PER LANE:
-9.5 dBm / -3 dBm
RECEIVER MIN/MAX PER LANE:
-17 dBm / -3 dBm (overload) @1G
WAVELENGTH TX (TYPICAL):
850 nm
WAVELENGTH TX (RANGE):
830 - 860 nm
WAVELENGTH RX (TYPICAL):
850 nm
WAVELENGTH RX (RANGE):
760 - 860 nm
LASER:
VCSEL
RECEIVER TYPE:
PIN
MODULATION:
NRZ @1G
SUPPORTED PROTOCOLS:
1G Fibre Channel, Gigabit Ethernet
- COMPATIBLE WITH
- A10networks AXSK-CSFP-SR
- Accedian Networks 7SM-000
- Actelis 506R00012
- ADTRAN 1184561PG3
- ADVA 0061001010
- Advantech SFP-GSX/LC-AE
- Aerohive Networks
- AH-ACC-SFP-1G-SX
- Alcatel-Lucent Ent. SFP-GIG-SX
- Allied Telesis AT-SPSX
- Allnet ALL4750
- Araknis Networks AN-ACC-SFP-MMF-350
- Arista 3rd_Party SFP-1G-SX
- Arista SFP-1G-SX
- Aruba Networks JW088A
- Aruba Networks (ex. HP Network) 453577-001
- Aruba Networks (ex. HP Network) J4858C
- Aruba Networks (ex. HP Network) J4858D
- Aruba Networks (ex. HP Network) R9D16A
- AudioCodes SFP SX
- Avaya (ex. Nortel) AA1419048-E6
- Aviat Networks 079-422662-001
- Axis T8612
- Barnfind BTSFP-MM-1G550
- barox AC-SFP-SX-E
- Barracuda Networks SFP SX
- Bintec SFP-LC-SX
- Blackbox LFP411
- Brocade / Ruckus E1MG-SX-OM
- Brocade E1MG-SX-OM
- Calix 100-01660
- Cambium Networks SFP-1G-SX
- Ceragon ER-8000-0
- Cerio SLC-GSXM
- Check Point BTI-MGBIC-GSX-LC
- Check Point CPAC-TR-1SX
- Chelsio SM1G-SX
- Ciena (ex. Nortel) NTTP01AF
- Ciena (ex. Nortel) NTTP06AFE6
- Ciena XCVR-A00G85
- Cisco (ex. Meraki) MA-SFP-1GB-SX
- Cisco Systems (ex. Linksys) MGBSX1
- Cisco Systems (ex. Viptela) VIP-SFP-1GE-SX
- Cisco Systems DS-SFP-FCGE-SW
- Cisco Systems GLC-SX-MM
- Cisco Systems GLC-SX-MMD
- Cisco Systems ONS-SC-GE-SX
- Cisco Systems SFP-GE-S
- Citrix Netscaler EW3A0000234
- Clavister CLA-APP-SFP-1G-SX
- CommScope (ex. Arris) 722093
- ComNet SFP-16
- Coriant (ex. Tellabs) 0410-0447
- CTC Union ISFP-M7000-85-D
- Cumulus Networks SFP SX
- Cyan 280-0045-00
- D-LINK DEM-311GT
- Datto DNW-SFP-1GB-SX
- Dell (ex. Force10) GP-SFP2-1S
- Dell 320-2881
- Dell 331-5308
- Dell 407-BBOR
- Delock 86188
- Digitus DN-81000
- DrayTek SFP.0LC.202
- Edge Core ET4202-SXeneo SFP-0850M10
- Ericsson RDH90120/42009
- Extreme (ex. Enterasys) MGBIC-LC01
- Extreme 10051
- F5 Networks OPT-0010
- FiberPlex SFP-MC24XC-8585-0
- FibroLAN SF1G-S1
- Fireeye SX1GPX-HW
- Fluke Networks SFP-1000SX
- Forcepoint MOD-SFP-GE-SX
- Fortinet FG-TRAN-SX
- Fortinet FN-TRAN-SX
- Fujitsu S26361-F3986-E2
- Gigamon SFP-502A1G0850
- Grandstream MM850-550M-1.25G
- H3C (ex. 3COM) 3CSFP91
- Hillstone TRAN-SX
- Hirschmann M-SFP-SX/LC
- HP H3C JD118B
- HP H3C JD493A
- HP Storage (C-Series) 453151-B21
- HP Storage (H-Series) SFP-SX
- Huawei eSFP-GE-SX-MM850M (02315204)
- Infinera (ex. Transmode) TRX100006
- Intel SFP SX
- Juniper (ex. BTI Systems) BP3AD1SS
- Juniper EX-SFP-1GE-SX
- Juniper JX-SFP-1GE-SX
- Juniper NS-SYS-GBIC-MSX
- Juniper QFX-SFP-1GE-SX
- Juniper SFP-1GE-SX
- Juniper SRX-SFP-1GE-SX
- Keymile 37973002
- Keysight (ex. Ixia) MM850
- Korenix SFPGSXD
- KTI Networks SFP-GLM-A
- kvm-tec KT-7009
- LANCOM SFP-SX-LC1
- LAWO 981/60-10
- Lenovo (ex. Blade Network) BN-CKM-S-SX
- Lenovo (ex. IBM) 81Y1622
- LevelOne SFP-3000
- Longshine LCS-MGBIC-SX
- Marconi SU57AD
- McAfee ITV-2KSG-NA-100A
- MikroTik S-85DLC05D
- Motorola NX-7500-SFP-SX
- Moxa SFP-1GSXLC
- MRV SFP-DGD-SX
- NEC B02035-W0N41
- Net Insight NPA0012-S011
- NetApp X6567-R6
- Netgate SFP-1G-SX
- Netgear AGM731F
- Netonix SFP SX
- NetOptics SFPKT-50SX
- Netscout 321-0435
- Nevion SFP-TR1-850-SR
- Nexans 88645879
- Niveo NVMSX550U
- Nokia (ex. Alcatel-Lucent) 1AB376720001
- Nokia (ex. Alcatel-Lucent) 3FE25773AA
- Nokia (ex. Alcatel-Lucent) 3HE00027CA
- Nokia (ex. Alcatel-Lucent) OMGBE-SX
- Nokia Siemens
- Networks V50017-
- U462-K500
- Nokia-Siemens (ex. Atrica) AT10005-ID-R
- Nortel / Juniper / NSN SFP-SX
- Novastar SFP-SX-MM
- Nvidia (ex. Mellanox)
- MC3208011-SX
- OpenGear 569023
- OPNsense DECSFP1GSR850
- Orckit-Corrigent CPN10037
- Overture 3000-041
- Packetlight SL4
- pakedge FM-1G-SM
- Palo Alto Networks PAN-SFP-SX
- Penguin Computing SFP SX
- Perle PSFP-1000D-M2LC05
- Phoenix Contact FL SFP SX
- Planet MGB-SX
RAD SFP-5D - Radware 9062026
- Raisecom USFP-GB/M-D-L
- Redback SFP-GE-SX
- Redlion (ex. Sixnet) GMFIBER-SFP-500
- Redlion NTSFP-SX
- Ribbon (ex. ECI) OTGBE_SX
- Riedel 1090002
- Riverstone SFPGE-11 / SFP-SX
- Rockwell 1783-SFP1GSX
- Sandvine 100-00156
- Securepoint SFP SX
- Siemens 6GK5992-1AL00-8AA0
- SonicWALL 01-SSC-9789
- Sophos ASG0000SX
- Sophos ITFZTCHSX
- StarTech SFPSXMM
- Stormshield NA-TRANS-SFP-SX
- Telco Systems BTI-MGBIC-GSX-DD-LC
- Teleste MSG101B
- TP-LINK TL-SM311LM
- Transition Networks
- TN-SFP-SXD
- Trend Networks SFP-1G-SX
- TRENDnet TEG-MGBSX
- Ubiquiti Networks UF-MM-1G
- Versa Networks SFP SX
- Viavi (ex. JDSU) CSFP-2G-8-1
- voleatech SFP SX
- Volktek GBM-104
- WatchGuard WG8585
- Waystream (ex. Packetfront) SFP-1000BASE-SX-M
- Westermo 1100-0144
- Winyao WY-1.25GB-SFP-850nm
- Xtera Communications SFP SR
- Yamaha SFP-SWRG-SX
- Zhone SFP-GE-SX-850
- Zyxel SFP-SX-D
