TRA-SFP-10G-BD-ER 40KM(A)
TRA-SFP-10G-BD-ER 40KM(B)
Instagram 10G-BD-ER

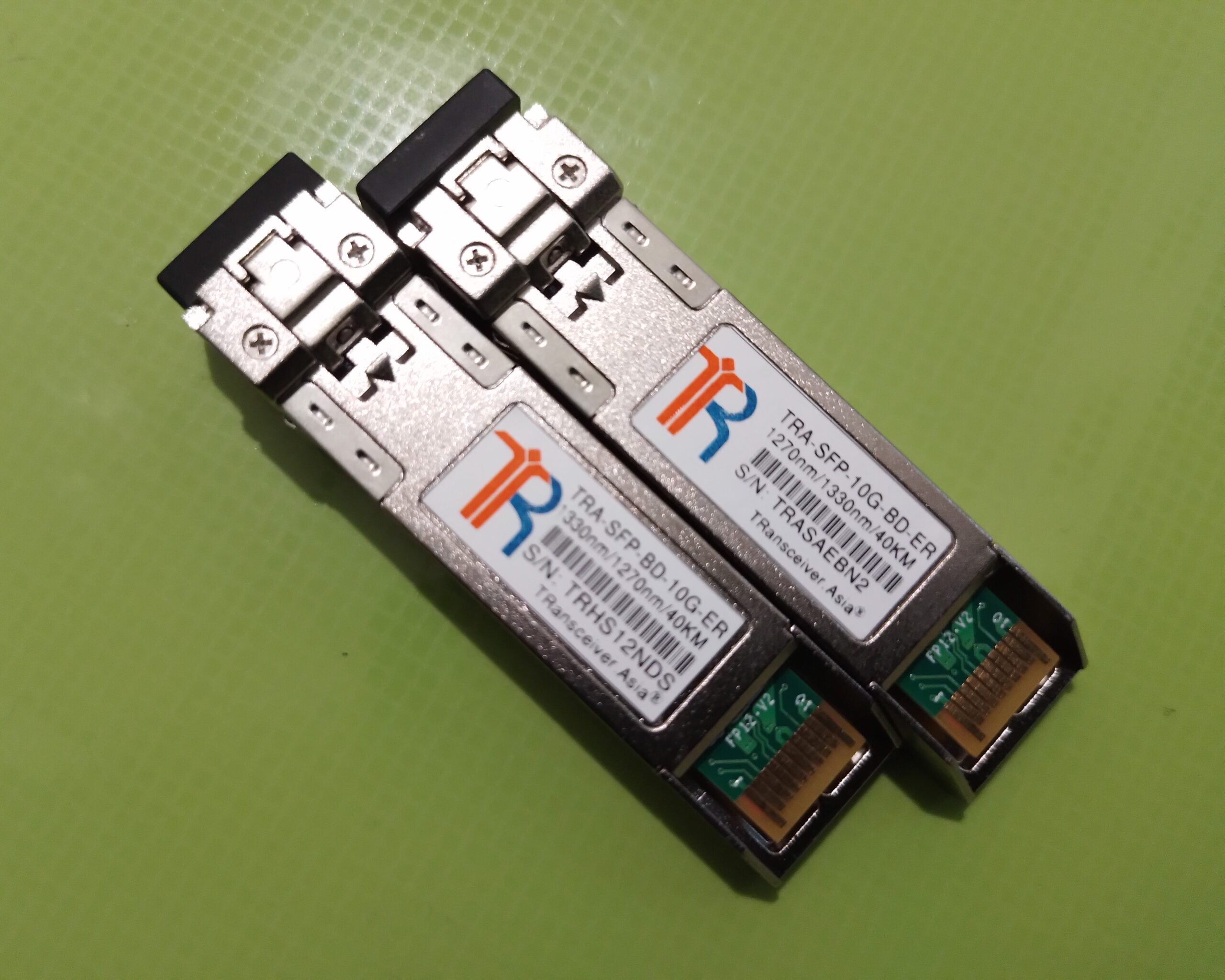

TRA-SFP-10G-BD-ER

10GBASE-BX SFP+ 1270nm-TX/1330nm-RX 40km Module
TRA-SFP-10G-BD-ER
SFP 10G
LC
  • 10G SFP
  • LC - Simplex
  • 1.25 Gbit/s - 11.3 Gbit/s
  • 0° C - 70° C
  • Up to 40 Km
  • Compliance Code: Bidi ER
λ 1330/1270nm
40 Km
↓↑ 11.3G
LC simplex singlemode
  • ORDERING GUIDE
PART NUMBER
TRA-SFP-10G-BD-ER
TRANSCEIVER DESCRIPTION
10GBASE-BX SFP+ 1270nm-TX/1330nm-RX 40km Module
  • DATASHEET

📄 Datasheet-TRA-SFP-10G-BD-ER

  • SPECIFICATIONS
FORM FACTOR:
SFP+
CONNECTOR / POLISH:
LC - Simplex UPC
INTERFACE:
Singlemode
COMPLIANCE CODE:
Bidi ER
OPERATING TEMPERATURE:
Standard
MODULATION:
NRZ
DISTANCE:
40 Km
TEMPERATURE RANGE:
0°C - 70°C
BANDWIDTH:
1.25 Gbit/s - 11.3 Gbit/s
DIGITAL DIAGNOSTIC MONITORING (DDM):
Yes, internally calibrated
POWER CONSUMPTION:
1.5 W
CDR:
None
SGMII:
No
INBUILT FEC:
No
POWERBUDGET (DB):
15 dB
TRANSMIT MIN/MAX PER LANE:
0.5 dBm / 6 dBm
RECEIVER MIN/MAX PER LANE:
-14.5 dBm / 0.5 dBm (overload) @10G
WAVELENGTH TX (TYPICAL):
1270 nm
WAVELENGTH RX (TYPICAL):
1330 nm
LASER:
DFB
RECEIVER TYPE:
PIN
MODULATION:
NRZ @10G
EXTINCTION RATIO:
3.5 dB
SUPPORTED PROTOCOLS:
10G Ethernet, 10G FC, 8G Fibre Channel, Gigabit Ethernet, LTE 1.22G CPRI, LTE 1.536G OBSAI, LTE 2.458G CPRI, LTE 3.072G OBSAI, LTE 4.915G CPRI, LTE 6.144G CPRI, LTE 6.144G OBSAI, LTE 7.373G CPRI, LTE 9.830G CPRI
  • COMPATIBLE WITH
  • A10networks
  • Accedian Networks 7SU-401
  • ADVA 1061701851-02
  • Alcatel-Lucent Ent. SFP-10G-LR
  • Allied Telesis AT-SP10LR
  • Arista 3rd_Party SFP-10G-ER
  • Arista SFP-10G-ER
  • Aruba Networks (ex. HP Network) J9153A
  • Avaya (ex. Nortel)
  • Brocade / Ruckus 10G-SFPP-ER
  • Brocade 10G-SFPP-ER
  • Brocade XBR-000217
  • Calix 100-02151
  • Check Point
  • Chelsio
  • Ciena (ex. Nortel) NTTP30CFE6
  • Ciena XCVR-S40U33
  • Cisco Systems SFP-10G-BX40D-I
  • Cisco Systems SFP-10G-ER
  • ComNet SFP-10G-BX40-D
  • Cyan 280-0351-00
  • D-LINK
  • Dell (ex. Force10) GP-10GSFP-1E
  • Dell 407-BBOP
  • Dell 407-BBOV
  • Edge Core ET5402-LR
  • Extreme (ex. Enterasys) 10GB-BX40-D
  • Extreme 10309
  • F5 Networks
  • FibroLAN SFPP-S13-40
  • Fluke Networks
  • Fortinet FN-TRAN-SFP+ER
  • Fujitsu
  • HP H3C JG234A
  • Huawei OSX040N01
  • Infinera (ex. Transmode)
  • TRX100114
  • Intel E10GSFPLR
  • Juniper SFP-10GE-ER
  • Juniper SFPP-10GE-BX40D-IT
  • Keymile
  • KTI Networks
  • LANCOM SFP-10G-BX-D-40KM
  • Lenovo (ex. Blade Network)
  • LevelOne
  • MikroTik S+2332LC40D
  • Moxa
  • MRV
  • Net Insight NPA0077-LRD1
  • Netgear AXM762
  • Nevion SFP-TR10-T1330/R1270-ER
  • Nokia (ex. Alcatel-Lucent) 3FE55744AA
  • Nokia (ex. Alcatel-Lucent) 3HE05036AA
  • Nokia (ex. Alcatel-Lucent) 3HE10452AB
  • Nokia Siemens Networks
  • Palo Alto Networks
  • Planet MTB-LB40
  • RAD SFP-P-6ADH
  • Radware
  • Ribbon (ex. ECI) OTP10_L33BD
  • SonicWALL 01-SSC-9786
  • Supermicro
  • Telco Systems BTI-SFP+-XBD40L-DD-33/27S
  • Transition Networks TN-10GSFP-LRB42
  • Ubiquiti Networks UF-SM-10G
  • Waystream (ex. Packetfront) SFP-10GE-LR
  • Zyxel SFP10G-ER
