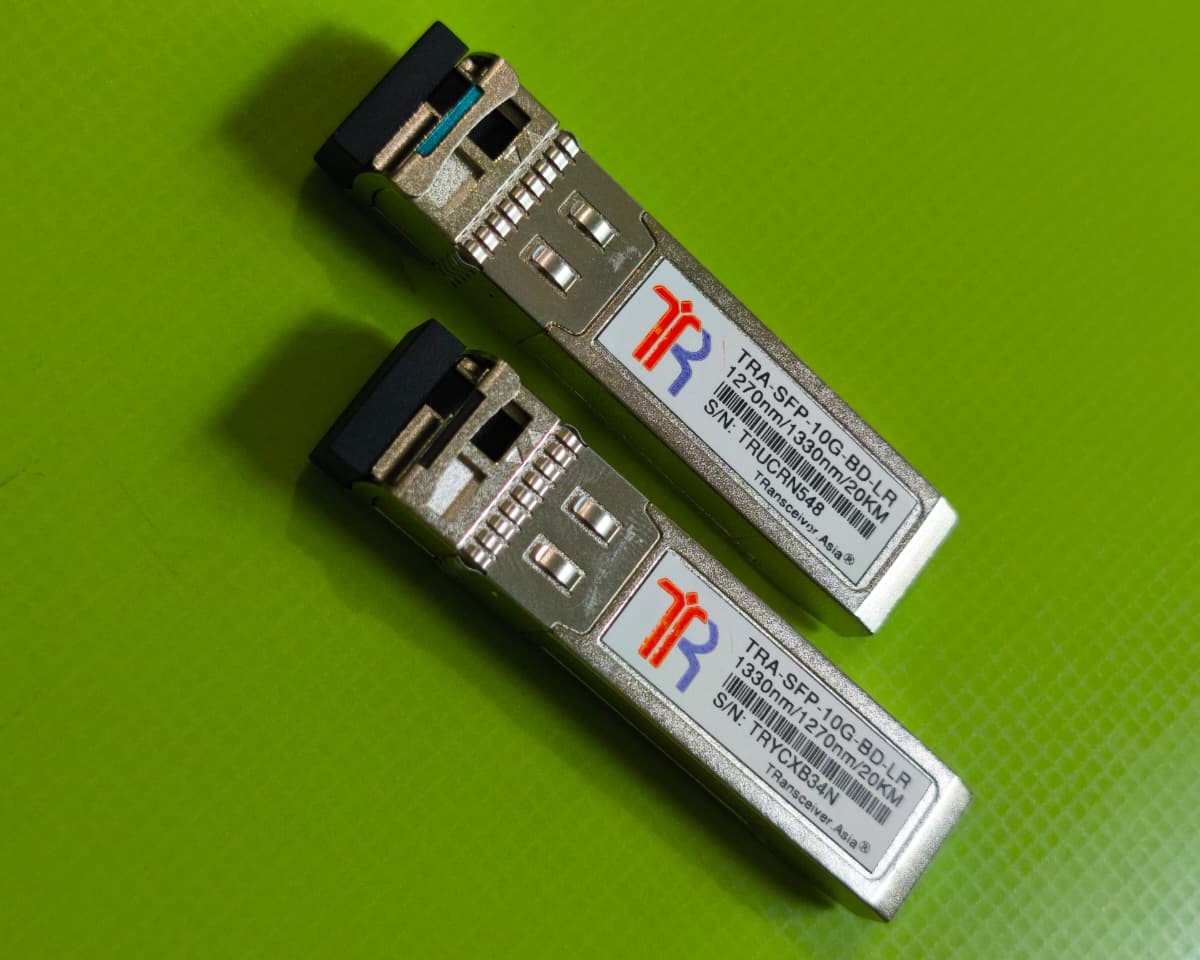

TRA-SFP-10G-BD-LR
10GBASE-BX SFP+ 1270nm-TX/1330nm-RX 20km Module
- 10G SFP
- LC - Simplex
- 614 Mbit/s - 11.3 Gbit/s
- 0° C - 70° C
- Up to 20 Km
- Compliance Code: Bidi LR
- ORDERING GUIDE
PART NUMBER
TRA-SFP-10G-BD-LR
TRANSCEIVER DESCRIPTION
10GBASE-BX SFP+ 1270nm-TX/1330nm-RX 20km Module
- DATASHEET
- SPECIFICATIONS
FORM FACTOR:
SFP+
CONNECTOR / POLISH:
LC - Simplex UPC
INTERFACE:
Singlemode
COMPLIANCE CODE:
Bidi LR
OPERATING TEMPERATURE:
Standard
MODULATION:
NRZ
DISTANCE:
20 Km
TEMPERATURE RANGE:
0°C - 70°C
BANDWIDTH:
614 Mbit/s - 11.3 Gbit/s
DIGITAL DIAGNOSTIC MONITORING (DDM):
Yes, internally calibrated
POWER CONSUMPTION:
1.5 W
CDR:
None
SGMII:
No
INBUILT FEC:
No
POWERBUDGET (DB):
10.4 dB
TRANSMIT MIN/MAX PER LANE:
-4 dBm / 0.5 dBm
RECEIVER MIN/MAX PER LANE:
-14.4 dBm / 0.5 dBm (overload) @10G
WAVELENGTH TX (TYPICAL):
1270 nm
WAVELENGTH RX (TYPICAL):
1330 nm
LASER:
DFB
RECEIVER TYPE:
PIN
MODULATION:
NRZ @10G
EXTINCTION RATIO:
3.5 dB
SUPPORTED PROTOCOLS:
10G Ethernet, 10G FC, 8G Fibre Channel, Gigabit Ethernet, LTE 0.614G CPRI, LTE 0.768G OBSAI, LTE 1.22G CPRI, LTE 1.536G OBSAI, LTE 2.458G CPRI, LTE 3.072G OBSAI, LTE 4.915G CPRI, LTE 6.144G CPRI, LTE 6.144G OBSAI, LTE 7.373G CPRI, LTE 9.830G CPRI
- COMPATIBLE WITH
- A10networks AXSK-SFP+ LR
- Accedian Networks 7ST-400
- ADTRAN 1442410G1
- ADVA 1061701851-02
- Alcatel-Lucent Ent. SFP-10G-LR
- Allied Telesis AT-SP10LR
- Arista 3rd_Party SFP-10G-LR
- Arista SFP-10G-LR
- Aruba Networks (ex. HP Network) 455886-B21
- Aruba Networks (ex. HP Network) J9151A
- Avaya (ex. Nortel) AA1403011-E6
- Avaya (ex. Nortel)
- AA1403169-E6
- Brocade / Ruckus 10G-SFPP-LR
- Brocade 10G-SFPP-LR
- Brocade XBR-000153
- Calix 100-03498
- Check Point CPAC-TR-10LR-C
- Chelsio SM10G-LR
- Ciena (ex. Nortel) NTTP30CFE6
- Ciena 160-9108-900
- Ciena XCVR-S10U27
- Cisco (ex. Meraki) MA-SFP-10GB-LR
- Cisco Systems SFP-10G-BXU-I
- Cisco Systems SFP-10G-LR
- Clavister APP-SFP-10G-LR
- ComNet SFP-10G-BX10-U
- Cyan 280-0336-00
- D-LINK DEM-432XT-DD
- Deciso 10G-BiDi-1270
- Dell (ex. Force10) GP-10GSFP-1L
- Dell 331-5310
- Dell 407-BBOP
- Delock 86171
- Edge Core ET5402-LR
- Extreme (ex. Enterasys) 10GB-BX10-U
- Extreme 10302
- F5 Networks OPT-0017
- FibroLAN SFPP-S12-15
- Fluke Networks
- Fortinet FG-TRAN-SFP+LR
- Fortinet FN-TRAN-SFP+LR
- Fujitsu S26361-F3986-E4
- Hitachi SFP-10GE-BIDI-U
- HP H3C JD094B
- HP H3C JL439A
- HP Storage (H-Series) 720999-002
- Huawei OSX010N30 (34060742)
- Huawei SFP-10G-BXU1
- IBM Storage 45W1216
- Infinera (ex. Coriant) 81.73T-BX2733LR-R6
- Infinera (ex. Transmode) TRX100100
- Intel E10GSFPLR
- Juniper EX-SFP-10GE-LR
- Juniper JNP-SFP-10G-BX10U
- Juniper SFP-10GE-LR
- Juniper SFPP-10GE-BX10U-IT
- Juniper SFPP-10GE-LR
- Keymile 37973134
- KTI Networks
- LANCOM SFP-BiDi1310-LC10
- LANCOM SFP-LX-LC10
- Lenovo (ex. Blade
- Network) BN-CKM-SP-LR
- Lenovo 90Y9412
- LevelOne
- MikroTik S+23LC10D
- Moxa
- MRV SFP-10GD-BX23
- Net Insight NPA0077-LRD1
- Netgear AXM762
- Niveo NVM10RLG
- Nokia (ex. Alcatel-Lucent) 3FE55743AB
- Nokia (ex. Alcatel-Lucent) 3FE62600DA
- Nokia (ex. Alcatel-Lucent) 3HE04823AA
- Nokia (ex. Alcatel-Lucent) 3HE05037AB
- Nokia Networks P206994
- Nokia Siemens
- Networks V50017-U622-K500
- Nvidia (ex. Mellanox) MFM1T02A-LR
- Palo Alto Networks PAN-SFP-PLUS-LR
- QNAP SFP+ BIDI LR
- RAD SFP-P-5BDH
- Radware
- Raisecom USFP+-192-S31-DL
- ReadyLinks 1/10-SM- 1310-10K
- Ribbon (ex. ECI) OTP10_S27BD
- Riedel 1990130
- SolidRun SFP-10G-BXU
- SonicWALL 01-SSC-9786
- Sophos ASG0000LR
- Supermicro AOC-E10GSFPLR
- Telco Systems BTI-SFP+-XBD10L-DD-27/33S
- TP-LINK TXM431-LR
- Transition Networks TN-10GSFP-LRB11
- TRENDnet TEG-10GBS10
- Ubiquiti Networks UF-SM-10G-S BU
- Waystream (ex. Packetfront) SFP-10GE-BX-U
- Zyxel SFP10G-LR
