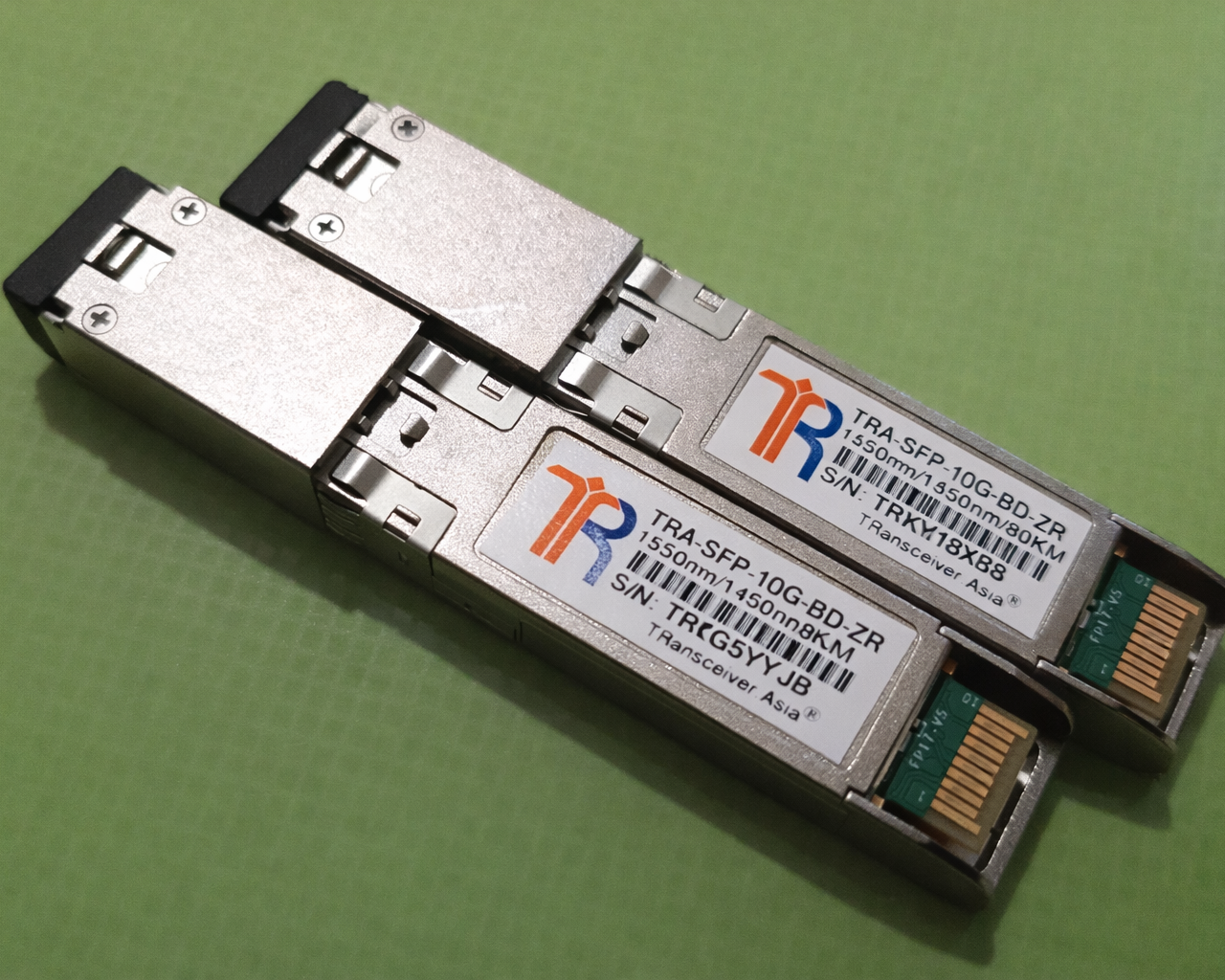

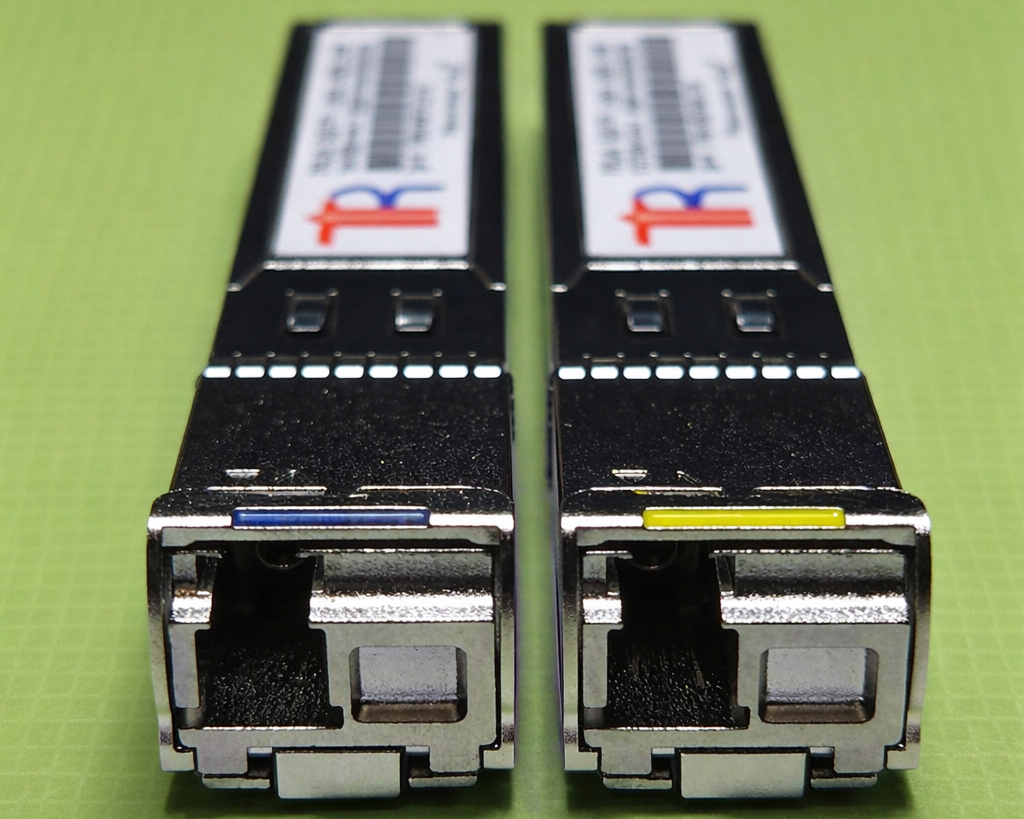

TRA-SFP-10G-BD-ZR
10GBASE-BX SFP+ 1490nm-TX/1550nm-RX 80km Module
- 10G SFP
- LC - Simplex
- 9.95 Gbit/s - 11.3 Gbit/s
- 0° C - 70° C
- Up to 80 Km
- Compliance Code: Bidi ZR
- ORDERING GUIDE
PART NUMBER
TRA-SFP-10G-BD-ZR
TRANSCEIVER DESCRIPTION
10GBASE-BX SFP+ 1490nm-TX/1550nm-RX 80km Module
- DATASHEET
- SPECIFICATIONS
FORM FACTOR:
SFP+
CONNECTOR / POLISH:
LC - Simplex UPC
INTERFACE:
Singlemode
COMPLIANCE CODE:
Bidi ZR
OPERATING TEMPERATURE:
Standard
MODULATION:
NRZ
DISTANCE:
80 Km
TEMPERATURE RANGE:
0°C - 70°C
BANDWIDTH:
9.95 Gbit/s - 11.3 Gbit/s
DIGITAL DIAGNOSTIC MONITORING (DDM):
Yes, internally calibrated
POWER CONSUMPTION:
2 W
CDR:
TX and RX
SGMII:
No
INBUILT FEC:
No
POWERBUDGET (DB):
22 dB
TRANSMIT MIN/MAX PER LANE:
1 dBm / 4 dBm
RECEIVER MIN/MAX PER LANE:
-23 dBm / -6 dBm (overload) @10G
WAVELENGTH TX (TYPICAL):
1550 nm
WAVELENGTH RX (TYPICAL):
1490 nm
LASER:
EML
RECEIVER TYPE:
APD
MODULATION:
NRZ @10G
EXTINCTION RATIO:
7.5 dB
SUPPORTED PROTOCOLS:
10G Ethernet
- COMPATIBLE WITH
- Arista 3rd_Party SFP-10G-ZR
- Arista SFP-10G-ZR
- Aruba Networks (ex. HP Network) J9153A
- Cisco Systems SFP-10G-ZR
- Extreme 10310
- Huawei OSX040N01
- Infinera (ex. Transmode) TRX100115
- Juniper EX-SFP-10GE-ZR
- Net Insight NPA0077-ZR01
- Nokia (ex. Alcatel-Lucent) 3FE55744AA
- Nokia (ex. Alcatel-Lucent) 3HE05894AA
- Nokia (ex. Alcatel-Lucent) 3HE18110AA
