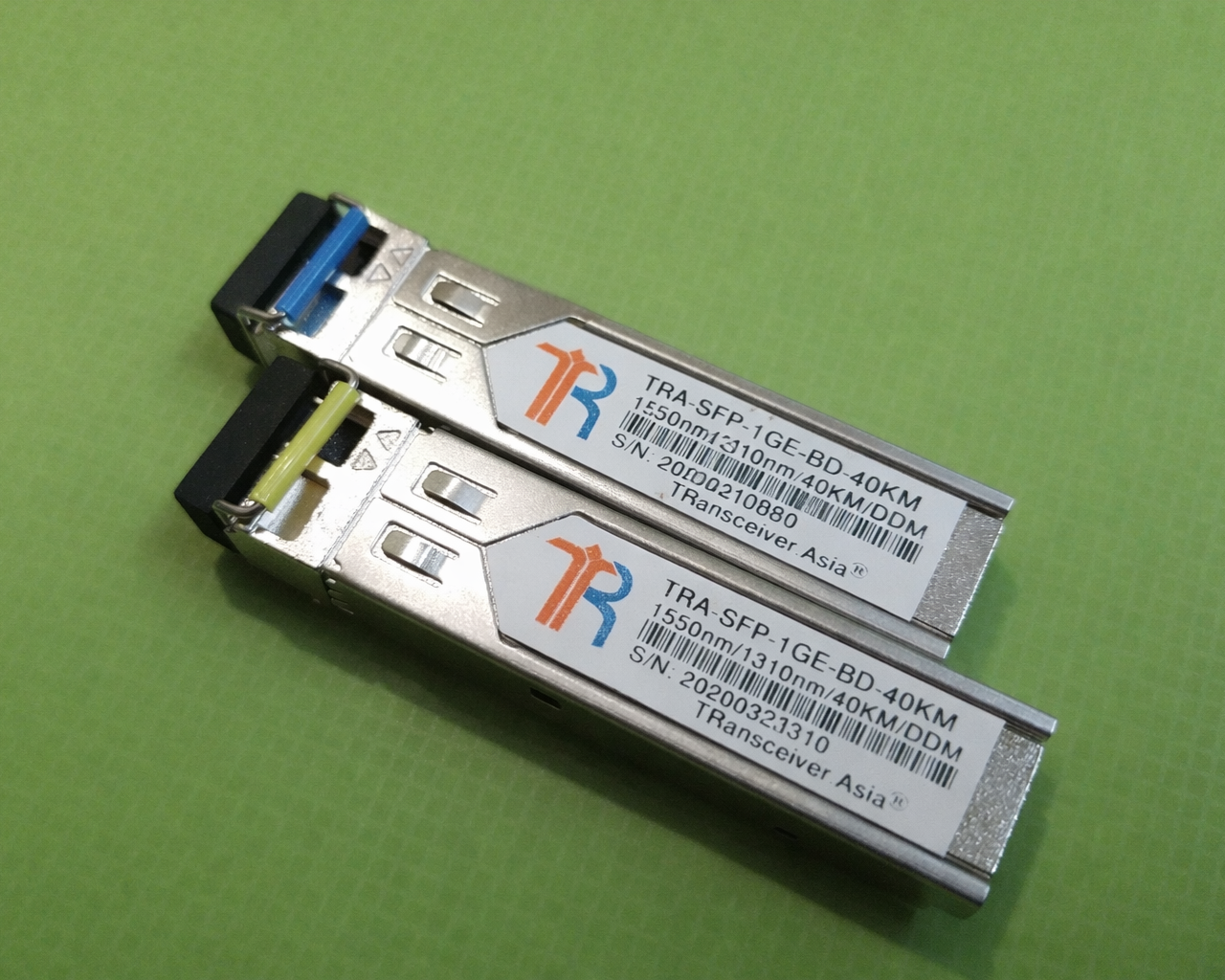

TRA-SFP-1G-BD-EX
1000BASE-BX SFP 1310nm-TX/1550nm-RX 40km Module
- 1G SFP
- LC - Simplex
- 12.5 Mbit/s - 1.25 Gbit/s
- 0° C - 70° C
- Up to 40 Km
- Compliance Code: BiDi EX
- ORDERING GUIDE
PART NUMBER
TRA-SFP-1G-BD-EX
TRANSCEIVER DESCRIPTION
1000BASE-BX SFP 1310nm-TX/1550nm-RX 40km Module
- DATASHEET
- SPECIFICATIONS
FORM FACTOR:
SFP
CONNECTOR / POLISH:
LC - Simplex UPC
INTERFACE:
Singlemode Bidi
COMPLIANCE CODE:
BiDi EX
OPERATING TEMPERATURE:
Standard
MODULATION:
NRZ
DISTANCE:
40 Km
TEMPERATURE RANGE:
0°C - 70°C
BANDWIDTH:
12.5 Mbit/s - 1.25 Gbit/s
DIGITAL DIAGNOSTIC MONITORING (DDM):
Yes, internally calibrated
POWER CONSUMPTION:
1 W
CDR:
None
SGMII:
No
INBUILT FEC:
No
POWERBUDGET (DB):
19 dB
TRANSMIT MIN/MAX PER LANE:
-5 dBm / 0 dBm
RECEIVER MIN/MAX PER LANE:
-24 dBm / -3 dBm (overload) @1G
WAVELENGTH TX (TYPICAL):
1310 nm
WAVELENGTH RX (TYPICAL):
1550 nm
LASER:
DFB
RECEIVER TYPE:
PIN
MODULATION:
NRZ @1G
EXTINCTION RATIO:
9 dB
SUPPORTED PROTOCOLS:
1G Fibre Channel, Fast Ethernet, Gigabit Ethernet
- COMPATIBLE WITH
- Accedian Networks 7ST-004
- ADTRAN 1442140G2
- ADVA 0061003012
- Advantech SFP-GWDM13SC-40E
- Allied Telesis AT-SPBD40-13
- Arista 3rd_Party SFP-1G-LX
- Arista SFP-1G-LX
- Aruba Networks (ex. HP Network) J4859C
- Brocade / Ruckus E1MG-BXU
- Ciena XCVR-A40U31
- Cisco Systems GLC-BX40-U-I
- Coriant (ex. Tellabs) 82.S1GBEBX1133S
- D-LINK DEM-331R
- Edge Core ET4204-BX10
- Extreme (ex. Enterasys) MGBIC-BX40-U
- Extreme 10057
- FibroLAN SF1G-LF13
- Fortinet FG-TRAN-LX
- Fortinet FN-TRAN-LX
- Hirschmann M-SFP-BIDI Type B LH/LC
- Huawei SFP-GE-LX-SM1310-BIDI
- Infinera (ex. Transmode) TRX100081
- Intel SFP BIDI 1310
- Juniper EX-SFP-GE40KT13R15
- Juniper NS-SFP-1GE-LX
- Korenix SFPGLX40B13D
- LevelOne SFP-9421
- Marconi SU57AE
- Moxa SFP-1G40ALC
- MRV SFP-GD-BD35
- Net Insight NPA0012-L101
- Nexans 88646133
- Nokia (ex. Alcatel-Lucent) 1AB393080009
- Nokia (ex. Alcatel-Lucent) 3FE28785AA
- Nokia (ex. Alcatel-Lucent) 3HE04324AA
- Nokia (ex. Alcatel-Lucent) SFP-GIG-BX-U
- Nokia-Siemens (ex. Atrica) AT10078-0D-R
- Palo Alto Networks PAN-SFP-LX
- Planet MGB-LA40
RAD SFP-23A - Raisecom USFP-GB/SS354-DL
- Sophos ASG0000LX
- TP-LINK TL-SM321B
- Transition Networks TN-SFP-LXB41
- TRENDnet TEG-MGBS10D3
- TRENDnet TEG-MGBS40D3
- Ubiquiti Networks UF-SM-1G-S BU
- Westermo 1100-0568
- Zyxel SFP-BX1310-40
