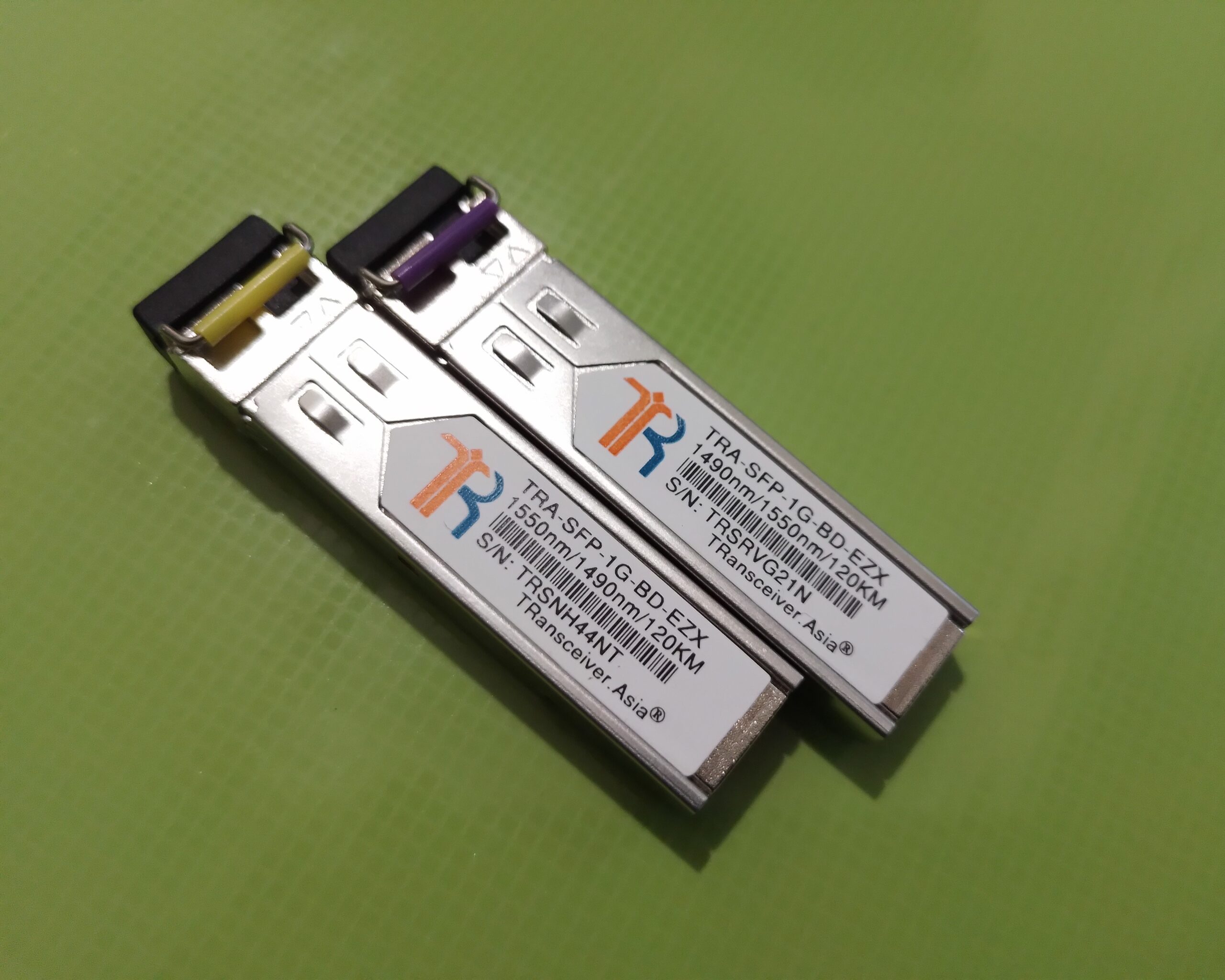

TRA-SFP-1G-BD-EZX
1000BASE-BX SFP 1490nm-TX/1550nm-RX 120km Module
- 1G SFP
- LC - Simplex
- 12.5 Mbit/s - 1.25 Gbit/s
- 0° C - 70° C
- Up to 120 Km
- Compliance Code: BiDi EZX
- ORDERING GUIDE
PART NUMBER
TRA-SFP-1G-BD-EZX
TRANSCEIVER DESCRIPTION
1000BASE-BX SFP 1490nm-TX/1550nm-RX 120km Module
- DATASHEET
- SPECIFICATIONS
FORM FACTOR:
SFP
CONNECTOR / POLISH:
LC - Simplex UPC
INTERFACE:
Singlemode Bidi
COMPLIANCE CODE:
BiDi EZX
OPERATING TEMPERATURE:
Standard
MODULATION:
NRZ
DISTANCE:
120 Km
TEMPERATURE RANGE:
0°C - 70°C
BANDWIDTH:
12.5 Mbit/s - 1.25 Gbit/s
DIGITAL DIAGNOSTIC MONITORING (DDM):
Yes, internally calibrated
POWER CONSUMPTION:
1 W
CDR:
None
SGMII:
No
INBUILT FEC:
No
POWERBUDGET (DB):
34 dB
TRANSMIT MIN/MAX PER LANE:
0 dBm / 5 dBm
RECEIVER MIN/MAX PER LANE:
-33 dBm / -8 dBm (overload) @1G
WAVELENGTH TX (TYPICAL):
1490 nm
WAVELENGTH RX (TYPICAL):
1550 nm
LASER:
DFB
RECEIVER TYPE:
APD
MODULATION:
NRZ @1G
EXTINCTION RATIO:
9 dB
SUPPORTED PROTOCOLS:
1G Fibre Channel, Fast Ethernet, Gigabit Ethernet
- COMPATIBLE WITH
- Cisco Systems GLC-BX80-U-I
- Extreme 10053H
- Ribbon (ex. ECI) OTGBE_L5BD80
