Products

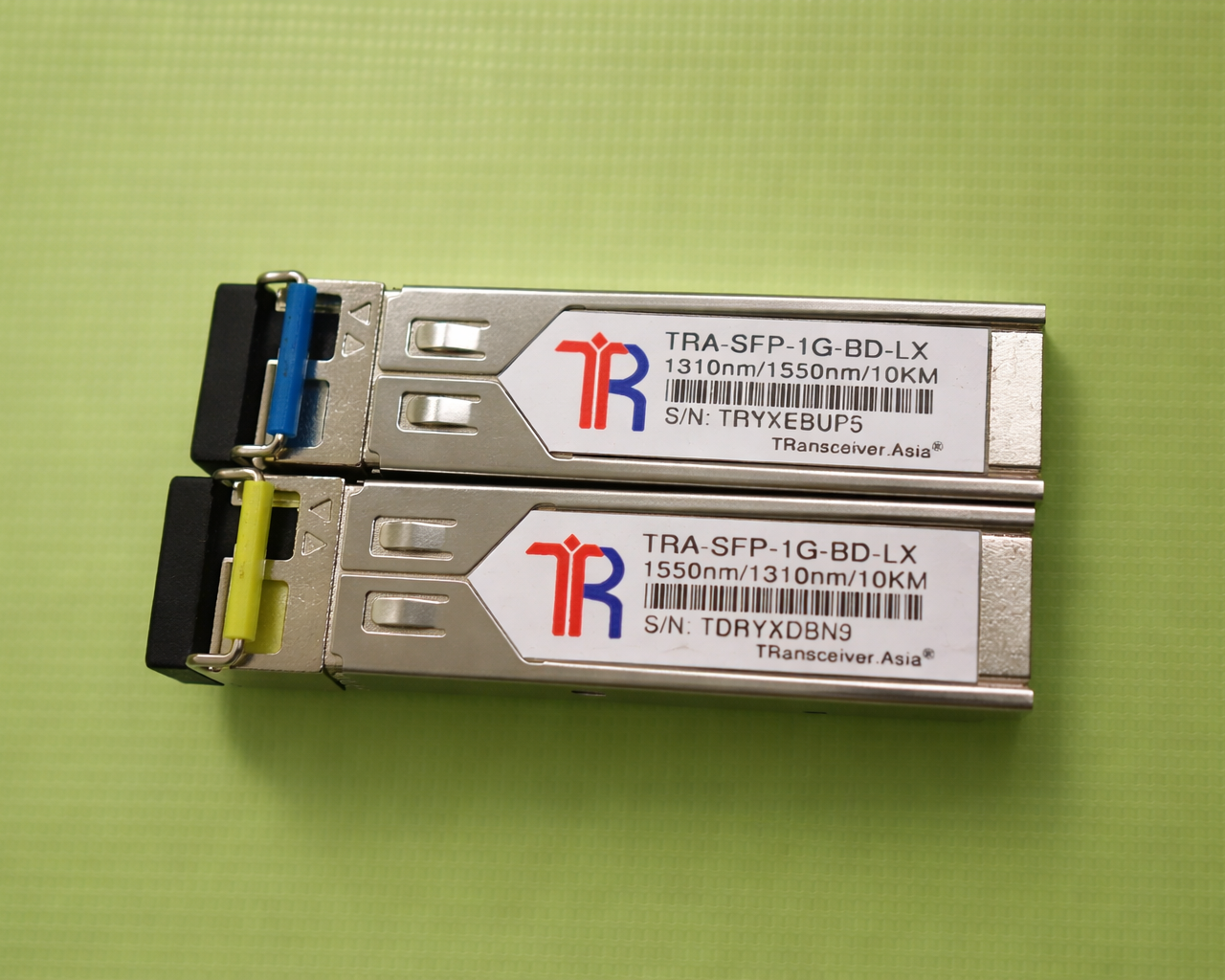

TRA-SFP-1G-BD-LX
1000BASE-BX SFP 1310nm-TX/1550nm-RX 10km Module
- 1G SFP
- LC - Simplex
- 12.5 Mbit/s - 1.25 Gbit/s
- 0° C - 70° C
- Up to 10 Km
- Compliance Code: BiDi LX
- ORDERING GUIDE
PART NUMBER
TRA-SFP-1G-BD-LX
TRANSCEIVER DESCRIPTION
1000BASE-BX SFP 1310nm-TX/1550nm-RX 10km Module
- DATASHEET
- SPECIFICATIONS
FORM FACTOR:
SFP
CONNECTOR / POLISH:
LC-Simplex UPC
INTERFACE:
Singlemode Bidi
COMPLIANCE CODE:
BiDi LX
OPERATING TEMPERATURE:
Standard
MODULATION:
NRZ
DISTANCE:
10 Km
TEMPERATURE RANGE:
0°C - 70°C
BANDWIDTH:
125 Mbit/s - 1.25 Gbit/s
DIGITAL DIAGNOSTIC MONITORING (DDM):
Yes, internally calibrated
POWER CONSUMPTION:
1 W
CDR:
None
SGMII:
No
INBUILT FEC:
No
POWERBUDGET (DB):
12 dB
TRANSMIT MIN/MAX PER LANE:
-9 dBm / -3 dBm
RECEIVER MIN/MAX PER LANE:
-21 dBm / -3 dBm (overload) @1G
WAVELENGTH TX (TYPICAL):
1310 nm
WAVELENGTH RX (TYPICAL):
1550 nm
LASER:
FP
RECEIVER TYPE:
PIN
MODULATION:
NRZ @1G
EXTINCTION RATIO:
9 dB
SUPPORTED PROTOCOLS:
1G Fibre Channel, Fast Ethernet, Gigabit Ethernet
- COMPATIBLE WITH
- Arista 3rd_Party SFP-1G-LX
- Arista SFP-1G-LX
- Aruba Networks (ex. HP Network) J4859C
- Aruba Networks (ex. HP Network) J4859D
- Calix 100-01666
- Ciena XCVR-A10U31
- Ciena XCVR-B10U31
- Cisco Systems GLC-BX-U
- Ericsson RDH10248/1
- Extreme 10057
- Fortinet FG-TRAN-LX
- Guntermann & Drunck SFP LX
- Hirschmann M-SFP-BIDI Type A LX/LC EEC
- Huawei SFP-GE-LX-SM1310-BIDI
- Korenix SFPGLX10B13D-w
- kvm-tec KT-7011
- LANCOM SFP-LX-LC1
- LevelOne SFP-4310
- Moxa SFP-1G10ALC-T
- Nexans 88646073
- Nokia (ex. Alcatel-Lucent) 3HE00868CA
- Nokia Siemens
- Networks V50017-U412-K500
- Nokia-Siemens (ex. Atrica) AT10077-0D-R
- Planet MGB-TLA10
- Transition Networks TN-SFP-LXB11T
- Westermo 1100-0558
- Zyxel SFP-BX1310-10
