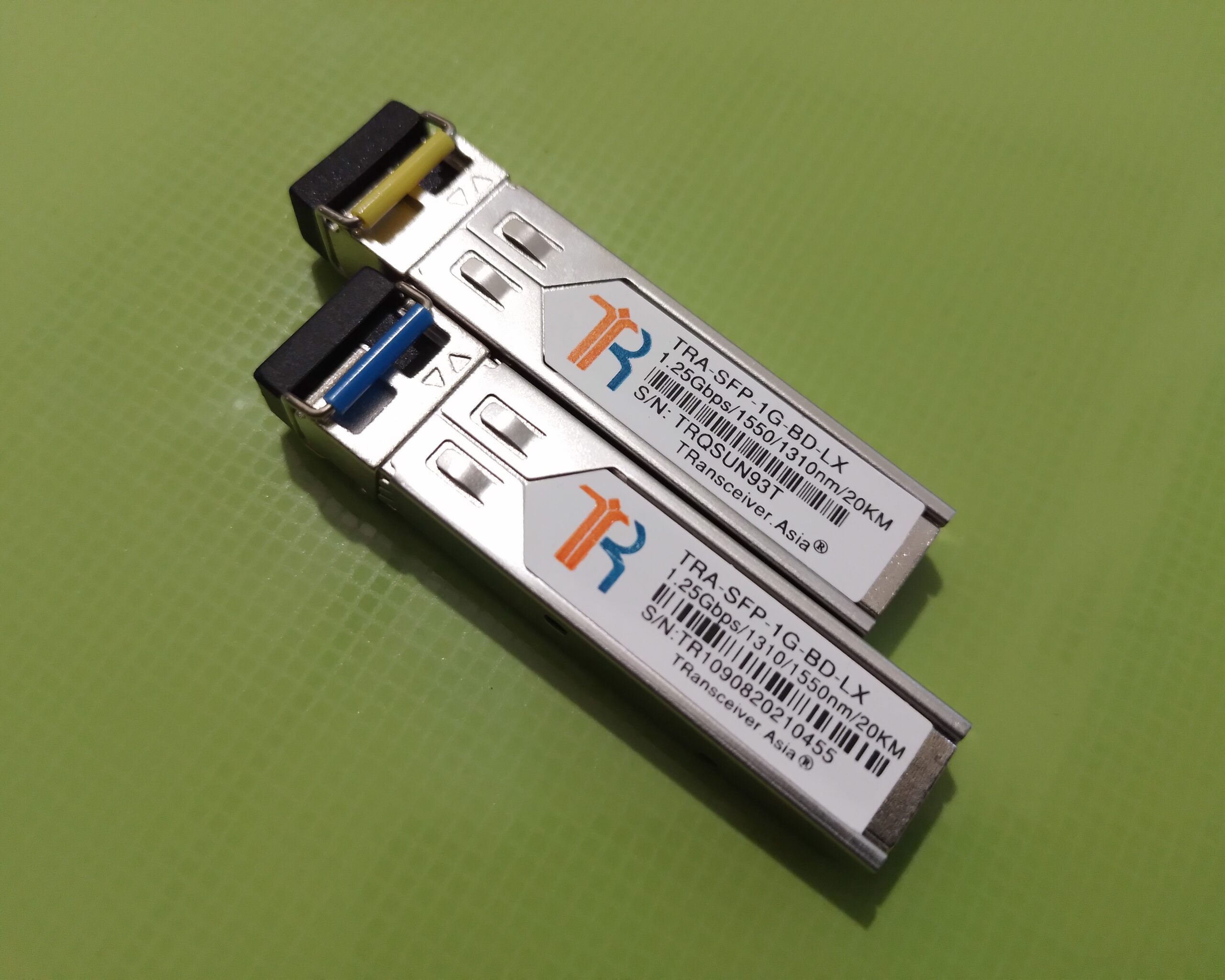

TRA-1G-BD-LX 20KM (A)

TRA-1G-BD-LX 20KM (B)

Instagram 1G-BD-LX 20km

TRA-SFP-1G-BD-LX

1000BASE-BX SFP 1310nm-TX/1550nm-RX 20km Module

PART NUMBER

TRA-SFP-1G-BD-LX

TRANSCEIVER DESCRIPTION

1000BASE-BX SFP 1310nm-TX/1550nm-RX 20km Module

📄 Datasheet-TRA-SFP-1G-BD-LX-20km

FORM FACTOR:

SFP

CONNECTOR / POLISH:

LC - Simplex UPC

INTERFACE:

Singlemode Bidi

COMPLIANCE CODE:

BiDi LX

OPERATING TEMPERATURE:

Standard

MODULATION:

NRZ

DISTANCE:

20 Km

TEMPERATURE RANGE:

0°C - 70°C

BANDWIDTH:

12.5 Mbit/s - 1.25 Gbit/s

DIGITAL DIAGNOSTIC MONITORING (DDM):

Yes, internally calibrated

POWER CONSUMPTION:

1 W

CDR:

None

SGMII:

No

INBUILT FEC:

No

POWERBUDGET (DB):

14 dB

TRANSMIT MIN/MAX PER LANE:

-8 dBm / -3 dBm

RECEIVER MIN/MAX PER LANE:

-22 dBm / -3 dBm (overload) @1G

WAVELENGTH TX (TYPICAL):

1310 nm

WAVELENGTH RX (TYPICAL):

1550 nm

LASER:

FP

RECEIVER TYPE:

PIN

MODULATION:

NRZ @1G

EXTINCTION RATIO:

9 dB

SUPPORTED PROTOCOLS:

1G Fibre Channel, Gigabit Ethernet
