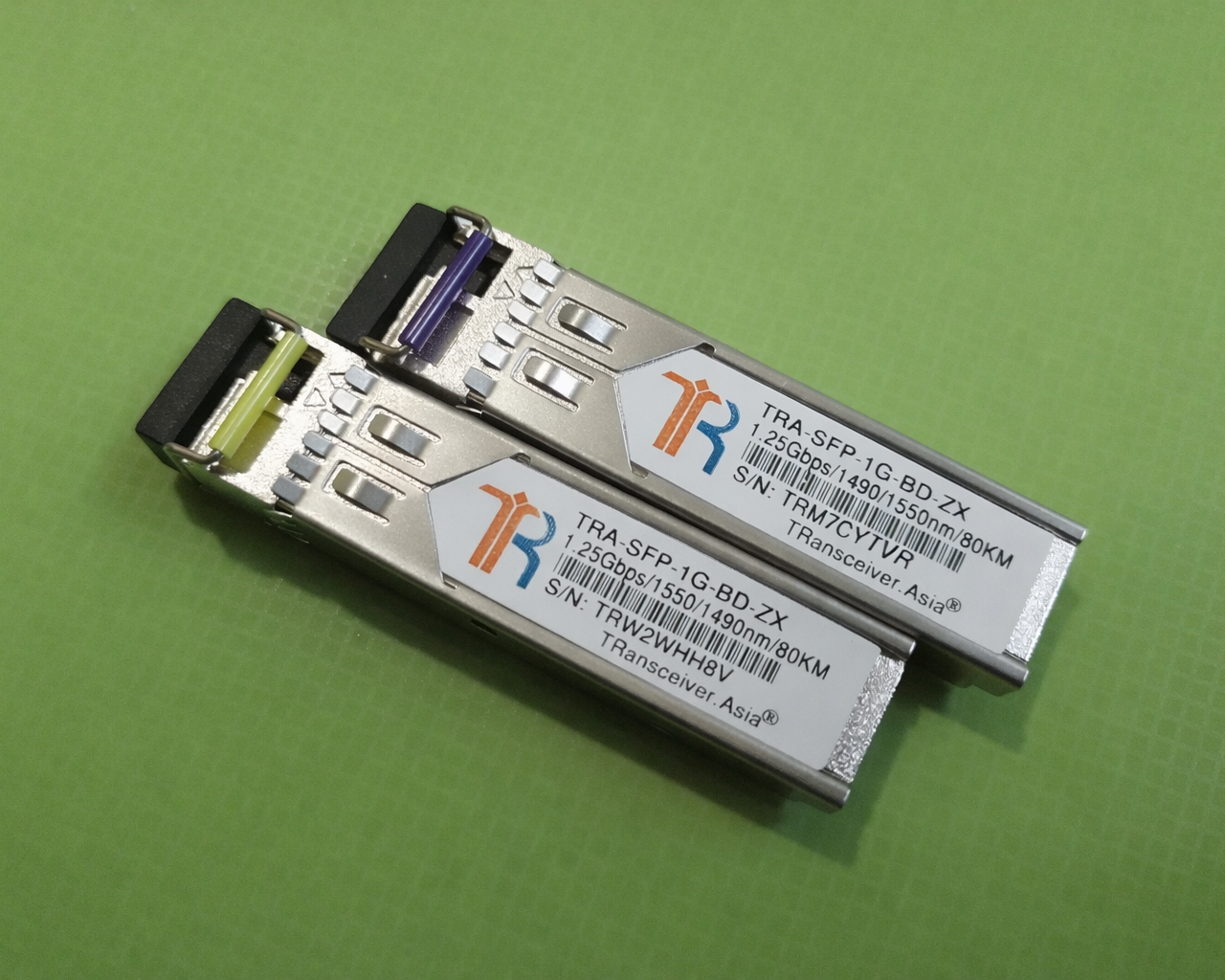

TRA-SFP-1G-BD-ZX
1000BASE-BX SFP 1490nm-TX/1550nm-RX 80km Module
- 1G SFP
- LC - Simplex
- 12.5 Mbit/s - 1.25 Gbit/s
- 0° C - 70° C
- Up to 80 Km
- Compliance Code: Bidi ZX
- ORDERING GUIDE
PART NUMBER
TRA-SFP-1G-BD-ZX
TRANSCEIVER DESCRIPTION
1000BASE-BX SFP 1490nm-TX/1550nm-RX 80km Module
- DATASHEET
- SPECIFICATIONS
FORM FACTOR:
SFP
CONNECTOR / POLISH:
LC - Simplex UPC
INTERFACE:
Singlemode Bidi
COMPLIANCE CODE:
Bidi ZX
OPERATING TEMPERATURE:
Standard
MODULATION:
NRZ
DISTANCE:
80 Km
TEMPERATURE RANGE:
0°C - 70°C
BANDWIDTH:
125 Mbit/s - 1.25 Gbit/s
DIGITAL DIAGNOSTIC MONITORING (DDM):
Yes, internally calibrated
POWER CONSUMPTION:
1 W
CDR:
None
SGMII:
No
INBUILT FEC:
No
POWERBUDGET (DB):
26 dB
TRANSMIT MIN/MAX PER LANE:
0 dBm / 5 dBm
RECEIVER MIN/MAX PER LANE:
-26 dBm / -3 dBm (overload) @1G
WAVELENGTH TX (TYPICAL):
1490 nm
WAVELENGTH RX (TYPICAL):
1550 nm
LASER:
DFB
RECEIVER TYPE:
PIN
MODULATION:
NRZ @1G
EXTINCTION RATIO:
9 dB
SUPPORTED PROTOCOLS:
1G Fibre Channel, Fast Ethernet, Gigabit Ethernet
- COMPATIBLE WITH
- Accedian Networks 7ST-002
- ADTRAN 1442180G1
- Advantech SFP-GS4-70KRX-LC
- Aruba Networks (ex. HP Network) J4860C
- Brocade / Ruckus E1MG-LHA-OM
- Ciena XCVR-080U55
- Cisco Systems GLC-BX-U
- Cyan OC-125G-L1S-W54-80KM
- Extreme 10057
- Fortinet FG-TRAN-LX
- Hirschmann SFP-FAST-BA SM+/LC EEC
- Huawei SFP-GE-LX-SM1550-BIDI
- Juniper SFP-1GE-LH
- Moxa SFP-1G40ALC
- Net Insight NPA0012-L101
- Nexans 88646073
- Nokia (ex. Alcatel-Lucent) 1AB350870001
- Nokia (ex. Alcatel-Lucent) 3FE25772AA
- Nokia (ex. Alcatel-Lucent) SFP-GIG-BX-U
- Perle PSFP-1000D-S1LC80D
- RAD SFP-22B
- Raisecom USFP-GB/SS548-DL
- TP-LINK TL-SM311LS
