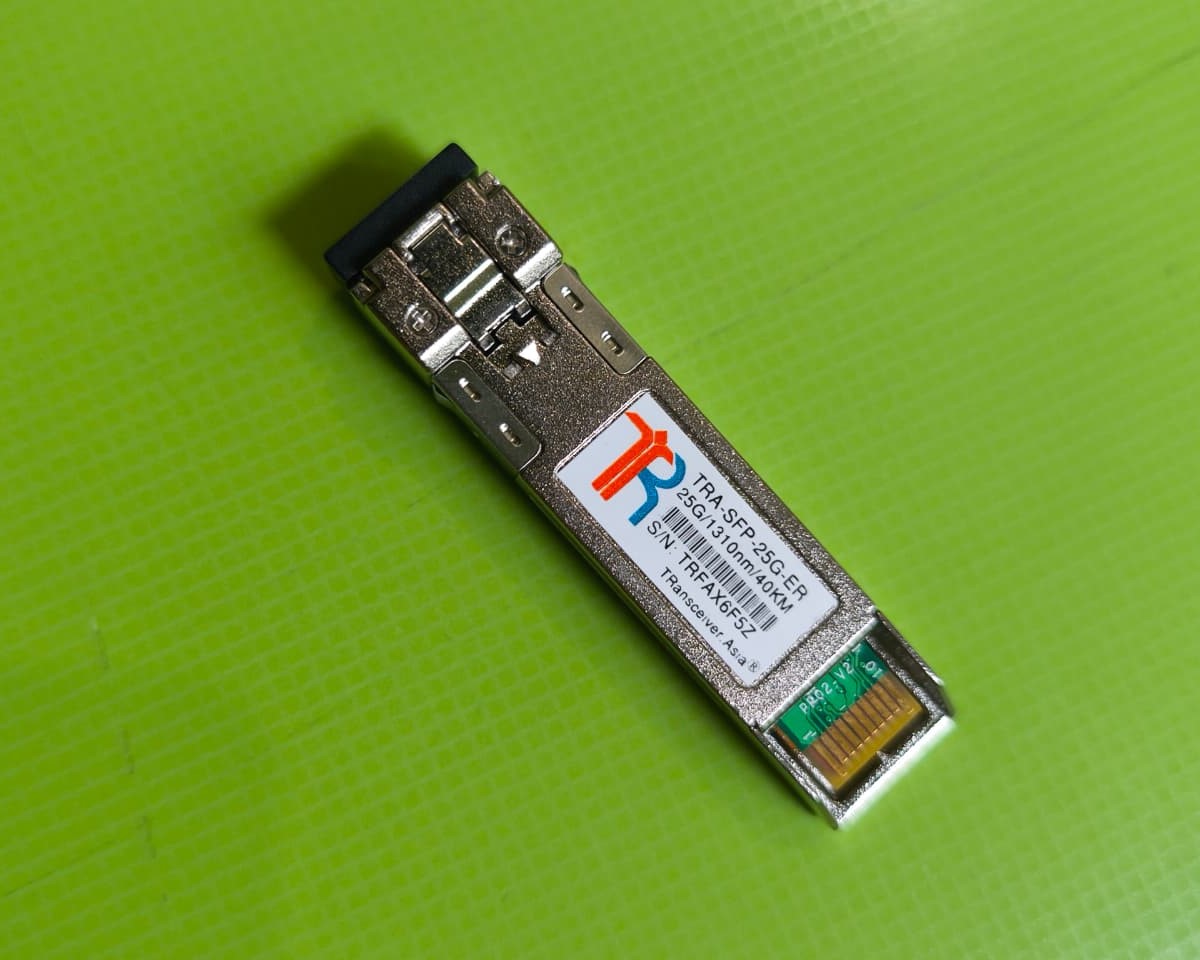

TRA-SFP-25G-ER
25GBASE-ER SFP28 1310nm 40km Module
- 25G SFP
- LC - Duplex
- 25.78 Gbit/s
- 0° C - 70° C
- Up to 40 Km
- Compliance Code: ER
- ORDERING GUIDE
PART NUMBER
TRA-SFP-25G-ER
TRANSCEIVER DESCRIPTION
25GBASE-ER SFP28 1310nm 40km Module
- DATASHEET
- SPECIFICATIONS
FORM FACTOR:
SFP28

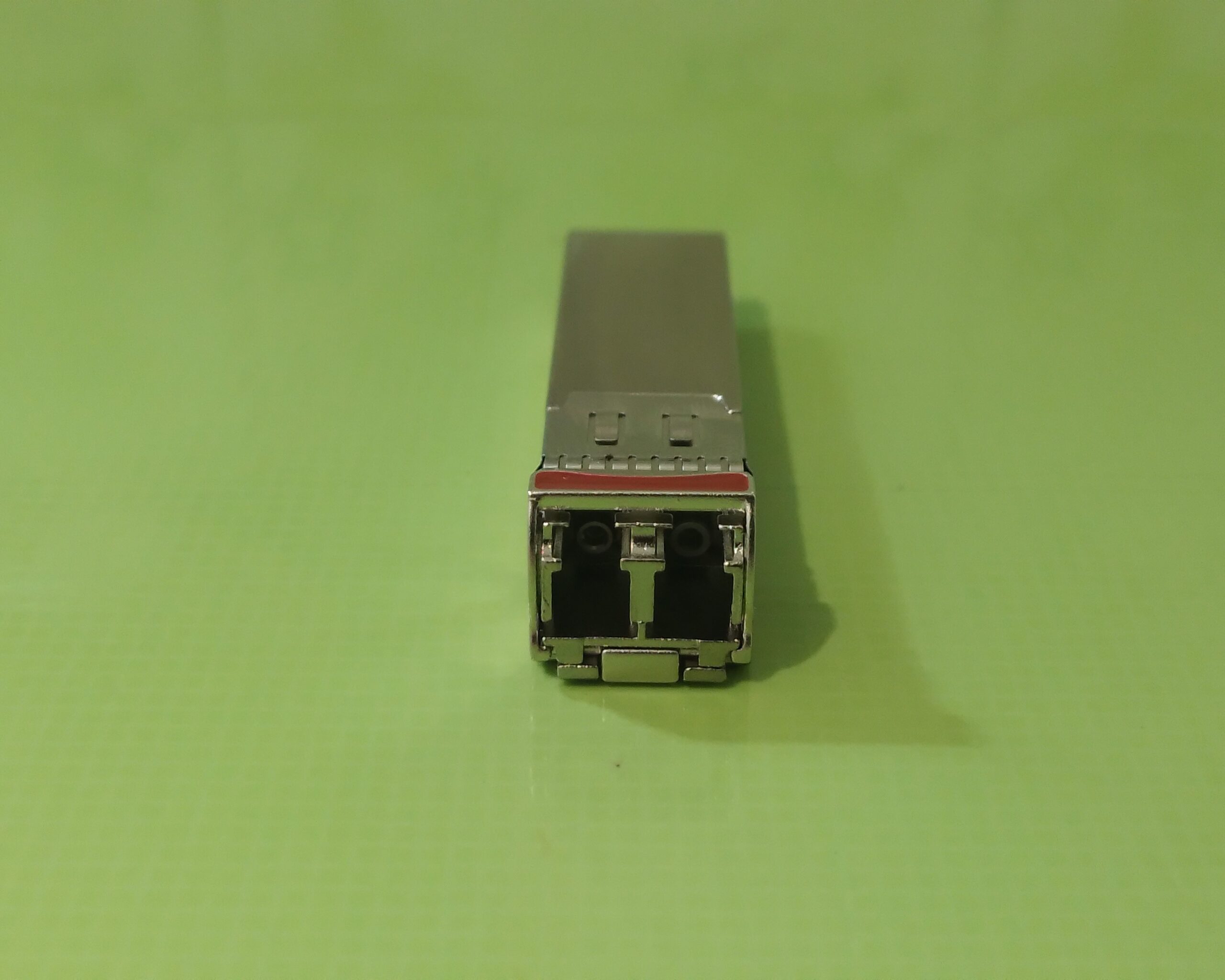

CONNECTOR / POLISH:
LC - Duplex PC
INTERFACE:
Singlemode
COMPLIANCE CODE:
ER
OPERATING TEMPERATURE:
Standard
MODULATION:
NRZ
DISTANCE:
40 Km
TEMPERATURE RANGE:
0°C - 70°C
BANDWIDTH:
25.78 Gbit/s
DIGITAL DIAGNOSTIC MONITORING (DDM):
Yes, internally calibrated
POWER CONSUMPTION:
1.8 W
CDR:
TX and RX
SGMII:
No
INBUILT FEC:
No
POWERBUDGET (DB):
18 dB
TRANSMIT MIN/MAX PER LANE:
-1 dBm / 6 dBm
RECEIVER MIN/MAX PER LANE:
-19 dBm / -4 dBm (overload) @25G
WAVELENGTH TX (TYPICAL):
1310 nm
WAVELENGTH TX (RANGE):
1295 - 1320 nm
WAVELENGTH RX (TYPICAL):
1310 nm
WAVELENGTH RX (RANGE):
1295 - 1325 nm
LASER:
EML
RECEIVER TYPE:
APD
MODULATION:
NRZ @25G
EXTINCTION RATIO:
2.7 dB
SUPPORTED PROTOCOLS:
25G Ethernet, 10G Ethernet
- COMPATIBLE WITH
- Cisco Systems SFP-10/25G-LR-S
- Extreme 25G-ER-SFP40KM
- Nokia (ex. Alcatel-Lucent) 3HE14835AA
