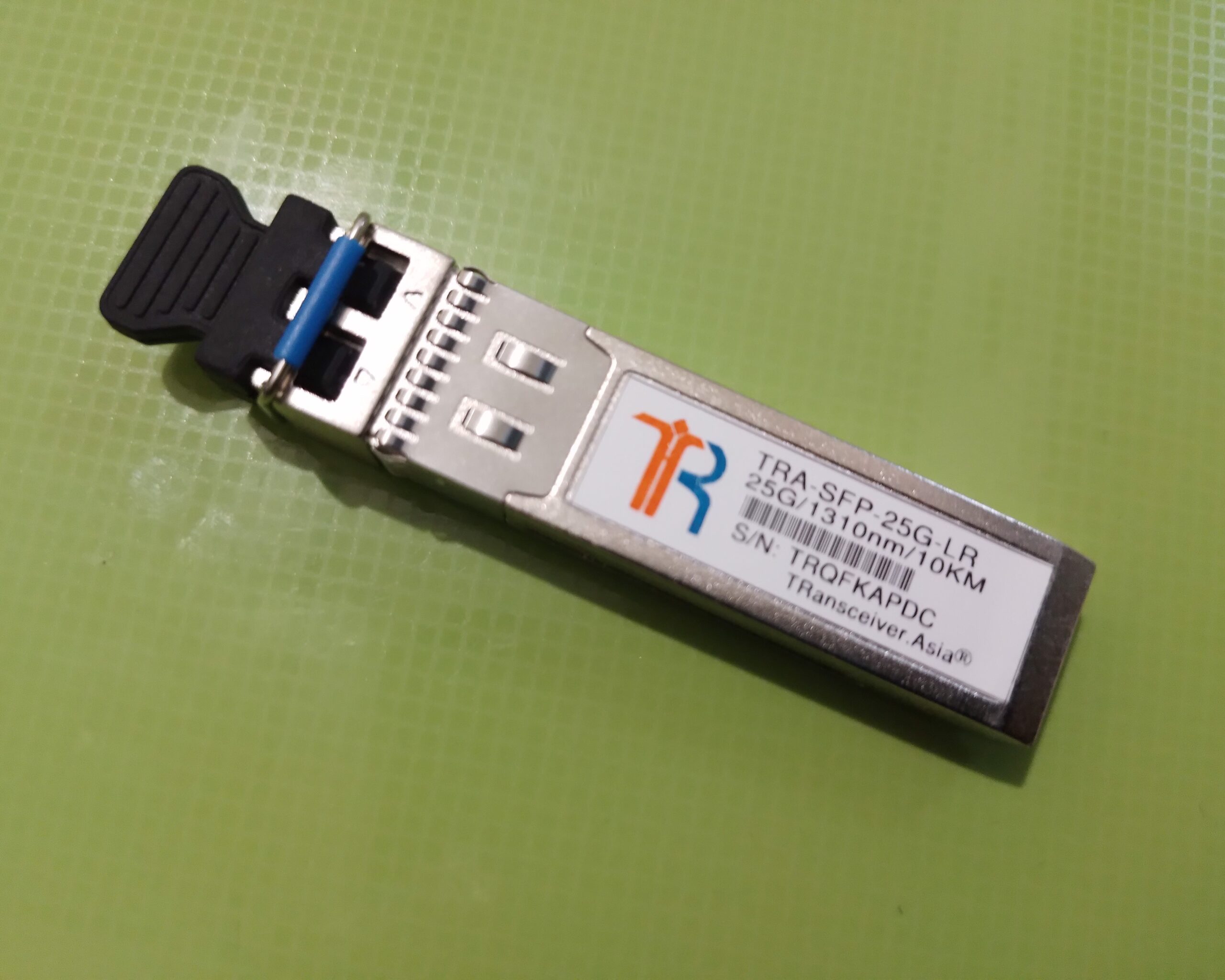

TRA-SFP-25G-LR(A)

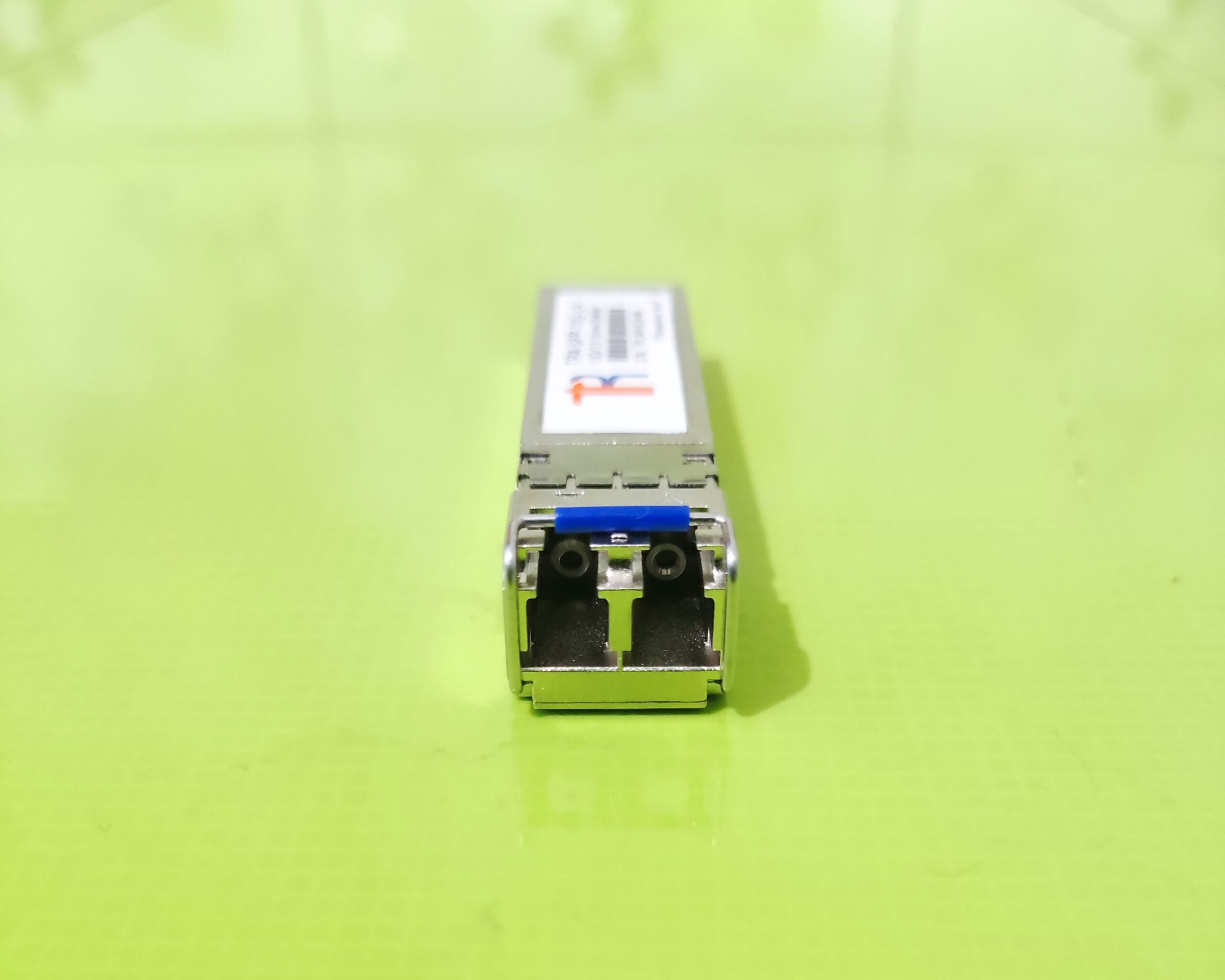

TRA-SFP-25G-LR(B)

Instagram 25G-LR

TRA-SFP-25G-LR

25GBASE-LR SFP28 1310nm 10km Module

PART NUMBER

TRA-SFP-25G-LR

TRANSCEIVER DESCRIPTION

25GBASE-LR SFP28 1310nm 10km Module

📄 Datasheet TRA-SFP-25G-LR

FORM FACTOR:

SFP28

CONNECTOR / POLISH:

LC - Duplex PC

INTERFACE:

Singlemode

COMPLIANCE CODE:

LR

OPERATING TEMPERATURE:

Standard

MODULATION:

NRZ

DISTANCE:

10Km

TEMPERATURE RANGE:

0°C - 70°C

BANDWIDTH:

25.78 Gbit/s

DIGITAL DIAGNOSTIC MONITORING (DDM):

Yes, internally calibrated

POWER CONSUMPTION:

1.5 W

CDR:

TX and RX

SGMII:

No

INBUILT FEC:

No

POWERBUDGET (DB):

5 dB

TRANSMIT MIN/MAX PER LANE:

-7 dBm / 2 dBm

RECEIVER MIN/MAX PER LANE:

-12 dBm / 2 dBm (overload) @25G

WAVELENGTH TX (TYPICAL):

1310 nm

WAVELENGTH TX (RANGE):

1295 - 1325 nm

WAVELENGTH RX (TYPICAL):

1310 nm

WAVELENGTH RX (RANGE):

1260 - 1355 nm

LASER:

DFB

RECEIVER TYPE:

PIN

MODULATION:

NRZ @25G

EXTINCTION RATIO:

3 dB

SUPPORTED PROTOCOLS:

25G Ethernet, 10G Ethernet
