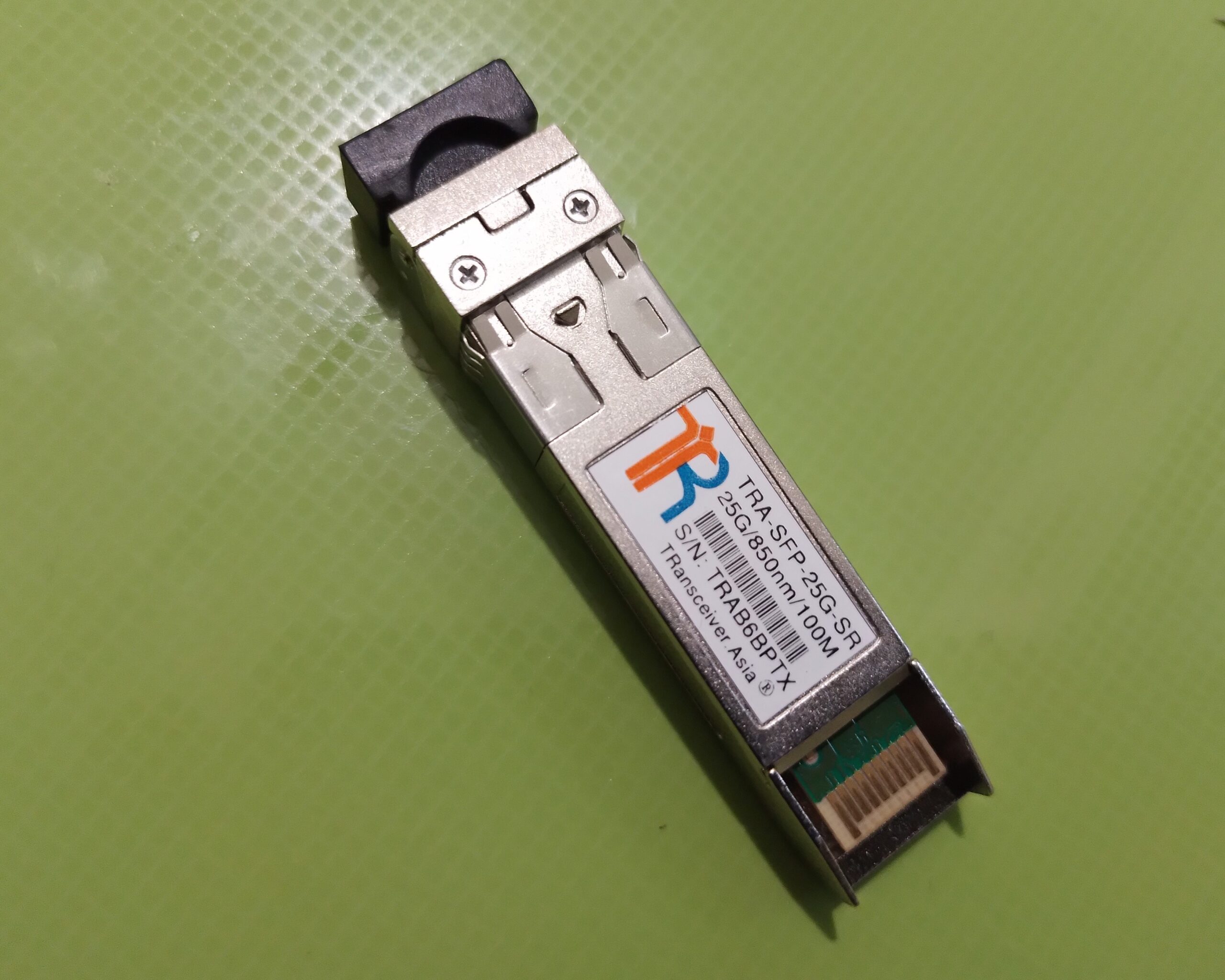

TRA-SFP-25G-SR (A)

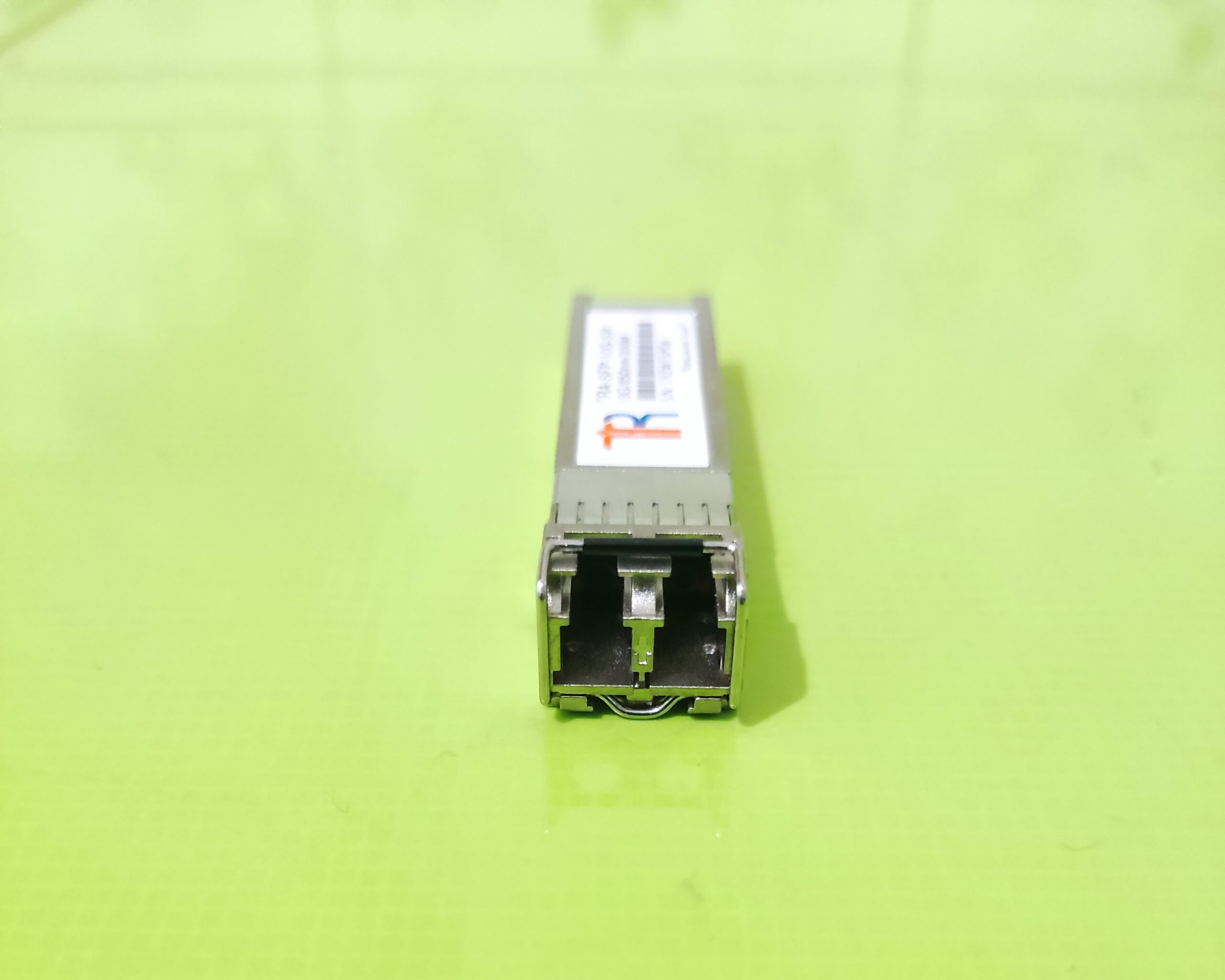

TRA-SFP-25G-SR (B)

Instagram 25G-SR

TRA-SFP-25G-SR

25GBASE-SR SFP28 850nm 100m Module

PART NUMBER

TRA-SFP-25G-SR

TRANSCEIVER DESCRIPTION

25GBASE-SR SFP28 850nm 100m Module,

📄 Datasheet TRA-SFP-25G-SR

FORM FACTOR:

SFP28

CONNECTOR / POLISH:

LC - Duplex PC

INTERFACE:

Multimode

COMPLIANCE CODE:

SR

OPERATING TEMPERATURE:

Standard

MODULATION:

NRZ

DISTANCE:

100 m

TEMPERATURE RANGE:

0°C - 70°C

BANDWIDTH:

25.78 Gbit/s

DIGITAL DIAGNOSTIC MONITORING (DDM):

Yes, internally calibrated

POWER CONSUMPTION:

1.2 W

CDR:

TX and RX

SGMII:

No

INBUILT FEC:

No

POWERBUDGET (DB):

1.6 dB

TRANSMIT MIN/MAX PER LANE:

-8.4 dBm / 2.4 dBm

RECEIVER MIN/MAX PER LANE:

-10 dBm / 3.5 dBm (overload) @25G

WAVELENGTH TX (TYPICAL):

850 nm

WAVELENGTH TX (RANGE):

840 - 860 nm

WAVELENGTH RX (TYPICAL):

4x 850 nm

WAVELENGTH TX (RANGE):

840 - 860 nm

LASER:

VCSEL

RECEIVER TYPE:

PIN

MODULATION:

NRZ @25G

EXTINCTION RATIO:

2 dB

SUPPORTED PROTOCOLS:

25G Ethernet, 10G Ethernet
