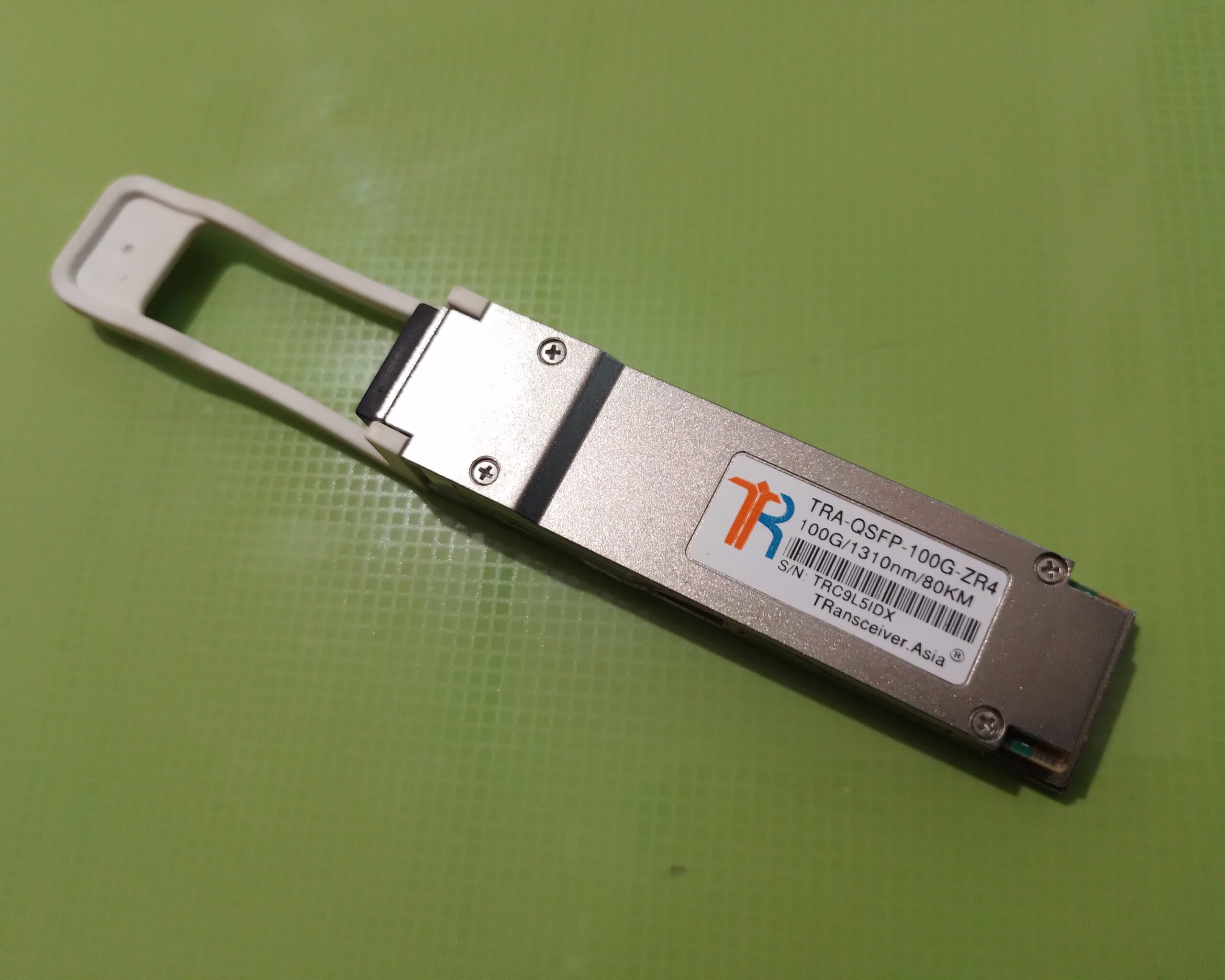

TRA-QSFP-100G-ZR4

100GBASE-ZR4 QSFP28 1310nm 80km Module, Singlemode LC Connector
TRA-QSFP-100G-ZR4
QSFP 100G
ZR4
  • 100G QSFP
  • ZR4
  • 103.12 Gbit/s
  • 0° C - 70° C
  • Up to 80km
  • Compliance Code: ZR4
λ int.Mux
80km
↓↑ 100G
LC
  • ORDERING GUIDE
PART NUMBER
TRA-QSFP-100G-ZR4
TRANSCEIVER DESCRIPTION
100GBASE-ZR4 QSFP28 1310nm 80km Module, Singlemode LC Connector
  • DATASHEET

📄 Datasheet TRA-QSFP-100G-ZR4

  • SPECIFICATIONS
FORM FACTOR:
QSFP
CONNECTOR / POLISH:
LC
INTERFACE:
Singlemode
COMPLIANCE CODE:
ZR4
OPERATING TEMPERATURE:
Standard
MODULATION:
NRZ
DISTANCE:
80km
TEMPERATURE RANGE:
0°C - 70°C
LANE COUNT:
4x (Tx/Rx)
BANDWIDTH:
103.12 Gbit/s
BANDWIDTH PER LANE:
25.78 Gbit/s
DIGITAL DIAGNOSTIC MONITORING (DDM):
Yes, internally calibrated
POWER CONSUMPTION:
5.5 W
CDR:
TX and RX
SGMII:
No
INBUILT FEC:
No
POWERBUDGET (DB):
28.9 dB
TRANSMIT MIN/MAX PER LANE:
2 dBm / 6.5 dBm
RECEIVER MIN/MAX PER LANE:
-26.9 dBm / 2 dBm (overload) @100G
WAVELENGTH TX (TYPICAL):
1295.6 nm, 1300 nm, 1304.6 nm, 1309.1 nm
WAVELENGTH RX (TYPICAL):
1295.6 nm, 1300 nm, 1304.6 nm, 1309.1 nm
LASER:
EML
RECEIVER TYPE:
PIN
MODULATION:
NRZ @100G
EXTINCTION RATIO:
8 dB
SUPPORTED PROTOCOLS:
100G Ethernet
  • COMPATIBLE WITH
  • • MSA Standard
    • Arista 3rd_Party QSFP-100G-ERL4
    • Arista QSFP-100G-ERL4
    • Aruba Networks (ex. HP Network) JL310A
    • Cisco Systems QSFP-100G-ER4L-S
    • Cisco Systems QSFP-100G-ZR4-S
    • Edge Core ET7402-ZR4
    • Extreme 100G-LR4-QSFP10KM
    • Huawei QSFP-100G-ER4-Lite
    • Juniper QSFP-100G-ER4L
    • Nokia (ex. Alcatel-Lucent) 3AL82074AA
    • Nokia (ex. Alcatel-Lucent) 3AL82152AA
    • Nokia (ex. Alcatel-Lucent) 3HE10550AA
    • Nokia (ex. Alcatel-Lucent) 3HE11239AA
    • Nokia (ex. Alcatel-Lucent) 3HE16558AA
    • RAD QSFP28-5D
    • Any Brands, Please Call
